SFV20R-2STBE1HLF
ActiveAmphenol ICC (FCI)

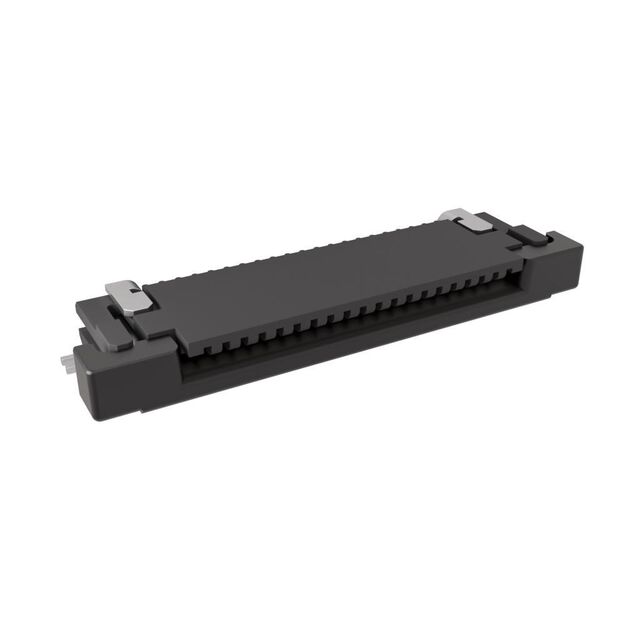

CONN FFC FPC TOP 20POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFV20R-2STBE1HLF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 20POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFV20R-2STBE1HLF |
|---|---|
| Actuator Color | Beige |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 1.8 mm |
| Height Above Board | 0.071 in |
| Housing Color | Black |
| Housing Material | Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 20 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
SFV20R Series
| Part | Height Above Board | Height Above Board | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Contact Material | Connector/Contact Type | Mounting Type | Locking Feature | FFC, FCB Thickness | Actuator Material | Contact Finish | Actuator Color | Housing Material | Material Flammability Rating | Mating Cycles | Housing Color | Termination | Flat Flex Type | Number of Positions | Cable End Type | Voltage Rating | Features | FFC, FCB Thickness [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 1.8 mm | 0.071 in | 0.5 A | 105 ░C | -55 °C | 0.5 mm | 0.02 in | Phosphor Bronze | Contacts Top | Surface Mount Right Angle | Slide Lock | 0.3 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Gold | Beige | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | 20 | Black | Solder | FFC FPC | 20 | Tapered | 50 V | ||
Amphenol ICC (FCI) | 1.8 mm | 0.071 in | 0.5 A | 105 ░C | -55 °C | 0.5 mm | 0.02 in | Phosphor Bronze | Contacts Top | Surface Mount Right Angle | Slide Lock | 0.33 mm | Polyphenylene Sulfide (PPS) Glass Filled | Tin | Black | Polyamide (PA) Nylon Glass Filled | UL94 V-0 | Black | Solder | FPC | 20 | Notched | 50 V | Solder Retention Zero Insertion Force (ZIF) | ||
Amphenol ICC (FCI) | 1.8 mm | 0.071 in | 0.5 A | 105 ░C | -55 °C | 0.5 mm | 0.02 in | Phosphor Bronze | Contacts Top | Surface Mount Right Angle | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | Tin | Brown | Polyamide (PA) Nylon Glass Filled | UL94 V-0 | Black | Solder | FFC FPC | 20 | Straight Tapered | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | 1.8 mm | 0.071 in | 0.5 mm | 0.02 in | Contacts Bottom | Surface Mount Right Angle | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Polyamide (PA) Nylon Glass Filled Halogen Free | Solder | FFC FPC | 20 | Straight Tapered | 0.3 mm 0.33 mm | ||||||||||||
Amphenol ICC (FCI) | 1.8 mm | 0.071 in | 0.5 A | 105 ░C | -55 °C | 0.5 mm | 0.02 in | Phosphor Bronze | Contacts Bottom | Surface Mount Right Angle | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Gold | Black | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | 20 | Black | Solder | FFC FPC | 20 | Straight Tapered | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm 0.33 mm | |
Amphenol ICC (FCI) | 1.8 mm | 0.071 in | 0.5 A | 105 ░C | -55 °C | 0.5 mm | 0.02 in | Phosphor Bronze | Contacts Top | Surface Mount Right Angle | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | Tin Alloy | Brown | Polyamide (PA) Nylon Glass Filled | UL94 V-0 | 20 | Black | Solder | FFC FPC | 20 | Straight Tapered | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm 0.33 mm | |
Amphenol ICC (FCI) | 1.8 mm | 0.071 in | 0.5 A | 105 ░C | -55 °C | 0.5 mm | 0.02 in | Phosphor Bronze | Contacts Bottom | Surface Mount Right Angle | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | Tin Alloy | Brown | Polyamide (PA) Nylon Glass Filled | UL94 V-0 | 20 | Black | Solder | FFC FPC | 20 | Straight Tapered | 50 V | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm 0.33 mm | |
Amphenol ICC (FCI) | 1.8 mm | 0.071 in | 0.5 A | 105 ░C | -55 °C | 0.5 mm | 0.02 in | Phosphor Bronze | Contacts Bottom | Surface Mount Right Angle | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Gold | Brown | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | 20 | Black | Solder | FPC | 20 | Notched | 50 V | 0.3 mm 0.33 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.72 | |
| 10 | $ 0.55 | |||
| 25 | $ 0.49 | |||
| 50 | $ 0.45 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.72 | ||
| 10 | $ 0.55 | |||
| 25 | $ 0.49 | |||
| 50 | $ 0.45 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 3000 | $ 0.29 | ||
| 6000 | $ 0.27 | |||
| 9000 | $ 0.26 | |||
| 15000 | $ 0.25 | |||
| 21000 | $ 0.24 | |||
| 30000 | $ 0.24 | |||
Description
General part information
SFV20R Series
20 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
