SFV20R-3STBE1HLF

Active

Amphenol ICC (FCI)

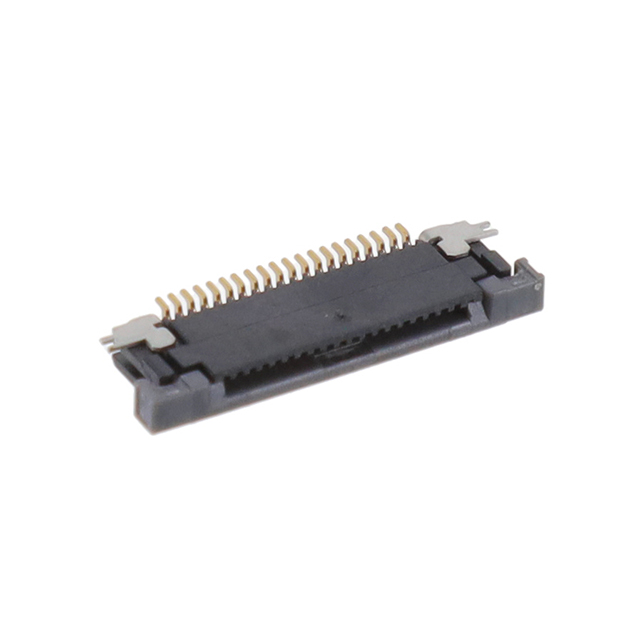

CONN FPC BOTTOM 20POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFV8R-4STBE1HLF Datasheet +1

SFV20R-3STBE1HLF

Active

Amphenol ICC (FCI)

CONN FPC BOTTOM 20POS 0.5MM R/A

Deep-Dive with AI

DocumentsSFV8R-4STBE1HLF Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFV20R-3STBE1HLF

Actuator Color	Brown
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Cable End Type	Notched
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC
Height Above Board	1.8 mm
Height Above Board	0.071 in
Housing Color	Black
Housing Material	Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	20
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

SFV20R Series

Part	Height Above Board	Height Above Board	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Contact Material	Connector/Contact Type	Mounting Type	Locking Feature	FFC, FCB Thickness	Actuator Material	Contact Finish	Actuator Color	Housing Material	Material Flammability Rating	Mating Cycles	Housing Color	Termination	Flat Flex Type	Number of Positions	Cable End Type	Voltage Rating	Features	FFC, FCB Thickness [z]
Amphenol ICC (FCI) SFV20R-2STBE1HLF	1.8 mm	0.071 in	0.5 A	105 ░C	-55 °C	0.5 mm	0.02 in	Phosphor Bronze	Contacts Top	Surface Mount Right Angle	Slide Lock	0.3 mm	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Gold	Beige	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	UL94 V-0	20	Black	Solder	FFC FPC	20	Tapered	50 V
Amphenol ICC (FCI) SFV20R-4STE1LF	1.8 mm	0.071 in	0.5 A	105 ░C	-55 °C	0.5 mm	0.02 in	Phosphor Bronze	Contacts Top	Surface Mount Right Angle	Slide Lock	0.33 mm	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Black	Polyamide (PA) Nylon Glass Filled	UL94 V-0		Black	Solder	FPC	20	Notched	50 V	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFV20R-2STE1LF	1.8 mm	0.071 in	0.5 A	105 ░C	-55 °C	0.5 mm	0.02 in	Phosphor Bronze	Contacts Top	Surface Mount Right Angle	Slide Lock		Polyphenylene Sulfide (PPS) Glass Filled	Tin	Brown	Polyamide (PA) Nylon Glass Filled	UL94 V-0		Black	Solder	FFC FPC	20	Straight Tapered	50 V	Solder Retention Zero Insertion Force (ZIF)	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV20R-1STAE9HLF	1.8 mm	0.071 in				0.5 mm	0.02 in		Contacts Bottom	Surface Mount Right Angle	Slide Lock		Polyphenylene Sulfide (PPS) Glass Filled Halogen Free			Polyamide (PA) Nylon Glass Filled Halogen Free				Solder	FFC FPC	20	Straight Tapered			0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV20R-1STBE5HLF	1.8 mm	0.071 in	0.5 A	105 ░C	-55 °C	0.5 mm	0.02 in	Phosphor Bronze	Contacts Bottom	Surface Mount Right Angle	Slide Lock		Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Gold	Black	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	UL94 V-0	20	Black	Solder	FFC FPC	20	Straight Tapered	50 V	Solder Retention Zero Insertion Force (ZIF)	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV20R-2STE1	1.8 mm	0.071 in	0.5 A	105 ░C	-55 °C	0.5 mm	0.02 in	Phosphor Bronze	Contacts Top	Surface Mount Right Angle	Slide Lock		Polyphenylene Sulfide (PPS) Glass Filled	Tin Alloy	Brown	Polyamide (PA) Nylon Glass Filled	UL94 V-0	20	Black	Solder	FFC FPC	20	Straight Tapered	50 V	Solder Retention Zero Insertion Force (ZIF)	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV20R-1STE1	1.8 mm	0.071 in	0.5 A	105 ░C	-55 °C	0.5 mm	0.02 in	Phosphor Bronze	Contacts Bottom	Surface Mount Right Angle	Slide Lock		Polyphenylene Sulfide (PPS) Glass Filled	Tin Alloy	Brown	Polyamide (PA) Nylon Glass Filled	UL94 V-0	20	Black	Solder	FFC FPC	20	Straight Tapered	50 V	Solder Retention Zero Insertion Force (ZIF)	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV20R-3STBE1HLF	1.8 mm	0.071 in	0.5 A	105 ░C	-55 °C	0.5 mm	0.02 in	Phosphor Bronze	Contacts Bottom	Surface Mount Right Angle	Slide Lock		Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Gold	Brown	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	UL94 V-0	20	Black	Solder	FPC	20	Notched	50 V		0.3 mm 0.33 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.78
		10	$ 0.58
		25	$ 0.47
		50	$ 0.43
		100	$ 0.40
		250	$ 0.38
		500	$ 0.37
		1000	$ 0.33
	Digi-Reel®	1	$ 0.78
		10	$ 0.58
		25	$ 0.47
		50	$ 0.43
		100	$ 0.40
		250	$ 0.38
		500	$ 0.37
		1000	$ 0.33
	Tape & Reel (TR)	3000	$ 0.26

Description

General part information

SFV20R Series

20 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle

SFV20R-3STBE1HLF

Deep-Dive with AI

SFV20R-3STBE1HLF

Deep-Dive with AI

Technical Specifications

SFV20R Series

Pricing

Description

SFV20R Series

Documents

SFV8R-4STBE1HLF

Datasheet

fci basics ffc fpc productpresentation Other Related Document

SFV20R Series
