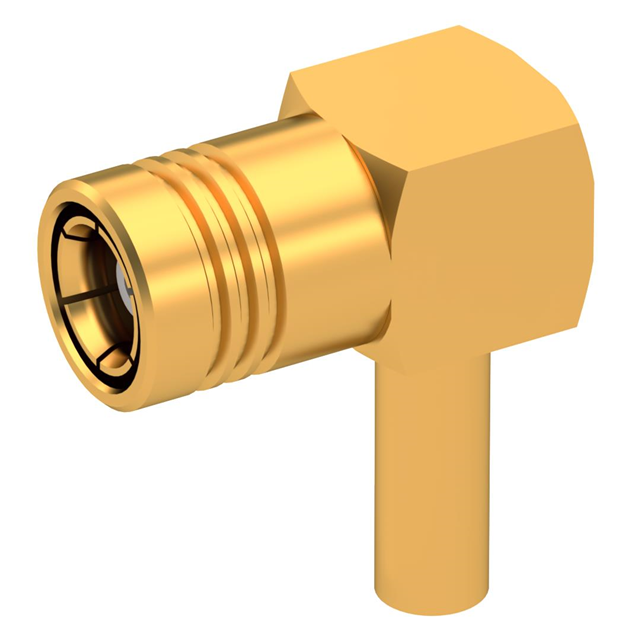

SMB F RA F CR 2/50 C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB F RA F CR 2/50 C100

Technical Specifications

Parameters and characteristics for this part

Specification	R114183000

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Includes	Contact Termination	Impedance	Frequency - Max [Max]	Body Material	Connector Type	Housing Color	Number of Ports	Body Finish	Mating Cycles	Dielectric Material	Connector Style	Center Contact Material	Shield Termination	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Voltage Rating	Mounting Type	Cable Group	Cable Group
Radiall USA, Inc. R114183000	1 Connector 1 End Cap	Crimp	50 Ohms	4 GHz	Brass	Female Socket Plug	Gold	1	Gold	500	Polytetrafluoroethylene (PTFE)	SMB	Beryllium Copper	Crimp	Snap-On	-65 ░C	165 °C	Gold	250 VDC	Free Hanging (In-Line) Right Angle	196	RG-178
Radiall USA, Inc. R114182000	1 Connector 1 End Cap	Crimp	50 Ohms	4 GHz	Brass	Female Socket Plug	Gold	1	Gold	500	Polytetrafluoroethylene (PTFE)	SMB	Beryllium Copper	Crimp	Snap-On	-65 ░C	165 °C	Gold	335 V	Free Hanging (In-Line) Right Angle		RD-316

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp
