R114182000

Active

SMB F RA CR RGK02252D C100

Active

SMB F RA CR RGK02252D C100

Description

General part information

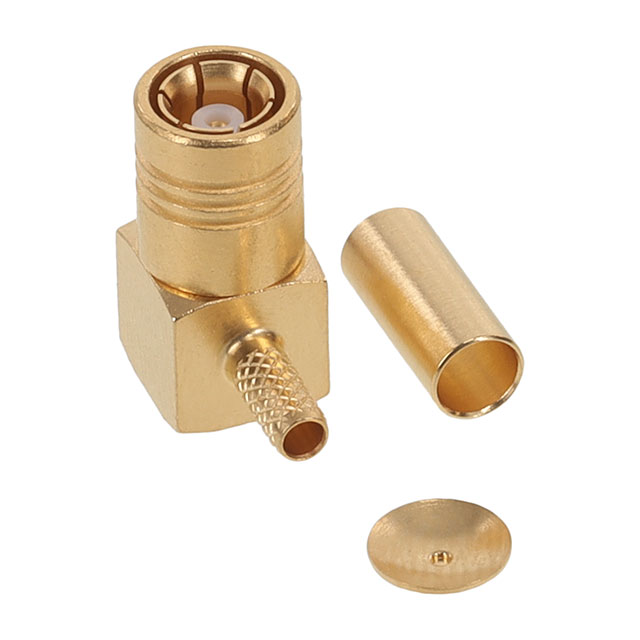

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp

Parameters and characteristics for this part

Specification	R114182000

Body Finish	Gold
Body Material	Brass
Cable Group	RD-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	4 GHz
Housing Color	Gold
Impedance	50 Ohm
Includes	Connector, End Cap
Includes Total Count	2 pcs
Mating Cycles	500 cycles
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Cable Group	Connector Type	Impedance	Fastening Type	Number of Ports	Frequency - Max	Contact Termination	Connector Style	Mounting Type	Shield Termination	Housing Color	Center Contact Material	Body Finish	Body Material	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Voltage Rating	Includes Total Count	Includes	Dielectric Material
Radiall USA, Inc. R114183000	196 RG-178	Female Socket Plug	50 Ohm	Snap-On	1	4 GHz	Crimp	SMB	Free Hanging (In-Line) Right Angle	Crimp	Gold	Beryllium Copper	Gold	Brass	Gold	-65 °C	165 °C	500 cycles	250 V	2 pcs	Connector End Cap	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R114182000	RD-316	Female Socket Plug	50 Ohm	Snap-On	1	4 GHz	Crimp	SMB	Free Hanging (In-Line) Right Angle	Crimp	Gold	Beryllium Copper	Gold	Brass	Gold	-65 °C	165 °C	500 cycles	335 V	2 pcs	Connector End Cap	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R114186000	179 316 RG-174	Female Socket Plug	50 Ohm	Snap-On	1	4 GHz	Crimp	SMB	Free Hanging (In-Line) Right Angle	Crimp	Gold	Beryllium Copper	Gold	Brass	Gold	-65 °C	165 °C	500 cycles	335 V	2 pcs	Connector End Cap	Polytetrafluoroethylene (PTFE)
