BQ24715EVM-115
ActiveEVALUATION BOARD FOR BQ24715
Deep-Dive with AI
Search across all available documentation for this part.

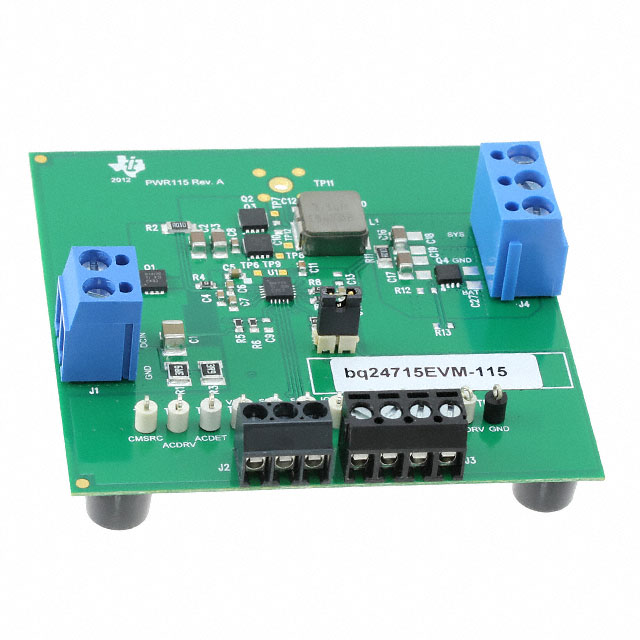

BQ24715EVM-115
ActiveEVALUATION BOARD FOR BQ24715
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24715EVM-115 | BQ24715 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion |
| Function | Battery Charger | Battery Charger |
| Interface | - | SMBus |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 2 |
| Number of Cells | - | 3 |
| Package / Case | - | 20-VFQFN Exposed Pad |
| Supplied Contents | Board(s) | Board(s) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24715 | BQ24715 |
| Voltage - Supply (Max) | - | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 118.80 | |
BQ24715 Series
SMBus 2-3 cell NVDC Buck battery charge controller with N-Channel MOSFET selectors
| Part | Battery Chemistry | Interface | Number of Cells [Min] [custom] | Number of Cells [Max] [custom] | Voltage - Supply (Max) [Max] | Package / Case | Mounting Type | Utilized IC / Part | Supplied Contents | Function | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24715RGRT | Lithium Ion | SMBus | 2 | 3 | 24 V | 20-VFQFN Exposed Pad | Surface Mount | ||||
Texas Instruments BQ24715RGRR | Lithium Ion | SMBus | 2 | 3 | 24 V | 20-VFQFN Exposed Pad | Surface Mount | ||||
Texas Instruments BQ24715EVM-115 | BQ24715 | Board(s) | Battery Charger | Power Management |
Description
General part information
BQ24715 Series
The bq24715 is a NVDC-1 synchronous battery charge controller with low quiescent current, high light load efficiency for 2S or 3S Li-ion battery charging applications, offering low component count.
