Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24610EVM-603 | BQ24610 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 2.1 V |
| Charge Current - Max | - | 10 A |
| Contents | Board(s) | Board(s) |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Current, Over Voltage, Short Circuit, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 6 |
| Number of Cells | - | 1 |
| Operating Temperature | - | 0 °C |
| Operating Temperature | - | 125 ¯C |
| Package / Case | - | 24-VFQFN Exposed Pad |
| Primary Attributes | Li-Ion / Li-Pol (8 Cells) | Li-Ion / Li-Pol (8 Cells), Multi Cell-Li-ion / Li-Polymer |
| Primary Attributes | - | 26 V |
| Programmable Features | - | Current |
| Secondary Attributes | - | On-Board LEDs |
| Secondary Attributes [Max] | 60 V | 60 V |
| Secondary Attributes [Min] | 33 V | 33 V |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-VQFN (4x4) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24610 | BQ24610 |
| Voltage - Supply (Max) | - | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BQ24610 Series
Standalone 1-6 cell Buck battery charge controller with 5V-28V input
| Part | Current - Charging | Charge Current - Max [Max] | Battery Chemistry | Battery Pack Voltage | Supplier Device Package | Voltage - Supply (Max) [Max] | Programmable Features | Package / Case | Number of Cells [Max] [custom] | Number of Cells [Min] [custom] | Fault Protection | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Type | Supplied Contents | Primary Attributes | Function | Secondary Attributes [Max] | Secondary Attributes [Min] | Utilized IC / Part | Contents | Embedded | Primary Attributes | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24610RGER | Constant - Programmable | 10 A | Lithium Ion/Polymer | 2.1 V | 24-VQFN (4x4) | 28 V | Current | 24-VFQFN Exposed Pad | 6 | 1 | Over Current, Over Temperature, Over Voltage, Short Circuit | Surface Mount | 0 °C | 125 ¯C | |||||||||||

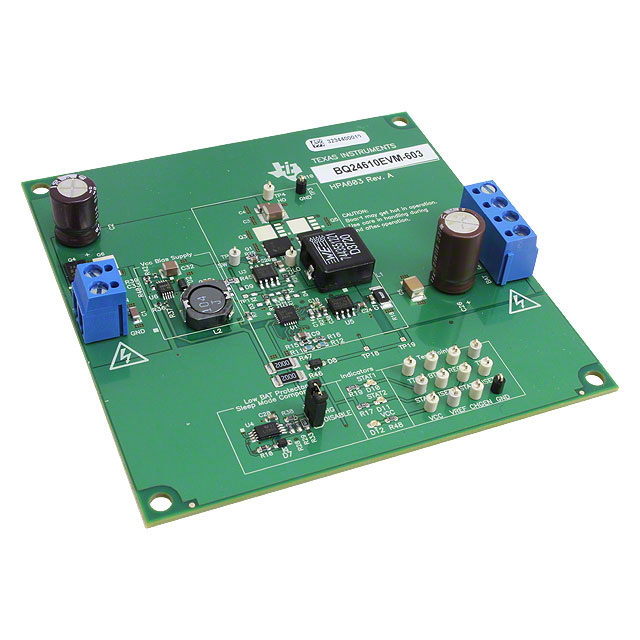

Texas Instruments BQ24610EVM-603 | Power Management | Board(s) | Li-Ion / Li-Pol (8 Cells) | Battery Charger | 60 V | 33 V | BQ24610 | Board(s) | |||||||||||||||||
Texas Instruments BQ24610EVM | Power Management | Board(s) | Multi Cell-Li-ion / Li-Polymer | Battery Charger | BQ24610 | Board(s) | 26 V | On-Board LEDs |
Description
General part information
BQ24610 Series
The BQ2461x is a highly integrated Li-ion, Li-polymer or Lead-acid switched-mode battery charge controller. The device offers a constant-frequency synchronous switching PWM controller with high-accuracy charge current and voltage regulation, charge preconditioning, termination, adapter current regulation, and charge status monitoring.
The BQ2461x charges the battery in three phases: preconditioning, constant current, and constant voltage.
Charge is terminated when the current reaches a minimum user-selectable level. A programmable charge timer provides a safety backup. The BQ2461x automatically restarts the charge cycle if the battery voltage falls below an internal threshold, and enters a low quiescent current sleep mode when the input voltage falls below the battery voltage.
