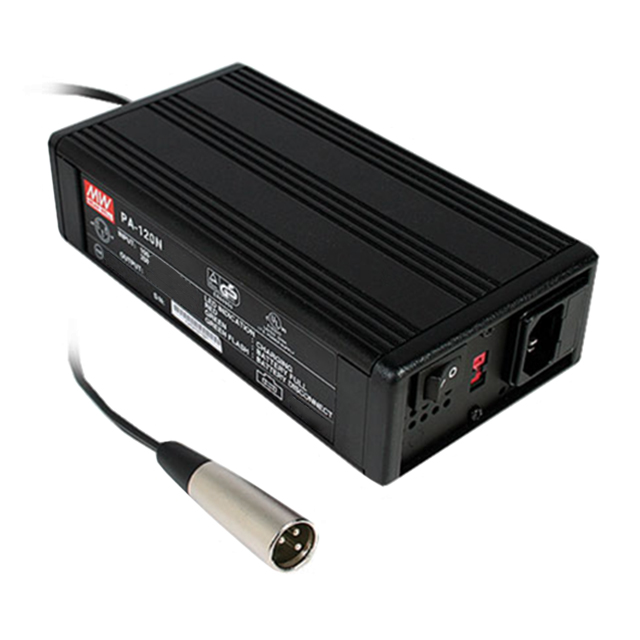

PA-120N-27C

Obsolete

MEAN WELL USA Inc.

BATT CHARGER ENCLOSED 27.6V 4.3A

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

BATT CHARGER ENCLOSED 27.6V 4.3A

Technical Specifications

Parameters and characteristics for this part

Part	Number of Cells	Charge Current - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Battery Cell Size	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Battery Chemistry	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Power - Max [Max]	Features	Weight	Termination Style	Voltage - Nominal	Size / Dimension [y]	Size / Dimension [z]
MEAN WELL USA Inc. PA-120N-27C	1	4.3 A	-10 °C	45 °C	Enclosed	24 V	Desktop	49 mm	180 mm	96 mm	7.09 in	3.78 in	1.93 in	Lead Acid	CB cULus GS	88 VAC 176 VAC	132 VAC 264 VAC	118.68 W	LED Indicator	1100 g	XLR 3 Pin	27.6 V
MEAN WELL USA Inc. PA-120N-13P	1	7.2 A	-10 °C	45 °C	Open Frame	12 V	Chassis Mount		144 mm		5.67 in	3.54 in	1.3 "	Lead Acid	CB CE cULus GS	88 VAC 176 VAC	132 VAC 264 VAC	99.36 W	LED Indicator	1100 g	Rectangular Connector	13.8 V	90 mm	33 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 64.86

General part information

Enclosed Battery Charger 27.6V 4.3A 24V
