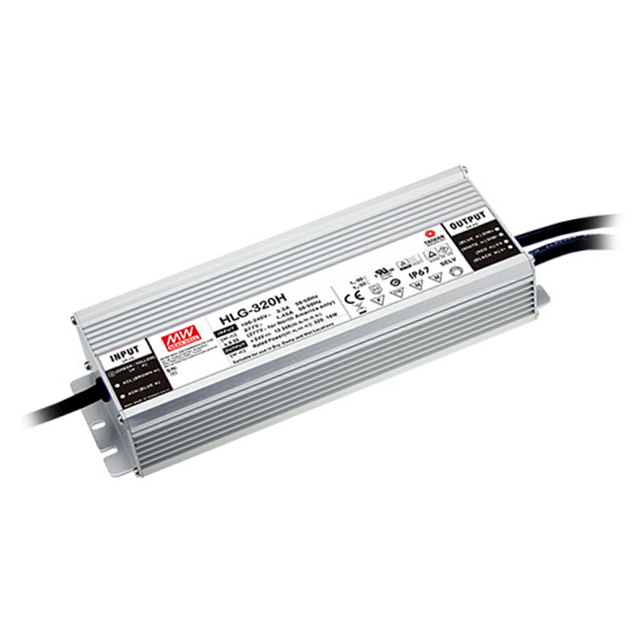

Specification	HLG-320H-20B

Approval Agency	cURus, CCC, CE, PSE, TUV, RCM, CB
Current - Output (Max)	15 A
Dimming	PWM, Analog
Efficiency	94 %
Features	OCP, SCP, OTP, OVP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	300 W
Ratings	IP67
Size / Dimension Height	1.72 in
Size / Dimension Length	8.87 in
Size / Dimension Width	3.54 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max)	305 V
Voltage - Input (Min)	90 VAC
Voltage - Isolation	3750 VDC
Voltage - Output	20 V

HLG-320H Series

Part	Efficiency	Features	Power (Watts)	Voltage - Input (Min)	Voltage - Isolation	Approval Agency	Voltage - Input (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Type	Current - Output (Max)	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Ratings	Topology	Termination Style	Number of Outputs	Voltage - Output	Mounting Type	Dimming	Voltage - Output (Max)	Voltage - Output (Min)
MEAN WELL USA Inc. HLG-320H-54	95 %	OCP OTP OVP SCP	321 W	90 VAC	3750 VDC	CB CCC CE cURus PSE RCM TUV	305 V	90 °C	-40 °C	Constant Current Voltage	5.95 A	8.87 in	3.54 in	1.72 in	IP67	AC DC Converter	Wire Leads	1	54 V	Chassis Mount
MEAN WELL USA Inc. HLG-320H-42AB	95 %	OCP OTP OVP SCP	321 W	90 VAC	3750 VDC	CB CCC CE cURus EAC KC PSE RCM TUV	305 V	90 °C	-40 °C	Constant Current Voltage	7.65 A	8.87 in	3.54 in	1.72 in	IP65	AC DC Converter	Wire Leads	1	42 V	Chassis Mount
MEAN WELL USA Inc. HLG-320H-24B	94.5 %	OCP OTP OVP SCP	320 W	90 VAC	3750 VDC	CB CCC CE cURus PSE RCM TUV	305 V	90 °C	-40 °C	Constant Current Voltage	13.34 A	8.87 in	3.54 in	1.72 in	IP67	AC DC Converter	Wire Leads	1	24 V	Chassis Mount	Analog PWM
MEAN WELL USA Inc. HLG-320H-20B	94 %	OCP OTP OVP SCP	300 W	90 VAC	3750 VDC	CB CCC CE cURus PSE RCM TUV	305 V	90 °C	-40 °C	Constant Current Voltage	15 A	8.87 in	3.54 in	1.72 in	IP67	AC DC Converter	Wire Leads	1	20 V	Chassis Mount	Analog PWM
MEAN WELL USA Inc. HLG-320H-C700A	94 %	OTP OVP SCP	300 W	90 VAC	3750 VDC	CB CCC CE cURus ENEC	305 V	85 °C	-40 °C	Constant Current	700 mA	8.87 in	3.54 in	1.72 in	IP65	AC DC Converter	Wire Leads	1		Chassis Mount		428 V	214 V
MEAN WELL USA Inc. HLG-320H-C2100DA	94 %	OTP OVP SCP	319 W	90 VAC	3750 VDC	CB CCC CE cURus ENEC	305 V	85 °C	-40 °C	Constant Current	2.1 A	8.87 in	3.54 in	1.72 in	IP67	AC DC Converter	Wire Leads	1		Chassis Mount		152 V	76 V
MEAN WELL USA Inc. HLG-320H-C1400A	94 %	OTP OVP SCP	321 W	90 VAC	3750 VDC	CB CCC CE cURus ENEC	305 V	85 °C	-40 °C	Constant Current	1.4 A	8.87 in	3.54 in	1.72 in	IP65	AC DC Converter	Wire Leads	1		Chassis Mount		229 V	114 V
MEAN WELL USA Inc. HLG-320H-C2800AB	94 %	OTP OVP SCP	319 W	90 VAC	3750 VDC	CB CCC CE cURus ENEC	305 V	85 °C	-40 °C	Constant Current	2.8 A	8.87 in	3.54 in	1.72 in	IP65	AC DC Converter	Wire Leads	1		Chassis Mount		114 V	57 V
MEAN WELL USA Inc. HLG-320H-36AB	95 %	OCP OTP OVP SCP	320 W	90 VAC	3750 VDC	CB CCC CE cURus EAC KC PSE RCM TUV	305 V	90 °C	-40 °C	Constant Current Voltage	8.9 A	8.87 in	3.54 in	1.72 in	IP65	AC DC Converter	Wire Leads	1	36 V	Chassis Mount
MEAN WELL USA Inc. HLG-320H-30C	94.5 %	OCP OTP OVP SCP	321 W	90 VAC	3750 VDC	CB CCC CE cURus PSE RCM TUV	305 V	90 °C	-40 °C	Constant Current Voltage	10.7 A	8.87 in	3.54 in	1.72 in		AC DC Converter	Wire Leads	1		Chassis Mount		32 V	26 V
