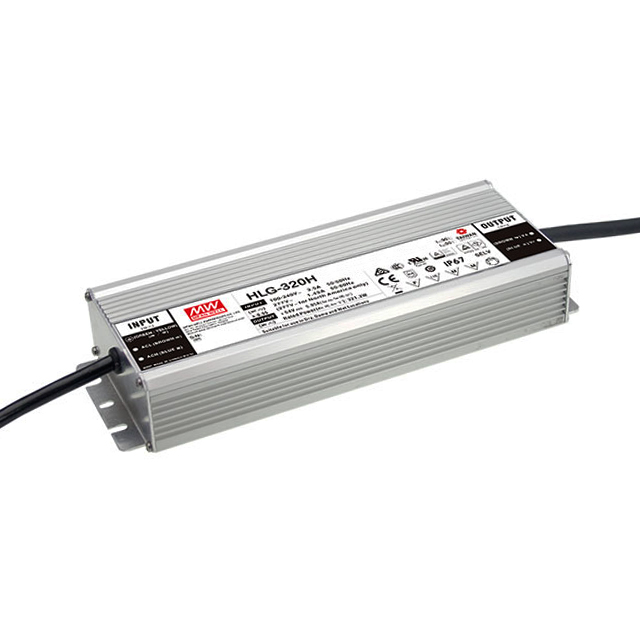

HLG-320H-54
ActiveMEAN WELL USA Inc.
LED DVR CC/CV AC/DC 54V 5.95A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HLG-320H-54
ActiveMEAN WELL USA Inc.
LED DVR CC/CV AC/DC 54V 5.95A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HLG-320H-54 |
|---|---|
| Approval Agency | RCM, cURus, CB, CE, TUV, CCC, PSE |
| Current - Output (Max) [Max] | 5.95 A |
| Efficiency | 95 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 321 W |
| Ratings | IP67 |
| Size / Dimension [x] | 8.87 in |
| Size / Dimension [x] | 225.2 mm |
| Size / Dimension [y] | 90 mm |
| Size / Dimension [y] | 3.54 in |
| Size / Dimension [z] | 1.72 in |
| Size / Dimension [z] | 43.8 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output | 54 V |
HLG-320H Series
| Part | Topology | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Voltage - Output | Current - Output (Max) [Max] | Power (Watts) | Efficiency | Type | Voltage - Input (Min) [Min] | Termination Style | Ratings | Voltage - Isolation | Approval Agency | Features | Mounting Type | Number of Outputs | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Dimming | Voltage - Output [Max] | Voltage - Output [Min] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | AC DC Converter | 90 °C | -40 °C | 305 VAC | 54 V | 5.95 A | 321 W | 95 % | Constant Current Voltage | 90 VAC | Wire Leads | IP67 | 3750 V | CB CCC CE cURus PSE RCM TUV | OCP OTP OVP SCP | Chassis Mount | 1 | 90 mm | 8.87 in | 1.72 in | 3.54 in | 43.8 mm | 225.2 mm | ||||
MEAN WELL USA Inc. | AC DC Converter | 90 °C | -40 °C | 305 VAC | 42 V | 7.65 A | 321 W | 95 % | Constant Current Voltage | 90 VAC | Wire Leads | IP65 | 3750 V | CB CCC CE cURus EAC KC PSE RCM TUV | OCP OTP OVP SCP | Chassis Mount | 1 | 90 mm | 8.87 in | 1.72 in | 3.54 in | 43.8 mm | 225.2 mm | ||||
MEAN WELL USA Inc. | AC DC Converter | 90 °C | -40 °C | 305 VAC | 24 V | 13.34 A | 320 W | 94.5 % | Constant Current Voltage | 90 VAC | Wire Leads | IP67 | 3750 V | CB CCC CE cURus PSE RCM TUV | OCP OTP OVP SCP | Chassis Mount | 1 | 90 mm | 8.87 in | 1.72 in | 3.54 in | 43.8 mm | 225.2 mm | Analog PWM | |||
MEAN WELL USA Inc. | AC DC Converter | 90 °C | -40 °C | 305 VAC | 20 V | 15 A | 300 W | 94 % | Constant Current Voltage | 90 VAC | Wire Leads | IP67 | 3750 V | CB CCC CE cURus PSE RCM TUV | OCP OTP OVP SCP | Chassis Mount | 1 | 90 mm | 8.87 in | 1.72 in | 3.54 in | 43.8 mm | 225.2 mm | Analog PWM | |||
MEAN WELL USA Inc. | AC DC Converter | 85 °C | -40 °C | 305 VAC | 1.4 A | 321 W | 94 % | Constant Current | 90 VAC | Wire Leads | IP65 | 3750 V | CB CCC CE cURus ENEC | OTP OVP SCP | Chassis Mount | 1 | 90 mm | 8.87 in | 1.72 in | 3.54 in | 43.8 mm | 225.2 mm | 229 V | 114 V | |||
MEAN WELL USA Inc. | AC DC Converter | 85 °C | -40 °C | 305 VAC | 319 W | 94 % | Constant Current | 90 VAC | Wire Leads | IP65 | 3750 V | CB CCC CE cURus ENEC | OTP OVP SCP | Chassis Mount | 1 | 90 mm | 8.87 in | 1.72 in | 3.54 in | 43.8 mm | 225.2 mm | 114 V | 57 V | 2.8 A | |||
MEAN WELL USA Inc. | AC DC Converter | 90 °C | -40 °C | 305 VAC | 36 V | 8.9 A | 320 W | 95 % | Constant Current Voltage | 90 VAC | Wire Leads | IP65 | 3750 V | CB CCC CE cURus EAC KC PSE RCM TUV | OCP OTP OVP SCP | Chassis Mount | 1 | 90 mm | 8.87 in | 1.72 in | 3.54 in | 43.8 mm | 225.2 mm | ||||
MEAN WELL USA Inc. | AC DC Converter | 90 °C | -40 °C | 305 VAC | 10.7 A | 321 W | 94.5 % | Constant Current Voltage | 90 VAC | Wire Leads | 3750 V | CB CCC CE cURus PSE RCM TUV | OCP OTP OVP SCP | Chassis Mount | 1 | 90 mm | 8.87 in | 1.72 in | 3.54 in | 43.8 mm | 225.2 mm | 32 VDC | 26 V | ||||
MEAN WELL USA Inc. | AC DC Converter | 85 °C | -40 °C | 305 VAC | 1.05 A | 320 W | 94 % | Constant Current | 90 VAC | Wire Leads | IP65 | 3750 V | CB CCC CE cURus ENEC | OTP OVP SCP | Chassis Mount | 1 | 90 mm | 8.87 in | 1.72 in | 3.54 in | 43.8 mm | 225.2 mm | 305 V | 152 V | |||
MEAN WELL USA Inc. | AC DC Converter | 90 °C | -40 °C | 305 VAC | 19 A | 285 W | 93 % | Constant Current Voltage | 90 VAC | Wire Leads | 3750 V | CB CCC CE cURus PSE RCM TUV | OCP OTP OVP SCP | Chassis Mount | 1 | 90 mm | 8.87 in | 1.72 in | 3.54 in | 43.8 mm | 225.2 mm | 17 V | 13.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 120.27 | |
| 5 | $ 109.96 | |||
| 10 | $ 105.79 | |||
| 25 | $ 100.52 | |||
Description
General part information
HLG-320H Series
5.95A 54V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
