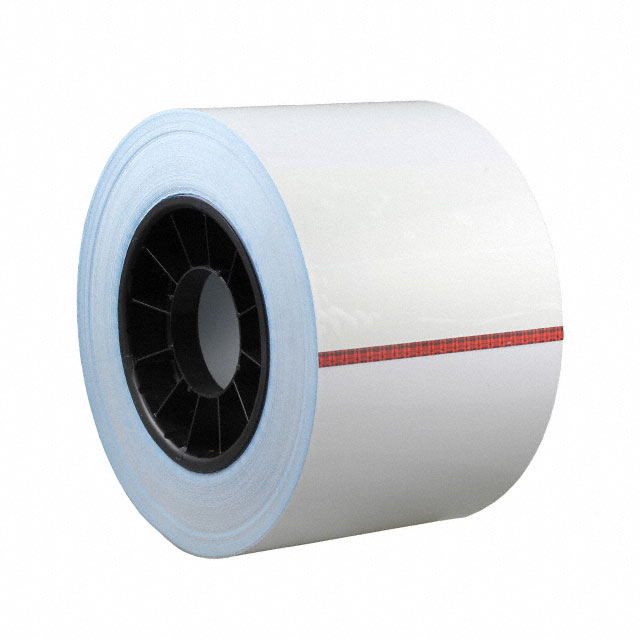

8810-7"-108YD

Active

3M (TC)

THERM PAD 98.76M X 177.8MM W/ADH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsThermally Conductive Selection Guide Datasheet

8810-7"-108YD

Active

3M (TC)

THERM PAD 98.76M X 177.8MM W/ADH

Deep-Dive with AI

DocumentsThermally Conductive Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8810-7"-108YD

Adhesive	Adhesive - Both Sides
Backing, Carrier	Polyester
Color	White
Material	Acrylic
Outline [x]	98.76 m
Outline [y]	177.8 mm
Shape	Rectangular
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	72 °F
Storage/Refrigeration Temperature	22 °C
Thermal Conductivity	0.6 W/m-K
Type	Transfer Tape, Roll

8810 Series

Part	Thermal Conductivity	Adhesive	Material	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Type	Backing, Carrier	Shelf Life Start	Color	Shelf Life	Shape	Outline [x]	Outline [y]	Usage
3M (TC) 8810-4-5	0.6 W/m-K	Adhesive - Both Sides	Acrylic	72 °F	22 °C	Transfer Tape Roll	Polyester	Date of Manufacture	White	24 Months	Rectangular	4.57 m	101.6 mm
3M (TC) 3M 8810 9" X 36YD	0.6 W/m-K	Adhesive - Both Sides	Acrylic	72 °F	22 °C	Transfer Tape Roll	Polyester	Date of Manufacture	White	24 Months	Rectangular	32.92 m	228.6 mm
3M (TC) 8810-7"-108YD	0.6 W/m-K	Adhesive - Both Sides	Acrylic	72 °F	22 °C	Transfer Tape Roll	Polyester	Date of Manufacture	White	24 Months	Rectangular	98.76 m	177.8 mm
3M (TC) 8810-TO220	0.6 W/m-K	Adhesive - Both Sides	Acrylic	72 °F	22 °C	Transfer Tape	Polyester	Date of Manufacture	White	24 Months	Rectangular			TO-220
3M (TC) 8810-0.375-36	0.6 W/m-K	Adhesive - Both Sides	Acrylic	72 °F	22 °C	Transfer Tape Roll	Polyester	Date of Manufacture	White	24 Months	Rectangular	32.92 m	9.53 mm
3M (TC) 8810 22"X108YD				72 °F	22 °C			Date of Manufacture		24 Months
3M (TC) 8810-2"X36YD	0.6 W/m-K	Adhesive - Both Sides	Acrylic	72 °F	22 °C	Transfer Tape Roll	Polyester	Date of Manufacture	White	24 Months	Rectangular
3M (TC) 3M 8810 0.688" X 36YD	0.6 W/m-K	Adhesive - Both Sides	Acrylic	72 °F	22 °C	Transfer Tape Roll	Polyester	Date of Manufacture	White	24 Months	Rectangular	32.92 m	17.48 mm
3M (TC) 3M 8810 0.47" X 36YD	0.6 W/m-K	Adhesive - Both Sides	Acrylic	72 °F	22 °C	Transfer Tape Roll	Polyester	Date of Manufacture	White	24 Months	Rectangular	32.92 m	11.94 mm
3M (TC) 3M 8810 8" X 36YD	0.6 W/m-K	Adhesive - Both Sides	Acrylic	72 °F	22 °C	Transfer Tape Roll	Polyester	Date of Manufacture	White	24 Months	Rectangular	32.92 m	203.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3374.23

Description

General part information

8810 Series

Thermal Pad White 98.76m x 177.80mm Rectangular Adhesive - Both Sides

Documents

Technical documentation and resources

Thermally Conductive Selection Guide

Datasheet
