ATS-FPX030030020-51-C3-R0

Active

Advanced Thermal Solutions Inc.

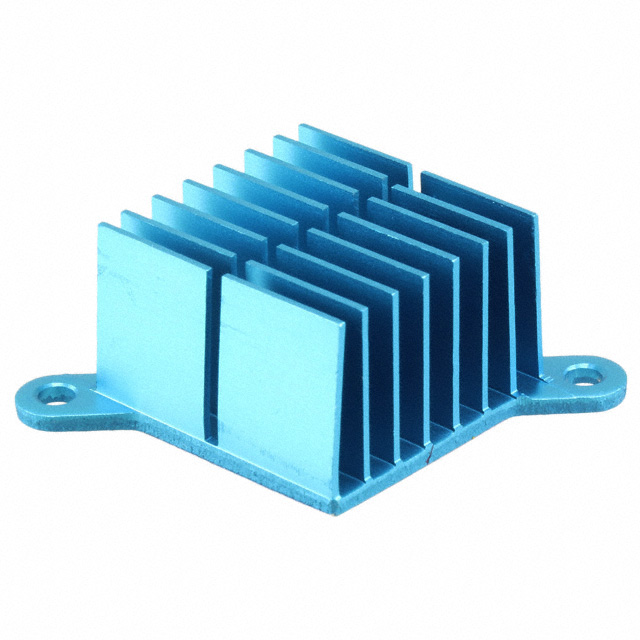

HEATSINK 30X30X20MM L-TAB FP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-FPX030030020-51-C3-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 30X30X20MM L-TAB FP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-FPX030030020-51-C3-R0

Attachment Method	Push Pin
Fin Height [z]	0.79 in
Fin Height [z]	20 mm
Length [x]	30 mm
Length [x]	1.181 in
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	100 LFM, 14.22 °C/W
Type	Top Mount
Width	30 mm
Width	1.181 in

ATS-FPX Series

...

Part	Length [x]	Length [x]	Material Finish	Fin Height [z]	Fin Height [z]	Shape	Thermal Resistance @ Forced Air Flow	Material	Type	Width	Width	Package Cooled	Attachment Method	Width [x]	Length	Length	Width [y]	Width [y]	Fin Height	Fin Height	Width [x]
Advanced Thermal Solutions Inc. ATS-FPX030030020-51-C3-R0	30 mm	1.181 in	Blue Anodized	0.79 in	20 mm	Fins Square	14.22 °C/W 100 LFM	Aluminum	Top Mount	30 mm	1.181 in	ASIC BGA CPU LGA	Push Pin
Advanced Thermal Solutions Inc. ATS-FPX035035010-55-C3-R0	35 mm	1.378 in	Blue Anodized	0.394 in	10 mm	Fins Square	24.11 °C/W	Aluminum	Top Mount	35 mm		ASIC BGA CPU LGA	Push Pin	1.378 in
Advanced Thermal Solutions Inc. ATS-FPX070070013-27-C2-R0			Blue Anodized	0.5 in	12.7 mm	Fins Square	12.24 °C/W 100 LFM	Aluminum	Top Mount			ASIC BGA CPU LGA	Push Pin		70 mm	2.756 "	2.756 in	70 mm
Advanced Thermal Solutions Inc. ATS-FPX040040015-92-C1-R0			Blue Anodized			Fins Square	16.45 °C/W	Aluminum	Top Mount			ASIC BGA CPU LGA	Push Pin	1.575 in					0.59 "	15 mm	40 mm
Advanced Thermal Solutions Inc. ATS-FPX045045010-97-C1-R0		1.772 "	Blue Anodized	0.394 in	10 mm	Fins Square	20.28 °C/W	Aluminum	Top Mount	45 mm		ASIC BGA CPU LGA	Push Pin	1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-FPX054054013-17-C3-R0	54 mm	2.126 "	Blue Anodized	0.5 in	12.7 mm	Fins Square	15.51 °C/W 100 LFM	Aluminum	Top Mount			ASIC BGA CPU LGA	Push Pin	2.126 "							54 mm
Advanced Thermal Solutions Inc. ATS-FPX030030030-53-C1-R0	30 mm	1.181 in	Blue Anodized	1.181 in	30 mm	Fins Square	8.52 °C/W 100 LFM	Aluminum	Top Mount	30 mm	1.181 in	ASIC BGA CPU LGA	Push Pin
Advanced Thermal Solutions Inc. ATS-FPX060060010-111-C3-R1	60 mm	2.362 in	Blue Anodized			Fins Square	26.82 °C/W	Aluminum	Top Mount Skived			ASIC BGA CPU LGA	Push Pin	2.362 in					0.374 in	9.5 mm	60 mm
Advanced Thermal Solutions Inc. ATS-FPX060060015-23-C2-R0	60 mm	2.362 in	Blue Anodized			Fins Square	12.01 °C/W 100 LFM	Aluminum	Top Mount			ASIC BGA CPU LGA	Push Pin	2.362 in					0.59 "	15 mm	60 mm
Advanced Thermal Solutions Inc. ATS-FPX045045010-67-C3-R0		1.772 "	Blue Anodized	0.394 in	10 mm	Fins Square	20.39 °C/W	Aluminum	Top Mount	45 mm		ASIC BGA CPU LGA	Push Pin	1.772 in	45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.44
		10	$ 2.38
		25	$ 2.31
		50	$ 2.26

Description

General part information

ATS-FPX Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
