ATS-FPX060060010-111-C3-R1

Active

Advanced Thermal Solutions Inc.

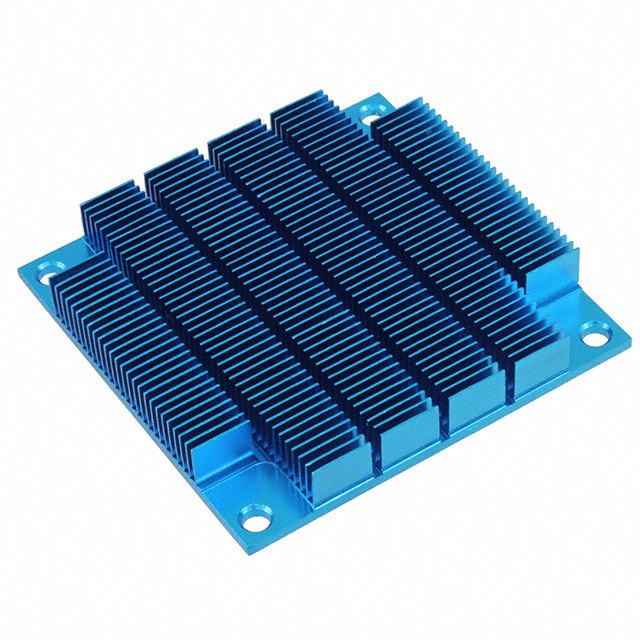

HEATSINK 60X60X9.5MM XCUT SFP

ATS-FPX060060010-111-C3-R1

Active

Advanced Thermal Solutions Inc.

HEATSINK 60X60X9.5MM XCUT SFP

Description Specifications Series Pricing CAD Documents

Description

General part information

ATS-FPX Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount, Skived

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-FPX060060010-111-C3-R1

Attachment Method	Push Pin
Fin Height	0.374 in
Length	2.362 in
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	ASIC...), BGA, ASIC, LGA, CPU, Assorted (BGA
Shape	Square, Fins
Thermal Resistance	26.82 °C/W
Type	Top Mount, Skived
Width	2.362 in

ATS-FPX Series

...

Part	Material	Material Finish	Type	Thermal Resistance	Package Cooled	Shape	Fin Height	Width	Length	Attachment Method
Advanced Thermal Solutions Inc. ATS-FPX030030020-51-C3-R0	Aluminum	Blue Anodized	Top Mount	14.22 °C/W	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.79 in	1.181 in	1.181 in	Push Pin
Advanced Thermal Solutions Inc. ATS-FPX035035010-55-C3-R0	Aluminum	Blue Anodized	Top Mount	24.11 °C/W	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.394 in	1.378 in	1.378 in	Push Pin
Advanced Thermal Solutions Inc. ATS-FPX070070013-27-C2-R0	Aluminum	Blue Anodized	Top Mount	12.24 °C/W	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.5 in	2.756 in	2.756 in	Push Pin
Advanced Thermal Solutions Inc. ATS-FPX040040015-92-C1-R0	Aluminum	Blue Anodized	Top Mount	16.45 °C/W	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.59 in	1.575 in	1.575 in	Push Pin
Advanced Thermal Solutions Inc. ATS-FPX050050013-12-C1-R0	Aluminum	Blue Anodized	Top Mount	15.84 °C/W	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.5 in	1.969 in	1.969 in	Push Pin
Advanced Thermal Solutions Inc. ATS-FPX045045010-97-C1-R0	Aluminum	Blue Anodized	Top Mount	20.28 °C/W	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.394 in	1.772 in	1.772 in	Push Pin
Advanced Thermal Solutions Inc. ATS-FPX054054013-17-C3-R0	Aluminum	Blue Anodized	Top Mount	15.51 °C/W	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.5 in	2.126 in	2.126 in	Push Pin
Advanced Thermal Solutions Inc. ATS-FPX030030030-53-C1-R0	Aluminum	Blue Anodized	Top Mount	8.52 °C/W	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	1.181 in	1.181 in	1.181 in	Push Pin
Advanced Thermal Solutions Inc. ATS-FPX060060010-111-C3-R1	Aluminum	Blue Anodized	Skived Top Mount	26.82 °C/W	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.374 in	2.362 in	2.362 in	Push Pin
Advanced Thermal Solutions Inc. ATS-FPX060060015-23-C2-R0	Aluminum	Blue Anodized	Top Mount	12.01 °C/W	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.59 in	2.362 in	2.362 in	Push Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ATS-FPX060060010-111-C3-R1 | Datasheet
