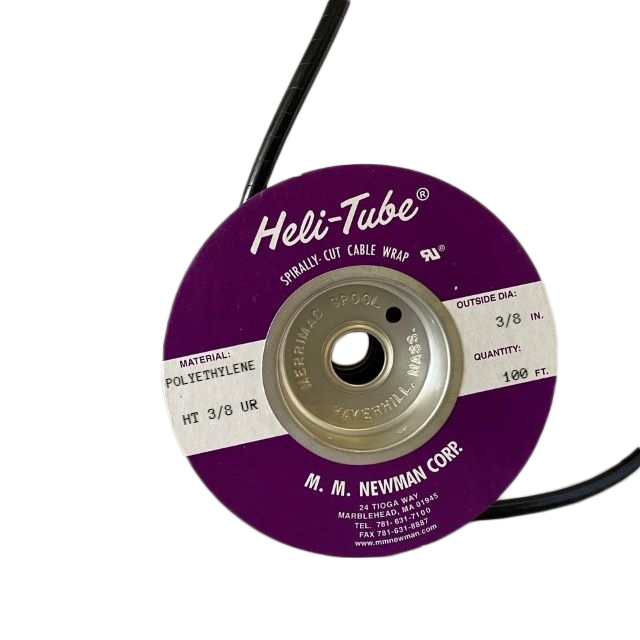

HT 3/8 UR
ActiveMM Newman Corporation
SPIRAL WRAP 0.271" X 100' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HT 3/8 UR
ActiveMM Newman Corporation
SPIRAL WRAP 0.271" X 100' BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HT 3/8 UR | HT 3/8 Series |
|---|---|---|
| Abrasion Protection | Abrasion Resistant | Abrasion Resistant |
| Color | Black | Black, Red, Yellow, Natural, White |
| Diameter - Inside, Expanded | 76.2 mm | 76.2 mm |
| Diameter - Inside, Expanded | - | 63.5 mm |
| Diameter - Inside, Expanded [diameter] | 3 in | 2.5 - 3 in |
| Diameter - Inside, Non-Expanded [diameter] | 0.271 in | 0.271 - 0.312 in |
| Diameter - Inside, Non-Expanded [diameter] | 6.88 mm | 6.88 - 7.92 mm |
| Diameter - Outside, Non-Expanded [diameter] | 0.375 " | 0.375 " |
| Diameter - Outside, Non-Expanded [diameter] | 9.52 mm | 9.52 - 9.53 mm |
| Environment Protection | - | UV Resistant |
| Features | Solvent Resistant, Chemical Resistant | Solvent Resistant, Chemical Resistant, Self Extinguishing |
| Heat Protection | - | Fire Resistant |
| Length | 100 ft | 100 ft |
| Length | 30.48 m | 30.48 m |
| Material | Polyethylene (PE) | Polyethylene (PE), Nylon, Polytetrafluoroethylene (PTFE) |
| Material Flammability Rating | - | UL94 V-0, UL VW-1, UL94 V-2, UL1441 |
| Operating Temperature [Max] | 88 °C | 80 - 260 °C |
| Operating Temperature [Min] | -60 °C | -268 - -20 °C |
| Type | Spiral Wrap | Spiral Wrap |
| Type Attributes | Harness | Harness |
| Wall Thickness [custom] | 1.32 mm | 0.76 - 1.32 mm |
| Wall Thickness [custom] | 0.052 in | 0.03 - 0.052 in |
HT 3/8 Series
SPIRAL WRAP 0.271" X 100' BLACK
| Part | Material | Type Attributes | Diameter - Inside, Non-Expanded [diameter] | Diameter - Inside, Non-Expanded [diameter] | Color | Type | Wall Thickness [custom] | Wall Thickness [custom] | Diameter - Outside, Non-Expanded [diameter] | Diameter - Outside, Non-Expanded [diameter] | Length | Length | Abrasion Protection | Features | Operating Temperature [Min] | Operating Temperature [Max] | Diameter - Inside, Expanded | Diameter - Inside, Expanded [diameter] | Environment Protection | Material Flammability Rating | Heat Protection | Diameter - Inside, Expanded [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MM Newman Corporation HT 3/8 UR | Polyethylene (PE) | Harness | 0.271 in | 6.88 mm | Black | Spiral Wrap | 1.32 mm | 0.052 in | 0.375 " | 9.52 mm | 100 ft | 30.48 m | Abrasion Resistant | Chemical Resistant, Solvent Resistant | -60 °C | 88 °C | 76.2 mm | 3 in | ||||
MM Newman Corporation HT 3/8 C RE | Polyethylene (PE) | Harness | 0.271 in | 6.88 mm | Red | Spiral Wrap | 1.32 mm | 0.052 in | 0.375 " | 9.53 mm | 100 ft | 30.48 m | Abrasion Resistant | Chemical Resistant, Solvent Resistant | -60 °C | 88 °C | 76.2 mm | 3 in | ||||
MM Newman Corporation HT 3/8 C YE DG | Polyethylene (PE) | Harness | 0.271 in | 6.88 mm | Yellow | Spiral Wrap | 1.32 mm | 0.052 in | 0.375 " | 9.53 mm | 100 ft | 30.48 m | Abrasion Resistant | Chemical Resistant, Solvent Resistant | -60 °C | 88 °C | 76.2 mm | 3 in | ||||
MM Newman Corporation HT 3/8 N-B | Nylon | Harness | 0.305 in | 7.75 mm | Black | Spiral Wrap | 0.89 mm | 0.035 in | 0.375 " | 9.53 mm | 100 ft | 30.48 m | Abrasion Resistant | Chemical Resistant, Self Extinguishing, Solvent Resistant | -40 °C | 121 °C | 76.2 mm | 3 in | UV Resistant | |||
MM Newman Corporation HT 3/8 C | Polyethylene (PE) | Harness | 0.271 in | 6.88 mm | Natural | Spiral Wrap | 1.32 mm | 0.052 in | 0.375 " | 9.52 mm | 100 ft | 30.48 m | Abrasion Resistant | Chemical Resistant, Solvent Resistant | -60 °C | 88 °C | 76.2 mm | 3 in | ||||
MM Newman Corporation HT 3/8 T | Polytetrafluoroethylene (PTFE) | Harness | 0.312 in | 7.92 mm | Natural | Spiral Wrap | 0.76 mm | 0.03 in | 0.375 " | 9.53 mm | 100 ft | 30.48 m | Abrasion Resistant | Chemical Resistant, Solvent Resistant | -268 °C | 260 ░C | 2.5 " | UV Resistant | UL VW-1, UL94 V-0 | Fire Resistant | 63.5 mm | |
MM Newman Corporation HT 3/8 R | Polyethylene (PE) | Harness | 0.271 in | 6.88 mm | White | Spiral Wrap | 1.32 mm | 0.052 in | 0.375 " | 9.53 mm | 100 ft | 30.48 m | Abrasion Resistant | Chemical Resistant, Solvent Resistant | -20 C | 80 C | 76.2 mm | 3 in | UL94 V-2, UL1441 | Fire Resistant |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HT 3/8 Series
Spiral Wrap 0.375" (9.52mm) X 100' (30.48m) Black
