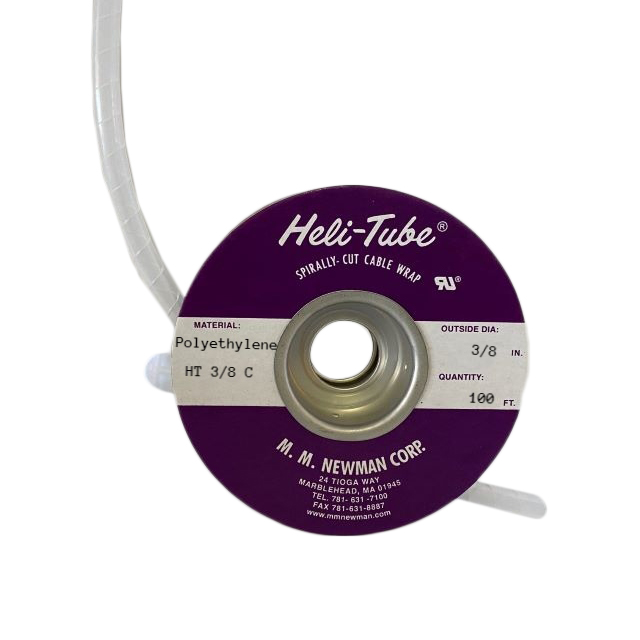

HT 3/8 C

Active

MM Newman Corporation

SPIRAL WRAP 0.271" X 100' NAT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 3/8 C

Active

MM Newman Corporation

SPIRAL WRAP 0.271" X 100' NAT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HT 3/8 C	HT 3/8 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Natural	Black, Red, Yellow, Natural, White
Diameter - Inside, Expanded	76.2 mm	76.2 mm
Diameter - Inside, Expanded	-	63.5 mm
Diameter - Inside, Expanded [diameter]	3 in	2.5 - 3 in
Diameter - Inside, Non-Expanded [diameter]	0.271 in	0.271 - 0.312 in
Diameter - Inside, Non-Expanded [diameter]	6.88 mm	6.88 - 7.92 mm
Diameter - Outside, Non-Expanded [diameter]	0.375 "	0.375 "
Diameter - Outside, Non-Expanded [diameter]	9.52 mm	9.52 - 9.53 mm
Environment Protection	-	UV Resistant
Features	Solvent Resistant, Chemical Resistant	Solvent Resistant, Chemical Resistant, Self Extinguishing
Heat Protection	-	Fire Resistant
Length	100 ft	100 ft
Length	30.48 m	30.48 m
Material	Polyethylene (PE)	Polyethylene (PE), Nylon, Polytetrafluoroethylene (PTFE)
Material Flammability Rating	-	UL94 V-0, UL VW-1, UL94 V-2, UL1441
Operating Temperature [Max]	88 °C	80 - 260 °C
Operating Temperature [Min]	-60 °C	-268 - -20 °C
Type	Spiral Wrap	Spiral Wrap
Type Attributes	Harness	Harness
Wall Thickness [custom]	1.32 mm	0.76 - 1.32 mm
Wall Thickness [custom]	0.052 in	0.03 - 0.052 in

HT 3/8 Series

SPIRAL WRAP 0.271" X 100' BLACK

Part	Material	Type Attributes	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Color	Type	Wall Thickness [custom]	Wall Thickness [custom]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Length	Length	Abrasion Protection	Features	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside, Expanded	Diameter - Inside, Expanded [diameter]	Environment Protection	Material Flammability Rating	Heat Protection	Diameter - Inside, Expanded [diameter]
MM Newman Corporation HT 3/8 UR	Polyethylene (PE)	Harness	0.271 in	6.88 mm	Black	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.52 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Solvent Resistant	-60 °C	88 °C	76.2 mm	3 in
MM Newman Corporation HT 3/8 C RE	Polyethylene (PE)	Harness	0.271 in	6.88 mm	Red	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Solvent Resistant	-60 °C	88 °C	76.2 mm	3 in
MM Newman Corporation HT 3/8 C YE DG	Polyethylene (PE)	Harness	0.271 in	6.88 mm	Yellow	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Solvent Resistant	-60 °C	88 °C	76.2 mm	3 in
MM Newman Corporation HT 3/8 N-B	Nylon	Harness	0.305 in	7.75 mm	Black	Spiral Wrap	0.89 mm	0.035 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Self Extinguishing, Solvent Resistant	-40 °C	121 °C	76.2 mm	3 in	UV Resistant
MM Newman Corporation HT 3/8 C	Polyethylene (PE)	Harness	0.271 in	6.88 mm	Natural	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.52 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Solvent Resistant	-60 °C	88 °C	76.2 mm	3 in
MM Newman Corporation HT 3/8 T	Polytetrafluoroethylene (PTFE)	Harness	0.312 in	7.92 mm	Natural	Spiral Wrap	0.76 mm	0.03 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Solvent Resistant	-268 °C	260 ░C		2.5 "	UV Resistant	UL VW-1, UL94 V-0	Fire Resistant	63.5 mm
MM Newman Corporation HT 3/8 R	Polyethylene (PE)	Harness	0.271 in	6.88 mm	White	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Solvent Resistant	-20 C	80 C	76.2 mm	3 in		UL94 V-2, UL1441	Fire Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 67.14
		10	$ 54.62

Description

General part information

HT 3/8 Series

Spiral Wrap 0.375" (9.52mm) X 100' (30.48m) Natural
