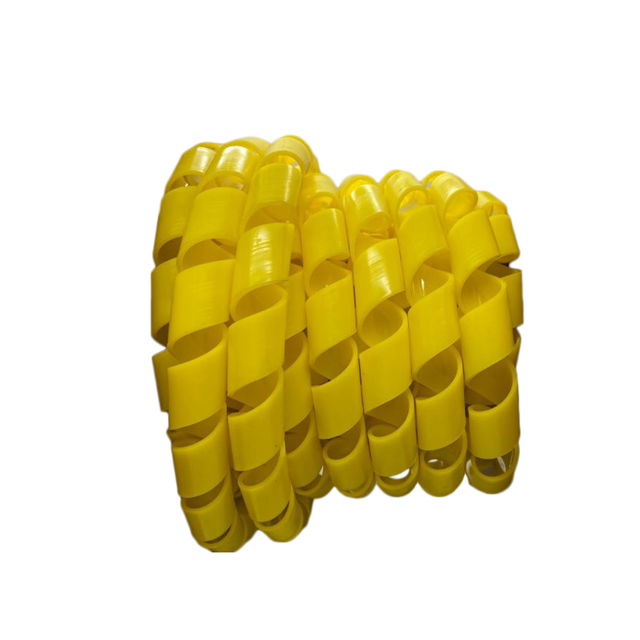

HT 3/8 C YE DG

Active

MM Newman Corporation

SPIRAL WRAP 0.271" X 100' YLW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 3/8 C YE DG

Active

MM Newman Corporation

SPIRAL WRAP 0.271" X 100' YLW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 90.64
		10	$ 73.74

Description

General part information

HT 3/8 Series

Spiral Wrap 0.375" (9.53mm) X 100' (30.48m) Yellow

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HT 3/8 C YE DG	HT 3/8 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Yellow	Black, Red, Yellow, Natural, White
Diameter - Inside, Expanded	76.2 mm	76.2 mm
Diameter - Inside, Expanded	-	63.5 mm
Diameter - Inside, Expanded [diameter]	3 in	2.5 - 3 in
Diameter - Inside, Non-Expanded [diameter]	0.271 in	0.271 - 0.312 in
Diameter - Inside, Non-Expanded [diameter]	6.88 mm	6.88 - 7.92 mm
Diameter - Outside, Non-Expanded [diameter]	9.53 mm	9.52 - 9.53 mm
Diameter - Outside, Non-Expanded [diameter]	0.375 "	0.375 "
Environment Protection	-	UV Resistant
Features	Solvent Resistant, Chemical Resistant	Solvent Resistant, Chemical Resistant, Self Extinguishing
Heat Protection	-	Fire Resistant
Length	100 ft	100 ft
Length	30.48 m	30.48 m
Material	Polyethylene (PE)	Polyethylene (PE), Nylon, Polytetrafluoroethylene (PTFE)
Material Flammability Rating	-	UL94 V-0, UL VW-1, UL94 V-2, UL1441
Operating Temperature [Max]	88 °C	80 - 260 °C
Operating Temperature [Min]	-60 °C	-268 - -20 °C
Type	Spiral Wrap	Spiral Wrap
Type Attributes	Harness	Harness
Wall Thickness [custom]	1.32 mm	0.76 - 1.32 mm
Wall Thickness [custom]	0.052 in	0.03 - 0.052 in

HT 3/8 Series

SPIRAL WRAP 0.271" X 100' BLACK

Part	Material	Type Attributes	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Color	Type	Wall Thickness [custom]	Wall Thickness [custom]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Length	Length	Abrasion Protection	Features	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside, Expanded	Diameter - Inside, Expanded [diameter]	Environment Protection	Material Flammability Rating	Heat Protection	Diameter - Inside, Expanded [diameter]
MM Newman Corporation HT 3/8 UR	Polyethylene (PE)	Harness	0.271 in	6.88 mm	Black	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.52 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Solvent Resistant	-60 °C	88 °C	76.2 mm	3 in
MM Newman Corporation HT 3/8 C RE	Polyethylene (PE)	Harness	0.271 in	6.88 mm	Red	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Solvent Resistant	-60 °C	88 °C	76.2 mm	3 in
MM Newman Corporation HT 3/8 C YE DG	Polyethylene (PE)	Harness	0.271 in	6.88 mm	Yellow	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Solvent Resistant	-60 °C	88 °C	76.2 mm	3 in
MM Newman Corporation HT 3/8 N-B	Nylon	Harness	0.305 in	7.75 mm	Black	Spiral Wrap	0.89 mm	0.035 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Self Extinguishing, Solvent Resistant	-40 °C	121 °C	76.2 mm	3 in	UV Resistant
MM Newman Corporation HT 3/8 C	Polyethylene (PE)	Harness	0.271 in	6.88 mm	Natural	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.52 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Solvent Resistant	-60 °C	88 °C	76.2 mm	3 in
MM Newman Corporation HT 3/8 T	Polytetrafluoroethylene (PTFE)	Harness	0.312 in	7.92 mm	Natural	Spiral Wrap	0.76 mm	0.03 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Solvent Resistant	-268 °C	260 ░C		2.5 "	UV Resistant	UL VW-1, UL94 V-0	Fire Resistant	63.5 mm
MM Newman Corporation HT 3/8 R	Polyethylene (PE)	Harness	0.271 in	6.88 mm	White	Spiral Wrap	1.32 mm	0.052 in	0.375 "	9.53 mm	100 ft	30.48 m	Abrasion Resistant	Chemical Resistant, Solvent Resistant	-20 C	80 C	76.2 mm	3 in		UL94 V-2, UL1441	Fire Resistant
