FN9255-10-07
ActiveTE Connectivity Raychem Cable Protection

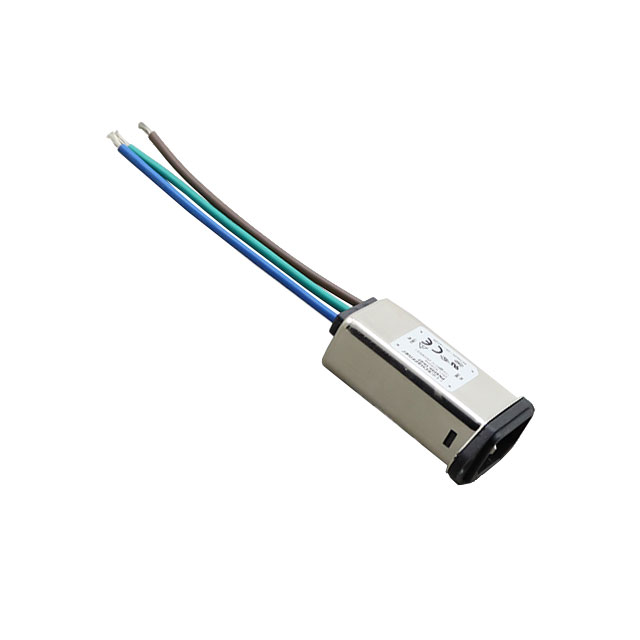

PWR ENT RCPT IEC320-C14 PNL WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN9255-10-07
ActiveTE Connectivity Raychem Cable Protection
PWR ENT RCPT IEC320-C14 PNL WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN9255-10-07 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CQC, CE, UR, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Filter | 10 A |
| Features | Front Side Mount |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.92 | |
| 10 | $ 22.69 | |||
| 25 | $ 21.71 | |||
| 50 | $ 21.01 | |||
| 100 | $ 20.31 | |||
| 250 | $ 19.19 | |||
| 500 | $ 18.63 | |||
Description
General part information
FN9255 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
