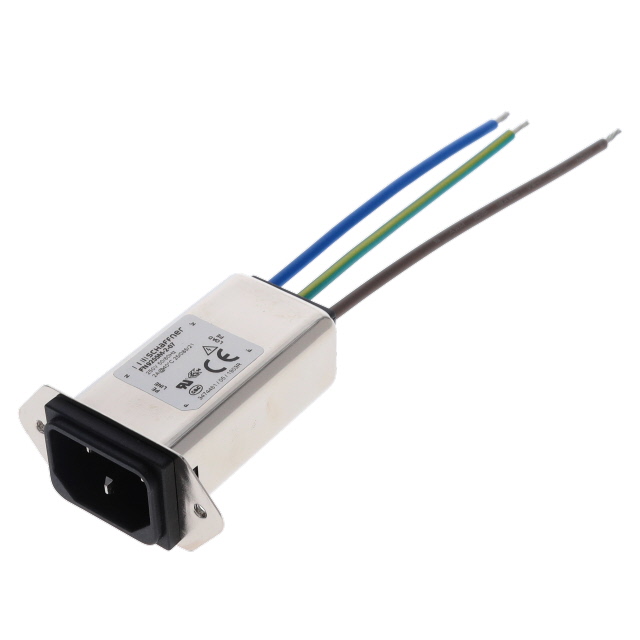

FN9255M-2-07

Obsolete

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PNL WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN9255M-2-07

Obsolete

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PNL WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN9255M-2-07

Accomodates a Fuse	False
Approval Agency	CQC, CE, UR, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Filter	10 A
Features	Rear Side Mount
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	30.4 mm
Panel Cutout Dimensions [y]	22.9 mm
Termination	Wire Leads

FN9255 Series

Part	Termination	Mounting Type	Current Rating - Filter	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Filter Type	Features	Connector Type	Approval Agency	Ingress Protection	Material Flammability Rating	Connector Style	Termination	Termination
TE Connectivity Raychem Cable Protection FN9255M-4-07	Wire Leads	Flange Panel Mount	4 A	30.4 mm	22.9 mm	Filtered (EMI RFI) - Commercial	Rear Side Mount	Male Blades Receptacle	CE CQC ENEC UR	IP40	UL94 V-0	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9255M-2-07	Wire Leads	Flange Panel Mount	10 A	30.4 mm	22.9 mm	Filtered (EMI RFI) - Commercial	Rear Side Mount	Male Blades Receptacle	CE CQC ENEC UR	IP40	UL94 V-0	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9255MB-6-06	Quick Connect	Flange Panel Mount	6 A	30.4 mm	22.9 mm	Filtered (EMI RFI) - Commercial Medical	Rear Side Mount	Male Blades Receptacle	CE CQC ENEC UR	IP40	UL94 V-0	IEC 320-C14	0.25 in	6.3 mm
TE Connectivity Raychem Cable Protection FN9255-10-07	Wire Leads	Flange Panel Mount	10 A			Filtered (EMI RFI) - Commercial	Front Side Mount	Male Blades Receptacle	CE CQC ENEC UR	IP40	UL94 V-0	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9255-15-07	Wire Leads	Flange Panel Mount	15 A			Filtered (EMI RFI) - Commercial	Front Side Mount	Male Blades Receptacle	CE CQC ENEC UR	IP40	UL94 V-0	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9255-6-06	Quick Connect	Flange Panel Mount	6 A			Filtered (EMI RFI) - Commercial	Front Side Mount	Male Blades Receptacle	CE CQC ENEC UR	IP40	UL94 V-0	IEC 320-C14	0.25 in	6.3 mm
TE Connectivity Raychem Cable Protection FN9255-4-06	Quick Connect	Flange Panel Mount	4 A			Filtered (EMI RFI) - Commercial	Front Side Mount	Male Blades Receptacle	CE CQC ENEC UR	IP40	UL94 V-0	IEC 320-C14	0.25 in	6.3 mm
TE Connectivity Raychem Cable Protection FN9255-15-07	Wire Leads	Flange Panel Mount	15 A			Filtered (EMI RFI) - Commercial	Front Side Mount	Male Blades Receptacle	CE CQC ENEC UR	IP40	UL94 V-0	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9255-6-06	Quick Connect	Flange Panel Mount	6 A			Filtered (EMI RFI) - Commercial	Front Side Mount	Male Blades Receptacle	CE CQC ENEC UR	IP40	UL94 V-0	IEC 320-C14	0.25 in	6.3 mm
TE Connectivity Raychem Cable Protection FN9255-10-06	Quick Connect	Flange Panel Mount	10 A			Filtered (EMI RFI) - Commercial	Front Side Mount	Male Blades Receptacle	CE CQC ENEC UR	IP40	UL94 V-0	IEC 320-C14	0.25 in	6.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.86

Description

General part information

FN9255 Series

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
