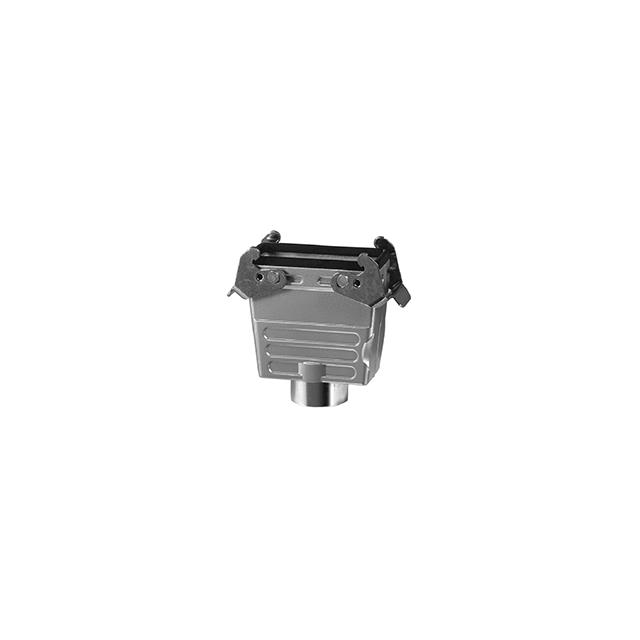

Specification	C146 10G016 802 8

Connector Type	Hood - Coupling
Features	Cable to Cable, Cable
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lock Location	Locking Clip (2) on Hood Top
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Size	E16
Size / Dimension Height	2.992 in
Size / Dimension Length	3.681 in
Size / Dimension Width	1.693 in
Style	Bottom Entry, Top or Bottom Entry
Thread Size	PG21

C146 10G016 Series

Part	Connector Type	Lock Location	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Housing Material	Operating Temperature (Max)	Operating Temperature (Min)	Size	Ingress Protection IP Rating	Ingress Protection Description	Thread Size	Style	Features
Amphenol Tuchel Industrial C146 10G016 500 1	Hood	Locking Clip (2) on Base Bottom	2.441 in	3.681 in	1.693 in	Aluminum Alloy Die Cast	100 °C	-40 °C	E16	IP65	Dust Tight Water Resistant	PG21	Side Entry
Amphenol Tuchel Industrial C146 10G016 506 8	Hood	Locking Clip (1) on Base Bottom	2.992 in	3.681 in	1.693 in	Aluminum Die Cast	100 °C	-40 °C	E16	IP65	Dust Tight Water Resistant	PG21	Side Entry
Amphenol Tuchel Industrial C146 10G016 507 1	Hood	Locking Clip (1) on Base Bottom	2.441 in	3.681 in	1.693 in	Aluminum Alloy Die Cast	100 °C	-40 °C	E16	IP65	Dust Tight Water Resistant	PG29	Side Entry
Amphenol Tuchel Industrial C146 10G016 802 8	Hood - Coupling	Locking Clip (2) on Hood Top	2.992 in	3.681 in	1.693 in	Aluminum Die Cast	100 °C	-40 °C	E16	IP65	Dust Tight Water Resistant	PG21	Bottom Entry Top or Bottom Entry	Cable Cable to Cable
Amphenol Tuchel Industrial C146 10G016 601 1	Hood	Locking Clip (2) on Base Bottom	2.441 in	3.681 in	1.693 in	Aluminum Alloy Die Cast	100 °C	-40 °C	E16	IP65	Dust Tight Water Resistant	PG29	Top Entry
Amphenol Tuchel Industrial C146 10G016 804 4	Hood - Coupling	Locking Clip (1) on Hood Top	2.067 in	3.11 in	1.161 in	Aluminum Alloy Die Cast	100 °C	-40 °C	A16	IP65	Dust Tight Water Resistant	PG16	Bottom Entry Top or Bottom Entry	Cable Cable to Cable
Amphenol Tuchel Industrial C146 10G016 600 1	Hood	Locking Clip (2) on Base Bottom	2.441 in	3.681 in	1.693 in	Aluminum Alloy Die Cast	100 °C	-40 °C	E16	IP65	Dust Tight Water Resistant	PG21	Top Entry
Amphenol Tuchel Industrial C146 10G016 507 8	Hood	Locking Clip (1) on Base Bottom	2.992 in	3.681 in	1.693 in	Aluminum Die Cast	100 °C	-40 °C	E16	IP65	Dust Tight Water Resistant	PG29	Side Entry
Amphenol Tuchel Industrial C146 10G016 501 8	Hood	Locking Clip (2) on Base Bottom	2.992 in	3.681 in	1.693 in	Aluminum Die Cast	100 °C	-40 °C	E16	IP65	Dust Tight Water Resistant	PG29	Side Entry
Amphenol Tuchel Industrial C146 10G016 902 8	Hood	Locking Clip (2) on Base Bottom	2.992 in	3.681 in	1.693 in	Aluminum Die Cast	100 °C	-40 °C	E16	IP65	Dust Tight Water Resistant	PG21	Dual Top Entry
