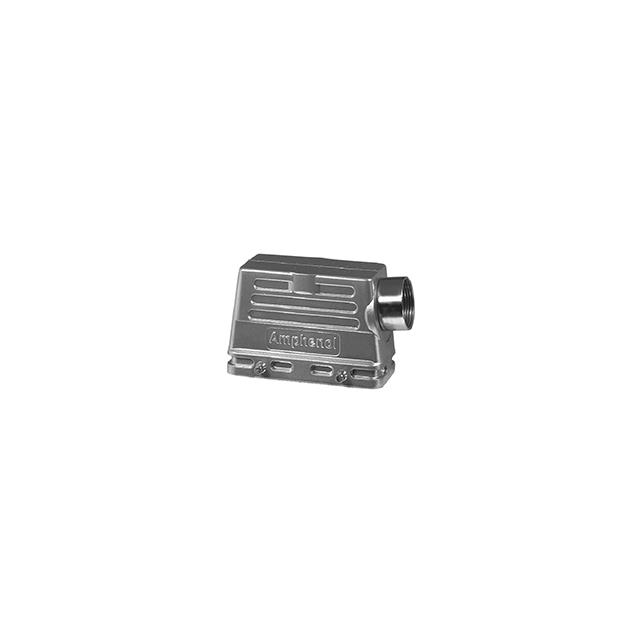

C146 10G016 500 1
ActiveAmphenol Tuchel Industrial
CONN HOOD SIDE ENTRY SZE16 PG21
Deep-Dive with AI
Search across all available documentation for this part.
C146 10G016 500 1
ActiveAmphenol Tuchel Industrial
CONN HOOD SIDE ENTRY SZE16 PG21
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C146 10G016 500 1 |
|---|---|
| Connector Type | Hood |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size | E16 |
| Size / Dimension [x] | 93.5 mm |
| Size / Dimension [x] | 3.681 " |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 2.441 " |
| Size / Dimension [z] | 62 mm |
| Style | Side Entry |
| Thread Size | PG21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 40 | $ 18.23 | |
Description
General part information
C146 10G016 500 1
Hood Connector Side Entry PG21 E16 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
No documents available
