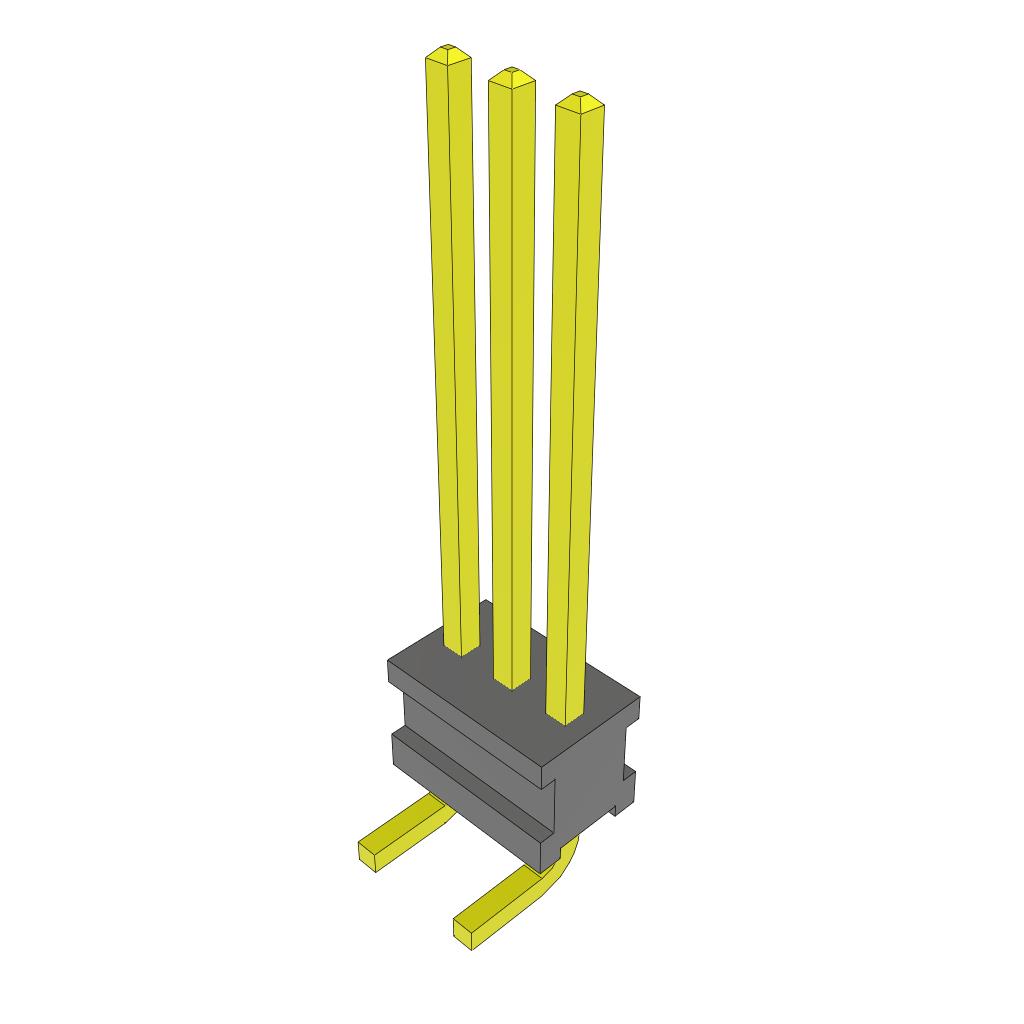

FTR-103-57-G-S

Active

Samtec Inc.

CONN HEADER SMD 3POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFTR Datasheet Datasheet +2

FTR-103-57-G-S

Active

Samtec Inc.

CONN HEADER SMD 3POS 1.27MM

Deep-Dive with AI

DocumentsFTR Datasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTR-103-57-G-S

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	10.92 mm
Contact Length - Mating	0.43 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

FTR-103 Series

Part	Insulation Height	Insulation Height	Contact Type	Insulation Color	Shrouding	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish - Post	Insulation Material	Contact Material	Number of Positions Loaded	Current Rating (Amps)	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Rows	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Mounting Type	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded [custom]
Samtec Inc. FTR-103-52-L-S	0.1 in	2.54 mm	Male Pin	Black	Unshrouded	0.05 in	1.27 mm	Square	Tin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	All	3.1 A	Push-Pull	Header	-55 °C	125 °C	Solder	1	Gold	5.21 mm	0.205 in	10 çin	0.25 çm	UL94 V-0	Surface Mount
Samtec Inc. FTR-103-52-S-S	0.1 in	2.54 mm	Male Pin	Black	Unshrouded	0.05 in	1.27 mm	Square	Tin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	All	3.1 A	Push-Pull	Header	-55 °C	125 °C	Solder	1	Gold	5.21 mm	0.205 in	30 Áin	0.76 Ám	UL94 V-0	Surface Mount
Samtec Inc. FTR-103-52-T-D	0.1 in	2.54 mm	Male Pin	Black	Unshrouded	0.05 in	1.27 mm	Square	Tin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	All	3.1 A	Push-Pull	Header	-55 °C	125 °C	Solder	2		5.21 mm	0.205 in			UL94 V-0	Surface Mount	6	2.54 mm	0.1 in
Samtec Inc. FTR-103-57-G-S	0.1 in	2.54 mm	Male Pin	Black	Unshrouded	0.05 in	1.27 mm	Square	Gold	Liquid Crystal Polymer (LCP)	Phosphor Bronze	All	3.1 A	Push-Pull	Header	-55 °C	125 °C	Solder	1	Gold	0.43 in		10 çin	0.25 çm	UL94 V-0	Surface Mount				10.92 mm	3 µin	0.076 µm
Samtec Inc. FTR-103-03-G-D-TR	0.1 in	2.54 mm	Male Pin	Black	Unshrouded	0.05 in	1.27 mm	Square	Gold	Liquid Crystal Polymer (LCP)	Phosphor Bronze	All	3.1 A	Push-Pull	Header	-55 °C	125 °C	Solder	2	Gold	3.18 mm	0.125 in	10 çin	0.25 çm	UL94 V-0	Surface Mount	6	2.54 mm	0.1 in		3 µin	0.076 µm
Samtec Inc. FTR-103-53-G-D	0.1 in	2.54 mm	Male Pin	Black	Unshrouded	0.05 in	1.27 mm	Square	Gold	Liquid Crystal Polymer (LCP)	Phosphor Bronze	All	3.1 A	Push-Pull	Header	-55 °C	125 °C	Solder	2	Gold	7.24 mm	0.285 in	10 çin	0.25 çm	UL94 V-0	Surface Mount	6	2.54 mm	0.1 in		3 µin	0.076 µm
Samtec Inc. FTR-103-51-S-S	0.1 in	2.54 mm	Male Pin	Black	Unshrouded	0.05 in	1.27 mm	Square	Tin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	All	3.1 A	Push-Pull	Header	-55 °C	125 °C	Solder	1	Gold	4.83 mm	0.19 "	30 Áin	0.76 Ám	UL94 V-0	Surface Mount
Samtec Inc. FTR-103-03-G-D-06	0.1 in	2.54 mm	Male Pin	Black	Unshrouded	0.05 in	1.27 mm	Square	Gold	Liquid Crystal Polymer (LCP)	Phosphor Bronze		3.1 A	Push-Pull	Header	-55 °C	125 °C	Solder	2	Gold	3.18 mm	0.125 in	10 çin	0.25 çm	UL94 V-0	Surface Mount	6	2.54 mm	0.1 in		3 µin	0.076 µm	5
Samtec Inc. FTR-103-03-T-D	0.1 in	2.54 mm	Male Pin	Black	Unshrouded	0.05 in	1.27 mm	Square	Tin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	All	3.1 A	Push-Pull	Header	-55 °C	125 °C	Solder	2		3.18 mm	0.125 in			UL94 V-0	Surface Mount	6	2.54 mm	0.1 in
Samtec Inc. FTR-103-55-G-D	0.1 in	2.54 mm	Male Pin	Black	Unshrouded	0.05 in	1.27 mm	Square	Gold	Liquid Crystal Polymer (LCP)	Phosphor Bronze	All	3.1 A	Push-Pull	Header	-55 °C	125 °C	Solder	2	Gold	9.91 mm	0.39 in	10 çin	0.25 çm	UL94 V-0	Surface Mount	6	2.54 mm	0.1 in		3 µin	0.076 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.20
