MB5RJN15H01

Active

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 12POS PNL RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMotionGrade M23 Hybrid Series Datasheet

MB5RJN15H01

Active

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 12POS PNL RA

Deep-Dive with AI

DocumentsMotionGrade M23 Hybrid Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB5RJN15H01

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	0.6 mm, 2 mm, 1 mm
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Backshell
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Note	Contacts Not Included
Number of Positions [custom]	1
Number of Positions [custom]	1
Number of Positions [custom]	6
Number of Positions [custom]	4
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-12
Shielding	Shielded
Type	For Male Pins

MB5RJN Series

Part	Mounting Feature	Mounting Type	Connector Type	Shell Size - Insert	Features	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Type	Insert Material	Contact Type	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Shape	Housing Color	Orientation	Contact Size	Note	Shell Material	Ingress Protection	Fastening Type	Material Flammability Rating	Number of Positions [custom]	Number of Positions	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Termination	Voltage Rating	Color	Number of Positions
Amphenol Sine Systems Corp MB5RJN0902	Flange	Panel Mount Right Angle	Receptacle Housing	M23-9	Backshell Rotatable	4	9	4	1	For Male Pins	Polyamide (PA66) Nylon 6/6	Crimp	Nickel	-20 C	130 °C	Shielded	Circular	Silver	Keyed	1 mm 2 mm	Contacts Not Included	Zinc Die Cast	IP67 - Dust Tight Waterproof	Push-Twist	UL94 V-0
Amphenol Sine Systems Corp MB5RJN15H01	Flange	Panel Mount Right Angle	Receptacle Housing	M23-12	Backshell	6		4	1	For Male Pins	Polyamide (PA66) Nylon 6/6	Crimp	Nickel	-20 C	130 °C	Shielded	Circular	Silver	Keyed	0.6 mm 1 mm 2 mm	Contacts Not Included	Zinc Die Cast	IP67 - Dust Tight Waterproof	Push-Twist	UL94 V-0	1
Amphenol Sine Systems Corp MB5RJN0801-KIT	Flange	Panel Mount Right Angle	Male Pins Receptacle	M23-8	Backshell Rotatable								Nickel	-20 C	130 °C				N			Zinc Die Cast	IP67 - Dust Tight Waterproof				8	10 A 30 A	Metal	Gold	Crimp	250 VAC	Silver
Amphenol Sine Systems Corp MB5RJN0601-KIT	Flange	Panel Mount Right Angle	Male Pins Receptacle	M23-6	Backshell Rotatable								Nickel	-20 C	130 °C				N			Zinc Die Cast	IP67 - Dust Tight Waterproof				6	28 A	Metal	Gold	Crimp	630 VAC/DC	Silver
Amphenol Sine Systems Corp MB5RJN0801	Flange	Panel Mount Right Angle	Receptacle Housing	M23-8	Backshell Rotatable	4	8	3		For Male Pins	Polyamide (PA66) Nylon 6/6	Crimp	Nickel	-20 C	130 °C	Shielded	Circular	Silver	Keyed	1 mm 2 mm	Contacts Not Included	Zinc Die Cast	IP67 - Dust Tight Waterproof	Push-Twist	UL94 V-0									PE
Amphenol Sine Systems Corp MB5RJN0802	Flange	Panel Mount Right Angle	Receptacle Housing	M23-8	Backshell Rotatable	4	8	3		For Male Pins	Polyamide (PA66) Nylon 6/6	Crimp	Nickel	-20 C	130 °C	Shielded	Circular	Silver	Keyed	1 mm 2 mm	Contacts Not Included	Zinc Die Cast	IP67 - Dust Tight Waterproof	Push-Twist	UL94 V-0									PE
Amphenol Sine Systems Corp MB5RJN0602-KIT	Flange	Panel Mount Right Angle	Male Pins Receptacle	M23-6	Backshell Rotatable								Nickel	-20 C	130 °C				N			Zinc Die Cast	IP67 - Dust Tight Waterproof				6	28 A	Metal	Gold	Crimp	630 VAC/DC	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.79
		10	$ 53.95
		25	$ 51.87
		50	$ 50.14
		100	$ 47.38

Description

General part information

MB5RJN Series

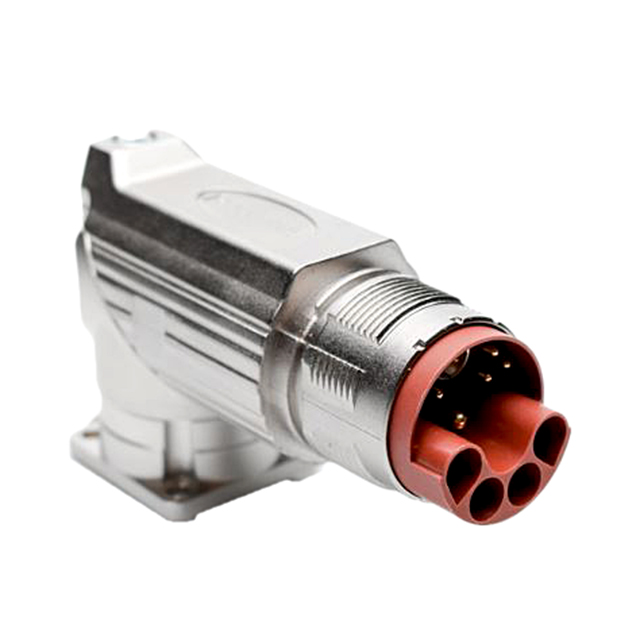

12 (6 + 4 Power + 1 Quadrax + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell

Documents

Technical documentation and resources

MotionGrade M23 Hybrid Series

Datasheet
