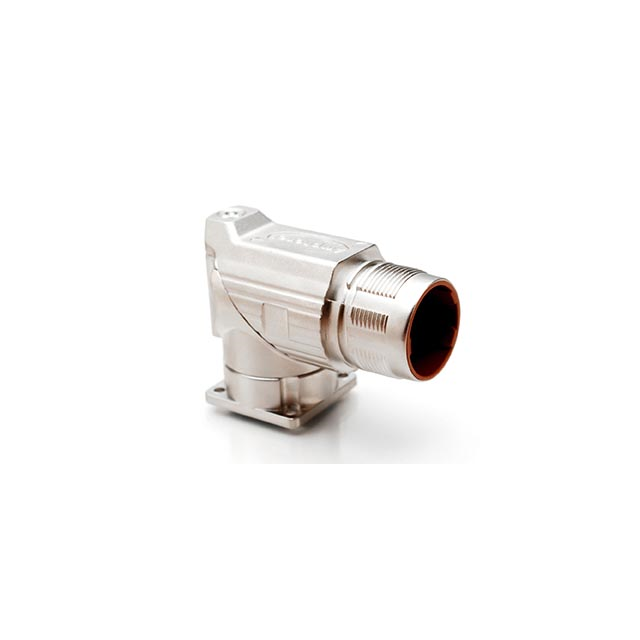

MB5RJN0902

Active

Amphenol Sine Systems Corp

9 POSITION 90 ROTATABLE RECEPTAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Motiongrade M23

MB5RJN0902

Active

Amphenol Sine Systems Corp

9 POSITION 90 ROTATABLE RECEPTAC

Deep-Dive with AI

DocumentsDatasheet Motiongrade M23

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB5RJN0902

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm, 2 mm
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Backshell, Rotatable
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Note	Contacts Not Included
Number of Positions [custom]	4
Number of Positions [custom]	9
Number of Positions [custom]	4
Number of Positions [custom]	1
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Shielded
Type	For Male Pins

MB5RJN Series

Part	Mounting Feature	Mounting Type	Connector Type	Shell Size - Insert	Features	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Type	Insert Material	Contact Type	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Shape	Housing Color	Orientation	Contact Size	Note	Shell Material	Ingress Protection	Fastening Type	Material Flammability Rating	Number of Positions [custom]	Number of Positions	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Termination	Voltage Rating	Color	Number of Positions
Amphenol Sine Systems Corp MB5RJN0902	Flange	Panel Mount Right Angle	Receptacle Housing	M23-9	Backshell Rotatable	4	9	4	1	For Male Pins	Polyamide (PA66) Nylon 6/6	Crimp	Nickel	-20 C	130 °C	Shielded	Circular	Silver	Keyed	1 mm 2 mm	Contacts Not Included	Zinc Die Cast	IP67 - Dust Tight Waterproof	Push-Twist	UL94 V-0
Amphenol Sine Systems Corp MB5RJN15H01	Flange	Panel Mount Right Angle	Receptacle Housing	M23-12	Backshell	6		4	1	For Male Pins	Polyamide (PA66) Nylon 6/6	Crimp	Nickel	-20 C	130 °C	Shielded	Circular	Silver	Keyed	0.6 mm 1 mm 2 mm	Contacts Not Included	Zinc Die Cast	IP67 - Dust Tight Waterproof	Push-Twist	UL94 V-0	1
Amphenol Sine Systems Corp MB5RJN0801-KIT	Flange	Panel Mount Right Angle	Male Pins Receptacle	M23-8	Backshell Rotatable								Nickel	-20 C	130 °C				N			Zinc Die Cast	IP67 - Dust Tight Waterproof				8	10 A 30 A	Metal	Gold	Crimp	250 VAC	Silver
Amphenol Sine Systems Corp MB5RJN0601-KIT	Flange	Panel Mount Right Angle	Male Pins Receptacle	M23-6	Backshell Rotatable								Nickel	-20 C	130 °C				N			Zinc Die Cast	IP67 - Dust Tight Waterproof				6	28 A	Metal	Gold	Crimp	630 VAC/DC	Silver
Amphenol Sine Systems Corp MB5RJN0801	Flange	Panel Mount Right Angle	Receptacle Housing	M23-8	Backshell Rotatable	4	8	3		For Male Pins	Polyamide (PA66) Nylon 6/6	Crimp	Nickel	-20 C	130 °C	Shielded	Circular	Silver	Keyed	1 mm 2 mm	Contacts Not Included	Zinc Die Cast	IP67 - Dust Tight Waterproof	Push-Twist	UL94 V-0									PE
Amphenol Sine Systems Corp MB5RJN0802	Flange	Panel Mount Right Angle	Receptacle Housing	M23-8	Backshell Rotatable	4	8	3		For Male Pins	Polyamide (PA66) Nylon 6/6	Crimp	Nickel	-20 C	130 °C	Shielded	Circular	Silver	Keyed	1 mm 2 mm	Contacts Not Included	Zinc Die Cast	IP67 - Dust Tight Waterproof	Push-Twist	UL94 V-0									PE
Amphenol Sine Systems Corp MB5RJN0602-KIT	Flange	Panel Mount Right Angle	Male Pins Receptacle	M23-6	Backshell Rotatable								Nickel	-20 C	130 °C				N			Zinc Die Cast	IP67 - Dust Tight Waterproof				6	28 A	Metal	Gold	Crimp	630 VAC/DC	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 19.79

Description

General part information

MB5RJN Series

9 (4 + 4 Power + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
