SST-10-IRD-B90H-S810

Active

Luminus Devices Inc.

IR MOD SST10 810NM TOP VIEW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.51
		10	$ 3.19
		100	$ 2.61
	Digi-Reel®	1	$ 4.51
		10	$ 3.19
		100	$ 2.61
	Tape & Reel (TR)	500	$ 2.20
		1000	$ 2.02
		2500	$ 1.94
		5000	$ 1.90

Description

General part information

SST-10 Series

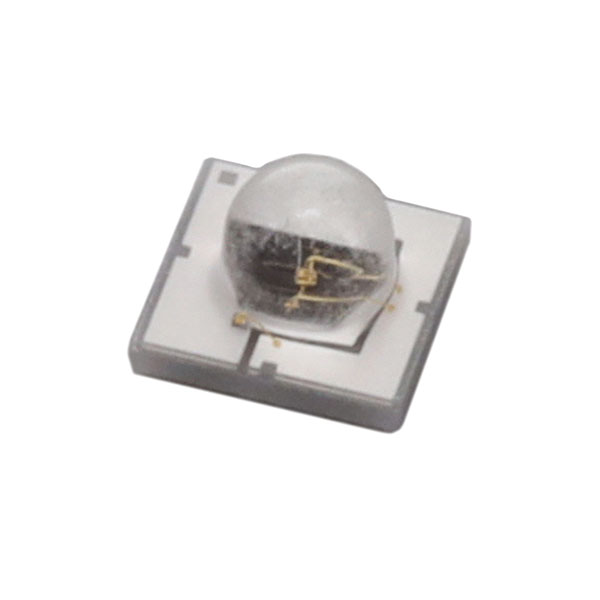

Infrared (IR) Emitter 815nm 3V 1.5A 770mW/sr @ 1A (Typ) 90° 1414 (3535 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SST-10-IRD-B90H-S810	SST-10 Series

Color	-	Blue, Red, Green
Current - DC Forward (If) (Max)	-	1 A
Current - DC Forward (If) (Max) [Max]	1.5 A	1.5 - 500 A
Current - Max	-	1.5 A
Current - Test	-	350 mA
Height - Seated (Max)	-	2.03 - 2.33 mm
Height - Seated (Max)	-	0.08 - 0.092 in
Luminous Flux @ Current/Temperature	-	250 - 290 mW
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	115 °C	100 - 212 °C
Orientation	Top View	Top View
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414, 2-SMD, No Lead Exposed Pad
Radiant Intensity (Ie) Min @ If [Min]	770 mW/sr	450 - 770 mW/sr
Size / Dimension	-	3.45 mm
Size / Dimension	-	0.136 in
Size / Dimension	-	0.136 in
Size / Dimension	-	3.45 mm
Supplier Device Package	-	3535
Thermal Resistance of Package	-	5.3 °C/W
Type	Infrared (IR)	Infrared (IR), Ultraviolet (UV)
Viewing Angle	-	120 - 130 °
Viewing Angle [custom]	90 °	90 °
Voltage - Forward (Vf) (Typ)	3 V	1.5 - 3.7 V
Wavelength	815 nm	385 - 850 nm
Wavelength	-	370 - 480 nm
Wavelength	-	365 - 460 nm

SST-10 Series

LED SST10 BLUE 470NM 3535

Part	Color	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Viewing Angle [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Wavelength [Max]	Wavelength	Wavelength [Min]	Thermal Resistance of Package [custom]	Current - Test	Package / Case	Package / Case	Current - Max [Max]	Orientation	Type	Operating Temperature	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max) [Max]	Viewing Angle	Current - DC Forward (If) (Max)	Luminous Flux @ Current/Temperature
Luminus Devices Inc. SST-10-SB-B90-M470	Blue	3535	3.45 mm	0.136 in	0.136 in	3.45 mm	Surface Mount	90 °	2.33 mm	0.092 in	2.85 V	480 nm	470 nm	460 nm	5.3 °C/W	350 mA	3535 Metric	1414	1.5 A
Luminus Devices Inc. SST-10-IRD-B90H-S810							Surface Mount	90 °			3 V		815 nm				3535 Metric	1414		Top View	Infrared (IR)	115 °C	770 mW/sr	1.5 A
Luminus Devices Inc. SST-10-IR-B130-K850-00							Surface Mount				1.5 V		850 nm					2-SMD, No Lead Exposed Pad		Top View	Infrared (IR)			1.5 A	130 °
Luminus Devices Inc. SST-10-UV-B130-G385-00							Surface Mount				3.4 V		385 nm				3535 Metric	1414		Top View	Ultraviolet (UV)	100 °C		1.5 A	130 °
Luminus Devices Inc. SST-10-SB-B130-M470	Blue	3535	3.45 mm	0.136 in	0.136 in	3.45 mm	Surface Mount		2.03 mm	0.08 in	2.85 V	480 nm	470 nm	460 nm	5.3 °C/W	350 mA	3535 Metric	1414	1.5 A						130 °
Luminus Devices Inc. SST-10-UV-B130-F405-00							Surface Mount				3.3 V	410 nm	405 nm	400 nm			3535 Metric	1414		Top View	Ultraviolet (UV)	100 °C		1.5 A	130 °
Luminus Devices Inc. SST-10-UV-B130-F365-00							Surface Mount				3.7 V	370 nm		365 nm						Top View	Ultraviolet (UV)	212 °F			130 °	1 A
Luminus Devices Inc. SST-10-R-B130-G630	Red	3535	3.45 mm	0.136 in	0.136 in	3.45 mm	Surface Mount		2.03 mm	0.08 in	2.1 V					350 mA	3535 Metric	1414	1.5 A						130 °		290 mW
Luminus Devices Inc. SST-10-IRD-B130-U850							Surface Mount				3 V		850 nm				3535 Metric	1414		Top View	Infrared (IR)	115 °C	450 mW/sr	1.5 A	130 °
Luminus Devices Inc. SST-10-UV-A130-G395-00							Surface Mount				3.4 V		395 nm				3535 Metric	1414		Top View	Ultraviolet (UV)			500 mA	120 °
