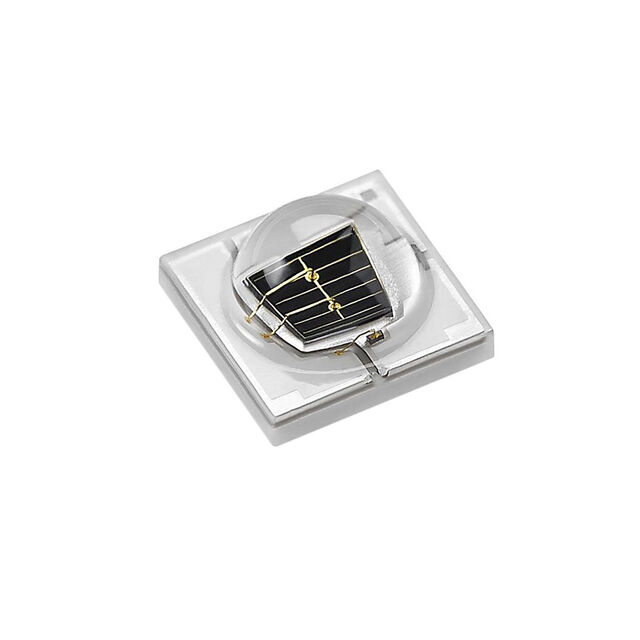

SST-10-IRD-B130-U850

Obsolete

Luminus Devices Inc.

IR MOD SST10 850NM TOP VIEW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SST-10-IRD-B130-U850	SST-10 Series

Color	-	Blue, Red, Green
Current - DC Forward (If) (Max)	-	1 A
Current - DC Forward (If) (Max) [Max]	1.5 A	1.5 - 500 A
Current - Max	-	1.5 A
Current - Test	-	350 mA
Height - Seated (Max)	-	2.03 - 2.33 mm
Height - Seated (Max)	-	0.08 - 0.092 in
Luminous Flux @ Current/Temperature	-	250 - 290 mW
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	115 °C	100 - 212 °C
Orientation	Top View	Top View
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414, 2-SMD, No Lead Exposed Pad
Radiant Intensity (Ie) Min @ If [Min]	450 mW/sr	450 - 770 mW/sr
Size / Dimension	-	3.45 mm
Size / Dimension	-	0.136 in
Size / Dimension	-	0.136 in
Size / Dimension	-	3.45 mm
Supplier Device Package	-	3535
Thermal Resistance of Package	-	5.3 °C/W
Type	Infrared (IR)	Infrared (IR), Ultraviolet (UV)
Viewing Angle	130 °	120 - 130 °
Viewing Angle	-	90 °
Voltage - Forward (Vf) (Typ)	3 V	1.5 - 3.7 V
Wavelength	850 nm	385 - 850 nm
Wavelength	-	370 - 480 nm
Wavelength	-	365 - 460 nm

SST-10 Series

LED SST10 BLUE 470NM 3535

Part	Color	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Viewing Angle [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Wavelength [Max]	Wavelength	Wavelength [Min]	Thermal Resistance of Package [custom]	Current - Test	Package / Case	Package / Case	Current - Max [Max]	Orientation	Type	Operating Temperature	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max) [Max]	Viewing Angle	Current - DC Forward (If) (Max)	Luminous Flux @ Current/Temperature
Luminus Devices Inc. SST-10-SB-B90-M470	Blue	3535	3.45 mm	0.136 in	0.136 in	3.45 mm	Surface Mount	90 °	2.33 mm	0.092 in	2.85 V	480 nm	470 nm	460 nm	5.3 °C/W	350 mA	3535 Metric	1414	1.5 A
Luminus Devices Inc. SST-10-IRD-B90H-S810							Surface Mount	90 °			3 V		815 nm				3535 Metric	1414		Top View	Infrared (IR)	115 °C	770 mW/sr	1.5 A
Luminus Devices Inc. SST-10-IR-B130-K850-00							Surface Mount				1.5 V		850 nm					2-SMD, No Lead Exposed Pad		Top View	Infrared (IR)			1.5 A	130 °
Luminus Devices Inc. SST-10-UV-B130-G385-00							Surface Mount				3.4 V		385 nm				3535 Metric	1414		Top View	Ultraviolet (UV)	100 °C		1.5 A	130 °
Luminus Devices Inc. SST-10-SB-B130-M470	Blue	3535	3.45 mm	0.136 in	0.136 in	3.45 mm	Surface Mount		2.03 mm	0.08 in	2.85 V	480 nm	470 nm	460 nm	5.3 °C/W	350 mA	3535 Metric	1414	1.5 A						130 °
Luminus Devices Inc. SST-10-UV-B130-F405-00							Surface Mount				3.3 V	410 nm	405 nm	400 nm			3535 Metric	1414		Top View	Ultraviolet (UV)	100 °C		1.5 A	130 °
Luminus Devices Inc. SST-10-UV-B130-F365-00							Surface Mount				3.7 V	370 nm		365 nm						Top View	Ultraviolet (UV)	212 °F			130 °	1 A
Luminus Devices Inc. SST-10-R-B130-G630	Red	3535	3.45 mm	0.136 in	0.136 in	3.45 mm	Surface Mount		2.03 mm	0.08 in	2.1 V					350 mA	3535 Metric	1414	1.5 A						130 °		290 mW
Luminus Devices Inc. SST-10-IRD-B130-U850							Surface Mount				3 V		850 nm				3535 Metric	1414		Top View	Infrared (IR)	115 °C	450 mW/sr	1.5 A	130 °
Luminus Devices Inc. SST-10-UV-A130-G395-00							Surface Mount				3.4 V		395 nm				3535 Metric	1414		Top View	Ultraviolet (UV)			500 mA	120 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SST-10 Series

Infrared (IR) Emitter 850nm 3V 1.5A 450mW/sr @ 1A (Typ) 130° 1414 (3535 Metric)
