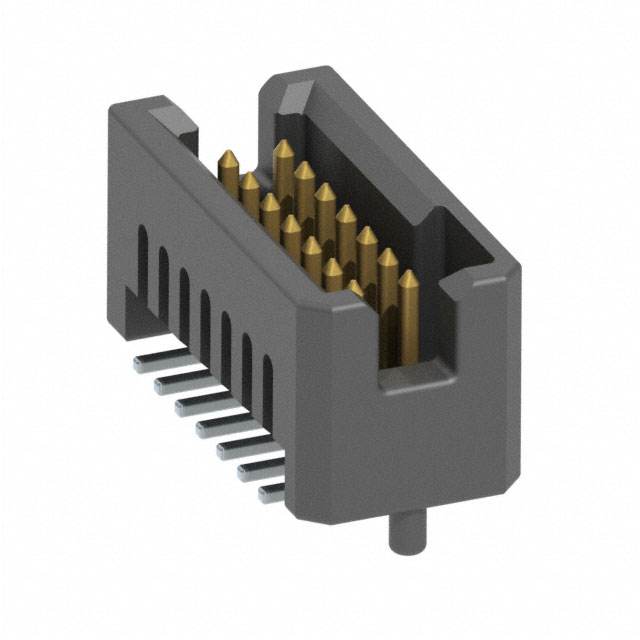

TFM-107-02-L-D-A-TR

Active

Samtec Inc.

CONN HEADER SMD 14POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

TFM-107-02-L-D-A-TR

Active

Samtec Inc.

CONN HEADER SMD 14POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFM-107-02-L-D-A-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Mating	3.33 mm
Contact Length - Mating	0.131 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	275 VAC

TFM-107 Series

...

Part	Insulation Height	Insulation Height	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Termination	Number of Positions Loaded	Voltage Rating	Insulation Material	Number of Positions	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Shape	Mounting Type	Connector Type	Insulation Color	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Style	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Shrouding	Fastening Type	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Samtec Inc. TFM-107-01-LM-D-WT	5.6 mm	0.22 in	2	0.05 in	1.27 mm	Male Pin	Solder	All	275 VAC	Liquid Crystal Polymer (LCP)	14	Phosphor Bronze	-55 °C	125 °C	Tin	UL94 V-0	3.33 mm	0.131 in	Square	Through Hole	Header	Black	Gold	0.05 in	1.27 mm	Board to Board Cable	0.078 in	1.98 mm	2.9 A	Shrouded - 4 Wall	Push-Pull	Solder Retention	15 µin	0.38 µm
Samtec Inc. TFM-107-02-L-D-P-TR	5.6 mm	0.22 in	2	0.05 in	1.27 mm	Male Pin	Solder	All	275 VAC	Liquid Crystal Polymer (LCP)	14	Phosphor Bronze	-55 °C	125 °C	Tin	UL94 V-0	3.33 mm	0.131 in	Square	Surface Mount	Header	Black	Gold	0.05 in	1.27 mm	Board to Board Cable			2.9 A	Shrouded - 4 Wall	Push-Pull	Pick and Place	15 µin	0.38 µm
Samtec Inc. TFM-107-02-F-D-A-K-TR	5.6 mm	0.22 in	2	0.05 in	1.27 mm	Male Pin	Solder	All	275 VAC	Liquid Crystal Polymer (LCP)	14	Phosphor Bronze	-55 °C	125 °C	Tin	UL94 V-0	3.33 mm	0.131 in	Square	Surface Mount	Header	Black	Gold	0.05 in	1.27 mm	Board to Board Cable			2.9 A	Shrouded - 4 Wall	Push-Pull	Board Guide Pick and Place	3 µin	0.076 µm
Samtec Inc. TFM-107-01-S-S-LC	5.6 mm	0.22 in	1			Male Pin	Solder	All	275 VAC	Liquid Crystal Polymer (LCP)	7	Phosphor Bronze	-55 °C	125 °C	Tin	UL94 V-0	3.33 mm	0.131 in	Square	Through Hole	Header	Black	Gold	0.05 in	1.27 mm	Board to Board Cable	0.078 in	1.98 mm	2.9 A	Shrouded - 4 Wall	Push-Pull		30 Áin	0.76 Ám
Samtec Inc. TFM-107-01-S-S	5.6 mm	0.22 in	1			Male Pin	Solder	All	275 VAC	Liquid Crystal Polymer (LCP)	7	Phosphor Bronze	-55 °C	125 °C	Tin	UL94 V-0	3.33 mm	0.131 in	Square	Through Hole	Header	Black	Gold	0.05 in	1.27 mm	Board to Board Cable	0.078 in	1.98 mm	2.9 A	Shrouded - 4 Wall	Push-Pull		30 Áin	0.76 Ám
Samtec Inc. TFM-107-01-S-D-LC	5.6 mm	0.22 in	2	0.05 in	1.27 mm	Male Pin	Solder	All	275 VAC	Liquid Crystal Polymer (LCP)	14	Phosphor Bronze	-55 °C	125 °C	Tin	UL94 V-0	3.33 mm	0.131 in	Square	Through Hole	Header	Black	Gold	0.05 in	1.27 mm	Board to Board Cable	0.078 in	1.98 mm	2.9 A	Shrouded - 4 Wall	Push-Pull		30 Áin	0.76 Ám
Samtec Inc. TFM-107-02-L-D-A-TR	5.6 mm	0.22 in	2	0.05 in	1.27 mm	Male Pin	Solder	All	275 VAC	Liquid Crystal Polymer (LCP)	14	Phosphor Bronze	-55 °C	125 °C	Tin	UL94 V-0	3.33 mm	0.131 in	Square	Surface Mount	Header	Black	Gold	0.05 in	1.27 mm	Board to Board Cable			2.9 A	Shrouded - 4 Wall	Push-Pull	Board Guide	15 µin	0.38 µm
Samtec Inc. TFM-107-01-STL-D-WT	5.6 mm	0.22 in	2	0.05 in	1.27 mm	Male Pin	Solder	All	275 VAC	Liquid Crystal Polymer (LCP)	14	Phosphor Bronze	-55 °C	125 °C	Tin	UL94 V-0	3.33 mm	0.131 in	Square	Through Hole	Header	Black	Gold	0.05 in	1.27 mm	Board to Board Cable	0.078 in	1.98 mm	2.9 A	Shrouded - 4 Wall	Push-Pull	Solder Retention	30 Áin	0.76 Ám
Samtec Inc. TFM-107-01-STL-D-A	5.6 mm	0.22 in	2	0.05 in	1.27 mm	Male Pin	Solder	All	275 VAC	Liquid Crystal Polymer (LCP)	14	Phosphor Bronze	-55 °C	125 °C	Tin	UL94 V-0	3.33 mm	0.131 in	Square	Through Hole	Header	Black	Gold	0.05 in	1.27 mm	Board to Board Cable	0.078 in	1.98 mm	2.9 A	Shrouded - 4 Wall	Push-Pull	Board Guide	30 Áin	0.76 Ám
Samtec Inc. TFM-107-01-S-D	5.6 mm	0.22 in	2	0.05 in	1.27 mm	Male Pin	Solder	All	275 VAC	Liquid Crystal Polymer (LCP)	14	Phosphor Bronze	-55 °C	125 °C	Tin	UL94 V-0	3.33 mm	0.131 in	Square	Through Hole	Header	Black	Gold	0.05 in	1.27 mm	Board to Board Cable	0.078 in	1.98 mm	2.9 A	Shrouded - 4 Wall	Push-Pull		30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	450	$ 1.95

Description

General part information

TFM-107 Series

Connector Header Surface Mount 14 position 0.050" (1.27mm)
