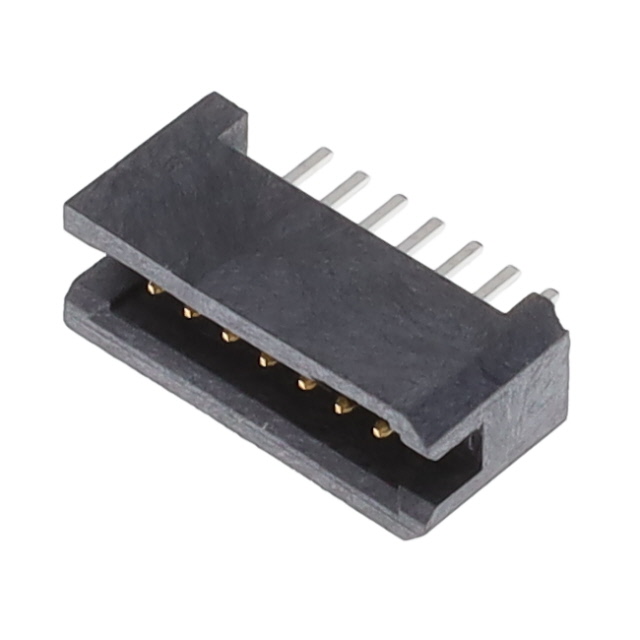

TFM-107-01-S-S
ActiveSamtec Inc.
CONN HEADER VERT 7POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
TFM-107-01-S-S
ActiveSamtec Inc.
CONN HEADER VERT 7POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TFM-107-01-S-S |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Mating | 3.33 mm |
| Contact Length - Mating | 0.131 in |
| Contact Length - Post [x] | 0.078 in |
| Contact Length - Post [x] | 1.98 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.9 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 5.6 mm |
| Insulation Height | 0.22 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 275 VAC |
TFM-107 Series
...
| Part | Insulation Height | Insulation Height | Number of Rows | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Termination | Number of Positions Loaded | Voltage Rating | Insulation Material | Number of Positions | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Material Flammability Rating | Contact Length - Mating | Contact Length - Mating | Contact Shape | Mounting Type | Connector Type | Insulation Color | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Style | Contact Length - Post [x] | Contact Length - Post [x] | Current Rating (Amps) | Shrouding | Fastening Type | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 5.6 mm | 0.22 in | 2 | 0.05 in | 1.27 mm | Male Pin | Solder | All | 275 VAC | Liquid Crystal Polymer (LCP) | 14 | Phosphor Bronze | -55 °C | 125 °C | Tin | UL94 V-0 | 3.33 mm | 0.131 in | Square | Through Hole | Header | Black | Gold | 0.05 in | 1.27 mm | Board to Board Cable | 0.078 in | 1.98 mm | 2.9 A | Shrouded - 4 Wall | Push-Pull | Solder Retention | 15 µin | 0.38 µm |
Samtec Inc. | 5.6 mm | 0.22 in | 2 | 0.05 in | 1.27 mm | Male Pin | Solder | All | 275 VAC | Liquid Crystal Polymer (LCP) | 14 | Phosphor Bronze | -55 °C | 125 °C | Tin | UL94 V-0 | 3.33 mm | 0.131 in | Square | Surface Mount | Header | Black | Gold | 0.05 in | 1.27 mm | Board to Board Cable | 2.9 A | Shrouded - 4 Wall | Push-Pull | Pick and Place | 15 µin | 0.38 µm | ||
Samtec Inc. | 5.6 mm | 0.22 in | 2 | 0.05 in | 1.27 mm | Male Pin | Solder | All | 275 VAC | Liquid Crystal Polymer (LCP) | 14 | Phosphor Bronze | -55 °C | 125 °C | Tin | UL94 V-0 | 3.33 mm | 0.131 in | Square | Surface Mount | Header | Black | Gold | 0.05 in | 1.27 mm | Board to Board Cable | 2.9 A | Shrouded - 4 Wall | Push-Pull | Board Guide Pick and Place | 3 µin | 0.076 µm | ||
Samtec Inc. | 5.6 mm | 0.22 in | 1 | Male Pin | Solder | All | 275 VAC | Liquid Crystal Polymer (LCP) | 7 | Phosphor Bronze | -55 °C | 125 °C | Tin | UL94 V-0 | 3.33 mm | 0.131 in | Square | Through Hole | Header | Black | Gold | 0.05 in | 1.27 mm | Board to Board Cable | 0.078 in | 1.98 mm | 2.9 A | Shrouded - 4 Wall | Push-Pull | 30 Áin | 0.76 Ám | |||
Samtec Inc. | 5.6 mm | 0.22 in | 1 | Male Pin | Solder | All | 275 VAC | Liquid Crystal Polymer (LCP) | 7 | Phosphor Bronze | -55 °C | 125 °C | Tin | UL94 V-0 | 3.33 mm | 0.131 in | Square | Through Hole | Header | Black | Gold | 0.05 in | 1.27 mm | Board to Board Cable | 0.078 in | 1.98 mm | 2.9 A | Shrouded - 4 Wall | Push-Pull | 30 Áin | 0.76 Ám | |||
Samtec Inc. | 5.6 mm | 0.22 in | 2 | 0.05 in | 1.27 mm | Male Pin | Solder | All | 275 VAC | Liquid Crystal Polymer (LCP) | 14 | Phosphor Bronze | -55 °C | 125 °C | Tin | UL94 V-0 | 3.33 mm | 0.131 in | Square | Through Hole | Header | Black | Gold | 0.05 in | 1.27 mm | Board to Board Cable | 0.078 in | 1.98 mm | 2.9 A | Shrouded - 4 Wall | Push-Pull | 30 Áin | 0.76 Ám | |
Samtec Inc. | 5.6 mm | 0.22 in | 2 | 0.05 in | 1.27 mm | Male Pin | Solder | All | 275 VAC | Liquid Crystal Polymer (LCP) | 14 | Phosphor Bronze | -55 °C | 125 °C | Tin | UL94 V-0 | 3.33 mm | 0.131 in | Square | Surface Mount | Header | Black | Gold | 0.05 in | 1.27 mm | Board to Board Cable | 2.9 A | Shrouded - 4 Wall | Push-Pull | Board Guide | 15 µin | 0.38 µm | ||
Samtec Inc. | 5.6 mm | 0.22 in | 2 | 0.05 in | 1.27 mm | Male Pin | Solder | All | 275 VAC | Liquid Crystal Polymer (LCP) | 14 | Phosphor Bronze | -55 °C | 125 °C | Tin | UL94 V-0 | 3.33 mm | 0.131 in | Square | Through Hole | Header | Black | Gold | 0.05 in | 1.27 mm | Board to Board Cable | 0.078 in | 1.98 mm | 2.9 A | Shrouded - 4 Wall | Push-Pull | Solder Retention | 30 Áin | 0.76 Ám |
Samtec Inc. | 5.6 mm | 0.22 in | 2 | 0.05 in | 1.27 mm | Male Pin | Solder | All | 275 VAC | Liquid Crystal Polymer (LCP) | 14 | Phosphor Bronze | -55 °C | 125 °C | Tin | UL94 V-0 | 3.33 mm | 0.131 in | Square | Through Hole | Header | Black | Gold | 0.05 in | 1.27 mm | Board to Board Cable | 0.078 in | 1.98 mm | 2.9 A | Shrouded - 4 Wall | Push-Pull | Board Guide | 30 Áin | 0.76 Ám |
Samtec Inc. | 5.6 mm | 0.22 in | 2 | 0.05 in | 1.27 mm | Male Pin | Solder | All | 275 VAC | Liquid Crystal Polymer (LCP) | 14 | Phosphor Bronze | -55 °C | 125 °C | Tin | UL94 V-0 | 3.33 mm | 0.131 in | Square | Through Hole | Header | Black | Gold | 0.05 in | 1.27 mm | Board to Board Cable | 0.078 in | 1.98 mm | 2.9 A | Shrouded - 4 Wall | Push-Pull | 30 Áin | 0.76 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.34 | |
| 50 | $ 1.94 | |||
| 100 | $ 1.62 | |||
| 500 | $ 1.40 | |||
| 1000 | $ 1.27 | |||
| 2000 | $ 1.24 | |||
Description
General part information
TFM-107 Series
Connector Header Through Hole 7 position 0.050" (1.27mm)
