TCMD-15-01 - TCMD-15-01

TCMD-15-01

Active

Samtec Inc.

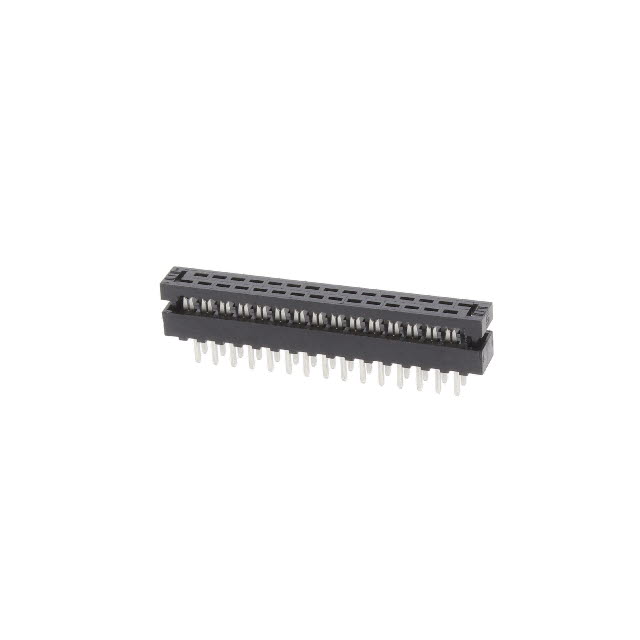

CONN IDC CONNECTOR HDR 30 POS 2MM IDT RA SIDE ENTRY CABLE MOUNT TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTCMD Datasheet Datasheet

TCMD-15-01 - TCMD-15-01

TCMD-15-01

Active

Samtec Inc.

CONN IDC CONNECTOR HDR 30 POS 2MM IDT RA SIDE ENTRY CABLE MOUNT TUBE

Deep-Dive with AI

DocumentsTCMD Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TCMD-15-01

Cable Termination	IDC
Color	Black
Connector Type	Header
Contact Finish	Tin
Contact Type	Male Pin
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	30
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge	28 AWG
Wire Type	Ribbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 5.84
		25	$ 5.06
		50	$ 4.19
		100	$ 2.91
		500	$ 2.81
Digikey	Tube	1	$ 6.21
		25	$ 5.39
		50	$ 4.56
		100	$ 3.31
		500	$ 3.30

Description

General part information

TCMD-15 Series

30 Position Rectangular Header Connector IDC Tin 28 AWG

Documents

Technical documentation and resources

TCMD Datasheet

Datasheet

TCMD-15 Series

...

Part	Shielding	Pitch - Cable	Pitch - Cable [custom]	Connector Type	Cable Termination	Pitch - Connector	Pitch - Connector	Number of Rows	Contact Finish	Number of Positions	Length	Length	Length	Pitch [x]	Pitch [x]	Contact Type	Row Spacing	Row Spacing	Mounting Type	Wire Gauge	Wire Type	Features	Color
Samtec Inc. TCMD-15-T-12.00-01-SR	Unshielded	1 mm	0.039 "	Socket to Plug	IDC	2 mm	0.079 in	2	Gold	30
Samtec Inc. TCMD-15-D-07.00-01	Unshielded	1 mm	0.039 "	Plug to Plug	IDC	2 mm	0.079 in	2	Gold	30
Samtec Inc. TCMD-15-T-24.00-01	Unshielded	1 mm	0.039 "	Socket to Plug	IDC	2 mm	0.079 in	2	Gold	30
Samtec Inc. TCMD-15-T-04.00-01-N-SR	Unshielded	1 mm	0.039 "	Socket to Plug	IDC	2 mm	0.079 in	2	Gold	30
Samtec Inc. TCMD-15-T-08.00-01-N	Unshielded	1 mm	0.039 "	Socket to Plug	IDC	2 mm	0.079 in	2	Gold	30	0.667 ft	8 in	203.2 mm
Samtec Inc. TCMD-15-T-08.00-01-N-R	Unshielded	1 mm	0.039 "	Socket to Plug Reversed	IDC	2 mm	0.079 in	2	Gold	30
Samtec Inc. TCMD-15-01				Header	IDC			2	Tin	30				0.079 in	2 mm	Male Pin	2 mm	0.079 in	Free Hanging (In-Line)	28 AWG	Ribbon Cable	Feed Through	Black
Samtec Inc. TCMD-15-S-09.00-01	Unshielded	1 mm	0.039 "	Plug to Cable	IDC	2 mm	0.079 in	2	Gold	30
Samtec Inc. TCMD-15-T-73.00-01	Unshielded	1 mm	0.039 "	Socket to Plug	IDC	2 mm	0.079 in	2	Gold	30
Samtec Inc. TCMD-15-D-03.00-01	Unshielded	1 mm	0.039 "	Plug to Plug	IDC	2 mm	0.079 in	2	Gold	30
