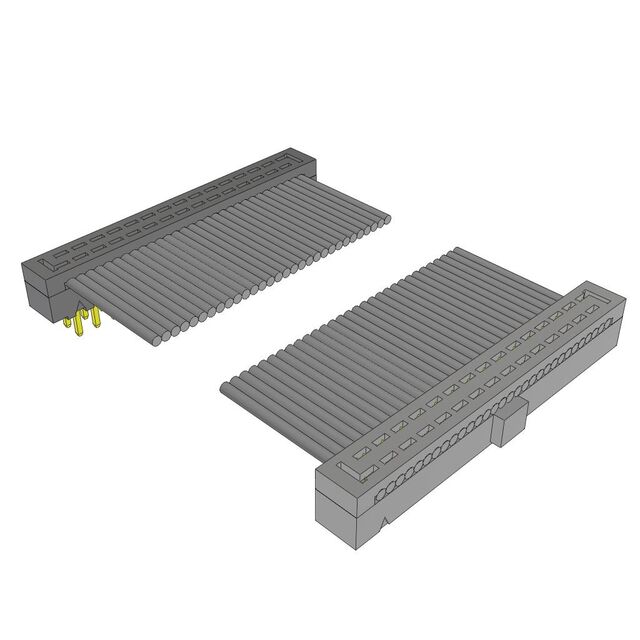

TCMD-15-T-08.00-01-N
ActiveSamtec Inc.
2MM DOUBLE ROW MALE IDC ASSEMBLY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TCMD-15-T-08.00-01-N
ActiveSamtec Inc.
2MM DOUBLE ROW MALE IDC ASSEMBLY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TCMD-15-T-08.00-01-N |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Plug |
| Contact Finish | Gold |
| Length | 0.667 ft |
| Length | 8 in |
| Length | 203.2 mm |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch - Cable | 1 mm |
| Pitch - Cable [custom] | 0.039 " |
| Pitch - Connector | 2 mm |
| Pitch - Connector | 0.079 in |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.18 | |
| 10 | $ 11.53 | |||
| 25 | $ 11.10 | |||
| 50 | $ 10.83 | |||
| 100 | $ 10.82 | |||
Description
General part information
TCMD-15 Series
30 Position Cable Assembly Rectangular Socket to Plug 0.667' (203.20mm, 8.00")
