Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.92 | |
| 10 | $ 1.82 | |||
| 25 | $ 1.78 | |||
| 50 | $ 1.75 | |||
| 100 | $ 1.73 | |||
| 250 | $ 1.70 | |||
| 500 | $ 1.68 | |||
| 1000 | $ 1.42 | |||
| 5000 | $ 1.39 | |||
General part information

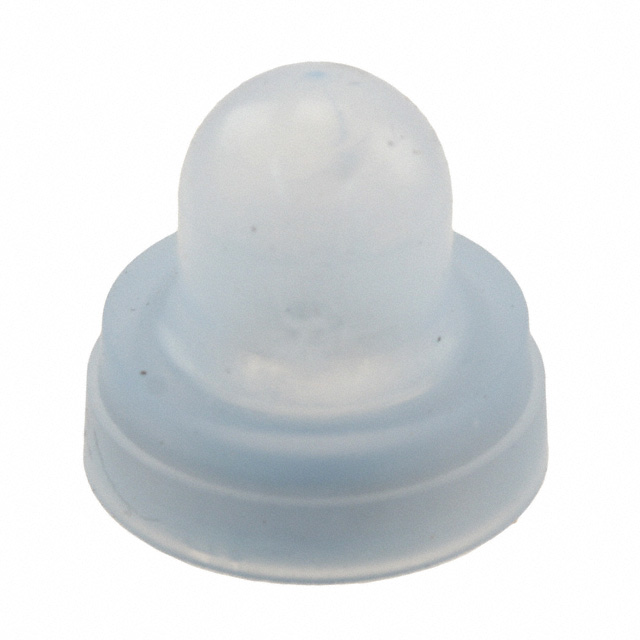

PUSHBUTTON FULL BOOT CLEAR
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | C1221/21 4 | C1221 Series |
|---|---|---|
| Actuator Diameter [diameter] | 8.11 mm | 7.6 - 10.72 mm |
| Actuator Diameter [diameter] | 0.32 in | 0.3 - 0.422 in |
| Color | Clear | Clear, Black |
| For Use With/Related Products | Multiple Series | Multiple Series |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Material | Silicone Rubber | Silicone Rubber |
| Mounting Feature | Front of Panel | Front of Panel |
| Operating Temperature [Max] | 204 °C | 204 °C |
| Operating Temperature [Min] | -62 °C | -62 °C |
| Size / Dimension | - | 0.605 - 0.609 in |
| Size / Dimension | - | 15.37 - 15.48 mm |
| Thread Size | 3/8-27 NS-2B | 3/8-27 NS-2B, 3/8-32 NEF-2B, 3/8-24 NF-2B, M10x1, M11x1 |
| Type | Pushbutton, Full Boot | Pushbutton, Full Boot |
PUSHBUTTON FULL BOOT CLEAR
| Part | Thread Size | Color | Ingress Protection | Material | Actuator Diameter [diameter] | Actuator Diameter [diameter] | For Use With/Related Products | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Type | Size / Dimension [z] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APM HEXSEAL C1221/21 4 | 3/8-27 NS-2B | Clear | IP66/IP68 | Silicone Rubber | 8.11 mm | 0.32 in | Multiple Series | -62 °C | 204 °C | Front of Panel | Pushbutton, Full Boot | ||
APM HEXSEAL C1221/23 4 | 3/8-32 NEF-2B | Clear | IP66/IP68 | Silicone Rubber | 8.11 mm | 0.32 in | Multiple Series | -62 °C | 204 °C | Front of Panel | Pushbutton, Full Boot | 0.609 in | 15.48 mm |
APM HEXSEAL C1221/22 4 | 3/8-24 NF-2B | Clear | IP66/IP68 | Silicone Rubber | 8.11 mm | 0.32 in | Multiple Series | -62 °C | 204 °C | Front of Panel | Pushbutton, Full Boot | 0.609 in | 15.48 mm |
APM HEXSEAL C1221/21 M10 THD | M10x1 | Black | IP66/IP68 | Silicone Rubber | 8.11 mm | 0.32 in | Multiple Series | -62 °C | 204 °C | Front of Panel | Pushbutton, Full Boot | ||
APM HEXSEAL C1221/25 | 3/8-27 NS-2B | Black | IP66/IP68 | Silicone Rubber | 7.6 mm | 0.3 in | Multiple Series | -62 °C | 204 °C | Front of Panel | Pushbutton, Full Boot | 0.605 in | 15.37 mm |
APM HEXSEAL C1221/27 | M11x1 | Clear | IP66/IP68 | Silicone Rubber | 10.72 mm | 0.422 in | Multiple Series | -62 °C | 204 °C | Front of Panel | Pushbutton, Full Boot |
