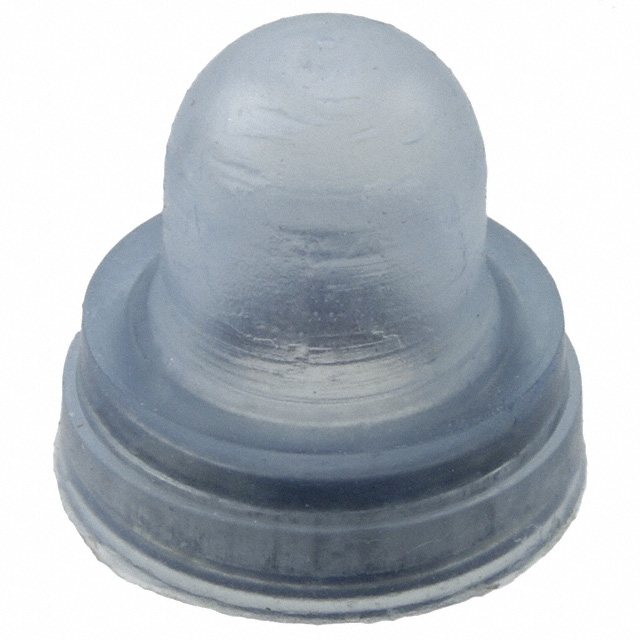

C1221/22 4

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT CLEAR

Search across all available documentation for this part.

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT CLEAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PUSHBUTTON FULL BOOT CLEAR

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	C1221/22 4	C1221 Series

Actuator Diameter [diameter]	8.11 mm	7.6 - 10.72 mm
Actuator Diameter [diameter]	0.32 in	0.3 - 0.422 in
Color	Clear	Clear, Black
For Use With/Related Products	Multiple Series	Multiple Series
Ingress Protection	IP66/IP68	IP66/IP68
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-62 °C	-62 °C
Size / Dimension [z]	0.609 in	0.605 - 0.609 in
Size / Dimension [z]	15.48 mm	15.37 - 15.48 mm
Thread Size	3/8-24 NF-2B	3/8-27 NS-2B, 3/8-32 NEF-2B, 3/8-24 NF-2B, M10x1, M11x1
Type	Pushbutton, Full Boot	Pushbutton, Full Boot

PUSHBUTTON FULL BOOT CLEAR

Part	Thread Size	Color	Ingress Protection	Material	Actuator Diameter [diameter]	Actuator Diameter [diameter]	For Use With/Related Products	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Type	Size / Dimension [z]	Size / Dimension [z]
APM HEXSEAL C1221/21 4	3/8-27 NS-2B	Clear	IP66/IP68	Silicone Rubber	8.11 mm	0.32 in	Multiple Series	-62 °C	204 °C	Front of Panel	Pushbutton, Full Boot
APM HEXSEAL C1221/23 4	3/8-32 NEF-2B	Clear	IP66/IP68	Silicone Rubber	8.11 mm	0.32 in	Multiple Series	-62 °C	204 °C	Front of Panel	Pushbutton, Full Boot	0.609 in	15.48 mm
APM HEXSEAL C1221/22 4	3/8-24 NF-2B	Clear	IP66/IP68	Silicone Rubber	8.11 mm	0.32 in	Multiple Series	-62 °C	204 °C	Front of Panel	Pushbutton, Full Boot	0.609 in	15.48 mm
APM HEXSEAL C1221/21 M10 THD	M10x1	Black	IP66/IP68	Silicone Rubber	8.11 mm	0.32 in	Multiple Series	-62 °C	204 °C	Front of Panel	Pushbutton, Full Boot
APM HEXSEAL C1221/25	3/8-27 NS-2B	Black	IP66/IP68	Silicone Rubber	7.6 mm	0.3 in	Multiple Series	-62 °C	204 °C	Front of Panel	Pushbutton, Full Boot	0.605 in	15.37 mm
APM HEXSEAL C1221/27	M11x1	Clear	IP66/IP68	Silicone Rubber	10.72 mm	0.422 in	Multiple Series	-62 °C	204 °C	Front of Panel	Pushbutton, Full Boot
