UF80AM23-BTHR-F
ActiveMechatronics Fan Group

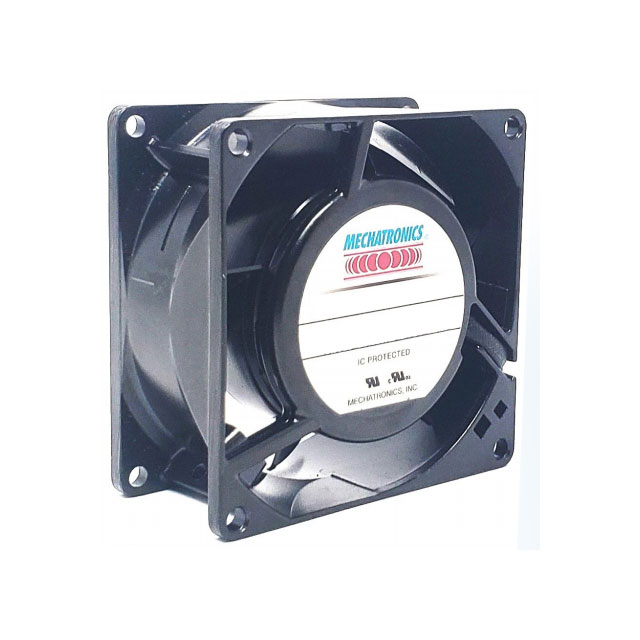

AC FAN AXIAL 80X80X38MM 230V, HI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UF80AM23-BTHR-F
ActiveMechatronics Fan Group
AC FAN AXIAL 80X80X38MM 230V, HI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UF80AM23-BTHR-F | UF80A Series |
|---|---|---|
| Air Flow | 34 CFM | 25 - 34 CFM |
| Air Flow | 0.952 m³/min | 0.7 - 0.952 mł/min |
| Approval Agency | - | CE, cUL, TUV, UL, CE |
| Bearing Type | Ball | Ball, Sleeve |
| Current Rating (Amps) | 70 mA | 50 - 120 mA |
| Fan Type | Tubeaxial | Tubeaxial |
| Features | - | Thermal Overload Protector (TOP) |
| Material - Blade | Metal | Polybutylene Terephthalate (PBT), Metal |
| Material - Frame | Aluminum | Aluminum |
| Noise | 40 dB(A) | 32 - 40 dB |
| Operating Temperature [Max] | 90 °C | 70 - 90 °C |
| Operating Temperature [Max] | 90 °C | 70 - 90 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Power (Watts) | 11 W | 9 - 12 W |
| RPM | 3250 RPM | 2400 - 3250 RPM |
| Size / Dimension [x] | 80 mm | 80 mm |
| Size / Dimension [y] | 80 mm | 80 mm |
| Static Pressure | 0.26 in H2O | 0.22 - 0.26 in H2O |
| Static Pressure | 64.8 Pa | 54.8 - 64.8 Pa |
| Termination | 2 Terminals | 2 Terminals, 2 Wire Leads |
| Voltage - Rated | 230 VAC | 115 - 230 VAC |
| Weight | - | 0.617 lb |
| Weight | - | 279.87 - 280 g |
| Width [y] | 38 mm | 38 mm |
UF80A Series
FAN AXIAL 80X38MM 230VAC TERM
| Part | Width [y] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Bearing Type | Fan Type | Weight | Weight | Voltage - Rated | Power (Watts) | Noise | Current Rating (Amps) | Air Flow | Air Flow | Termination | Material - Frame | Approval Agency | Material - Blade | RPM | Static Pressure | Static Pressure | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Fan Group UF80A23-BTLR | 38 mm | 80 mm | 80 mm | 70 °C | 70 °C | -40 °C | -40 °C | Ball | Tubeaxial | 0.617 lb | 279.87 g | 230 VAC | 12 W | 32 dB | 50 mA | 25 CFM | 0.7 mł/min | 2 Terminals | Aluminum | CE, cUL, TUV, UL | Polybutylene Terephthalate (PBT) | 2400 RPM | |||
Mechatronics Fan Group UF80AM12-BWHR-F | 38 mm | 80 mm | 80 mm | 90 °C | 90 °C | -40 °C | -40 °C | Ball | Tubeaxial | 115 VAC | 11 W | 40 dB(A) | 34 CFM | 0.952 m³/min | 2 Wire Leads | Aluminum | Metal | 3250 RPM | 0.26 in H2O | 64.8 Pa | |||||
Mechatronics Fan Group UF80AM23-BTHR-F | 38 mm | 80 mm | 80 mm | 90 °C | 90 °C | -40 °C | -40 °C | Ball | Tubeaxial | 230 VAC | 11 W | 40 dB(A) | 70 mA | 34 CFM | 0.952 m³/min | 2 Terminals | Aluminum | Metal | 3250 RPM | 0.26 in H2O | 64.8 Pa | ||||
Mechatronics Fan Group UF80A12-BWLR | 38 mm | 80 mm | 80 mm | 70 °C | 70 °C | -40 °C | -40 °C | Ball | Tubeaxial | 0.617 lb | 279.87 g | 115 VAC | 9 W | 32 dB | 100 mA | 25 CFM | 0.7 mł/min | 2 Wire Leads | Aluminum | CE, cUL, TUV, UL | Polybutylene Terephthalate (PBT) | 2400 RPM | |||
Mechatronics Fan Group UF80A23-BWHR | 38 mm | 80 mm | 80 mm | 70 °C | 70 °C | -40 °C | -40 °C | Ball | Tubeaxial | 0.617 lb | 279.87 g | 230 VAC | 12 W | 36 dB | 60 mA | 30 CFM | 0.84 mł/min | 2 Wire Leads | Aluminum | CE, cUL, TUV, UL | Polybutylene Terephthalate (PBT) | 3000 RPM | 0.22 in H2O | 54.8 Pa | |
Mechatronics Fan Group UF80AM12-BTHR-F | 38 mm | 80 mm | 80 mm | 90 °C | 90 °C | -40 °C | -40 °C | Ball | Tubeaxial | 115 VAC | 11 W | 40 dB(A) | 34 CFM | 0.952 m³/min | 2 Terminals | Aluminum | Metal | 3250 RPM | 0.26 in H2O | 64.8 Pa | |||||
Mechatronics Fan Group UF80A12-BWHR | 38 mm | 80 mm | 80 mm | 70 °C | 70 °C | -40 °C | -40 °C | Ball | Tubeaxial | 0.617 lb | 279.87 g | 115 VAC | 9 W | 36 dB | 120 mA | 30 CFM | 0.84 mł/min | 2 Wire Leads | Aluminum | CE, cUL, TUV, UL | Polybutylene Terephthalate (PBT) | 3000 RPM | 0.22 in H2O | 54.8 Pa | |
Mechatronics Fan Group UF80A12-BTLR | 38 mm | 80 mm | 80 mm | 70 °C | 70 °C | -40 °C | -40 °C | Ball | Tubeaxial | 0.617 lb | 279.87 g | 115 VAC | 9 W | 32 dB | 100 mA | 25 CFM | 0.7 mł/min | 2 Terminals | Aluminum | CE, cUL, TUV, UL | Polybutylene Terephthalate (PBT) | 2400 RPM | |||
Mechatronics Fan Group UF80A23-SWHR | 38 mm | 80 mm | 80 mm | 70 °C | 70 °C | -40 °C | -40 °C | Sleeve | Tubeaxial | 0.617 lb | 279.87 g | 230 VAC | 12 W | 36 dB | 60 mA | 30 CFM | 0.84 mł/min | 2 Wire Leads | Aluminum | CE, cUL, TUV, UL | Polybutylene Terephthalate (PBT) | 3000 RPM | 0.22 in H2O | 54.8 Pa | |
Mechatronics Fan Group UF80A12-BTHR | 38 mm | 80 mm | 80 mm | 70 °C | 70 °C | -40 °C | -40 °C | Ball | Tubeaxial | 0.617 lb | 279.87 g | 115 VAC | 9 W | 36 dB | 120 mA | 30 CFM | 0.84 mł/min | 2 Terminals | Aluminum | CE, cUL, TUV, UL | Polybutylene Terephthalate (PBT) | 3000 RPM | 0.22 in H2O | 54.8 Pa |
