BQ25504EVM-674
ActiveEVAL MODULE FOR BQ25504
Deep-Dive with AI
Search across all available documentation for this part.

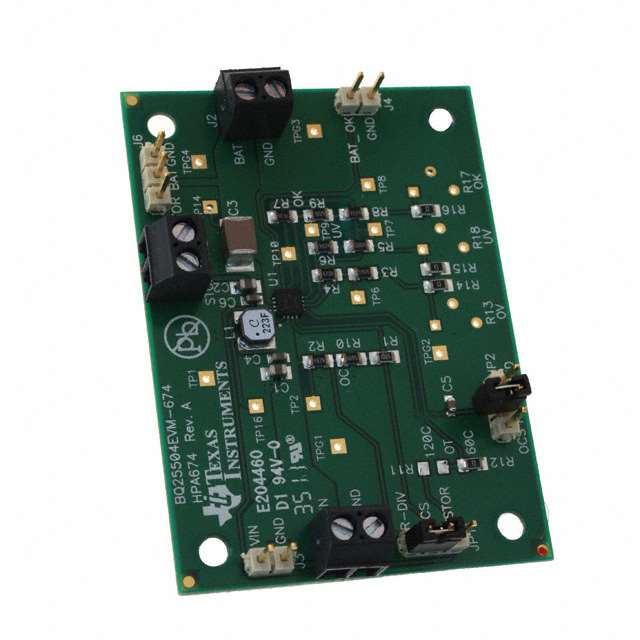

BQ25504EVM-674
ActiveEVAL MODULE FOR BQ25504
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ25504EVM-674 | BQ25504 Series |
|---|---|---|
| Applications | - | Energy Harvesting |
| Contents | Board(s) | Board(s) |
| Current - Supply | - | 330 nA |
| Embedded | False | False |
| Function | Energy Harvesting | Energy Harvesting |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 °C |
| Package / Case | - | 16-VFQFN Exposed Pad |
| Primary Attributes | Boost Converter/Charger with Battery Management | Boost Converter/Charger with Battery Management |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-VQFN (3x3) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ25504 | BQ25504 |
| Voltage - Supply | - | 2.5 V |
| Voltage - Supply | - | 5.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BQ25504 Series
Ultra Low Power Boost Converter with Battery Management for Energy Harvester | Nano-Power Management
| Part | Package / Case | Current - Supply | Voltage - Supply [Min] | Voltage - Supply [Max] | Supplier Device Package | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Supplied Contents | Contents | Function | Primary Attributes | Embedded | Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25504RGTT | 16-VFQFN Exposed Pad | 330 nA | 2.5 V | 5.25 V | 16-VQFN (3x3) | Energy Harvesting | -40 °C | 85 °C | Surface Mount | |||||||
Texas Instruments BQ25504EVM-674 | Board(s) | Board(s) | Energy Harvesting | Boost Converter/Charger with Battery Management | Power Management | BQ25504 | ||||||||||
Texas Instruments BQ25504RGTR | 16-VFQFN Exposed Pad | 330 nA | 2.5 V | 5.25 V | 16-VQFN (3x3) | Energy Harvesting | -40 °C | 85 °C | Surface Mount |
Description
General part information
BQ25504 Series
The BQ25504 device is the first of a new family of intelligent integrated energy harvesting nano-power management solutions that are well suited for meeting the special needs of ultra low power applications. The device is specifically designed to efficiently acquire and manage the microwatts (µW) to miliwatts (mW) of power generated from a variety of DC sources like photovoltaic (solar) or thermal electric generators. The BQ25504 is the first device of its kind to implement a highly efficient boost converter/charger targeted toward products and systems, such as wireless sensor networks (WSNs) which have stringent power and operational demands. The design of the BQ25504 starts with a DC-DC boost converter/charger that requires only microwatts of power to begin operating.
Once started, the boost converter/charger can effectively extract power from low-voltage output harvesters such as thermoelectric generators (TEGs) or single- or dual-cell solar panels. The boost converter can be started with V IN as low as 600 mV, and once started, can continue to harvest energy down to V IN = 130 mV.
The BQ25504 also implements a programmable maximum power point tracking sampling network to optimize the transfer of power into the device. Sampling the VIN_DC open-circuit voltage is programmed using external resistors, and held with an external capacitor (C REF).
