ADS6129 Series

Part	Input Type	Package Length	Package Name	Package Width	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Architecture	Package / Case	Number of Inputs	Operating Temperature (Min)	Operating Temperature (Max)	Reference Type	Ratio - ADC	Ratio - S/H	Mounting Type	Sampling Rate (Per Second)	Configuration	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Number of Bits	Number of A/D Converters	Data Interface	Supplied Contents	Power (Typ)	Input Voltage (Value)	Contents	Utilized IC / Part
Texas Instruments ADS6129IRGZ25	Differential	7 mm	48-VQFN	7 mm	1.7 V	1.9 V	Pipelined	48-VFQFN Exposed Pad	1	-40 °C	85 °C	External Internal	1	1	Surface Mount	250 MHz	S/H-ADC	3.6 V	3 V	12 bits	1 count	LVDS - Parallel Parallel
Texas Instruments ADS6129IRGZT	Differential	7 mm	48-VQFN	7 mm	1.7 V	1.9 V	Pipelined	48-VFQFN Exposed Pad	1	-40 °C	85 °C	External Internal	1	1	Surface Mount	250 MHz	S/H-ADC	3.6 V	3 V	12 bits	1 count	LVDS - Parallel Parallel

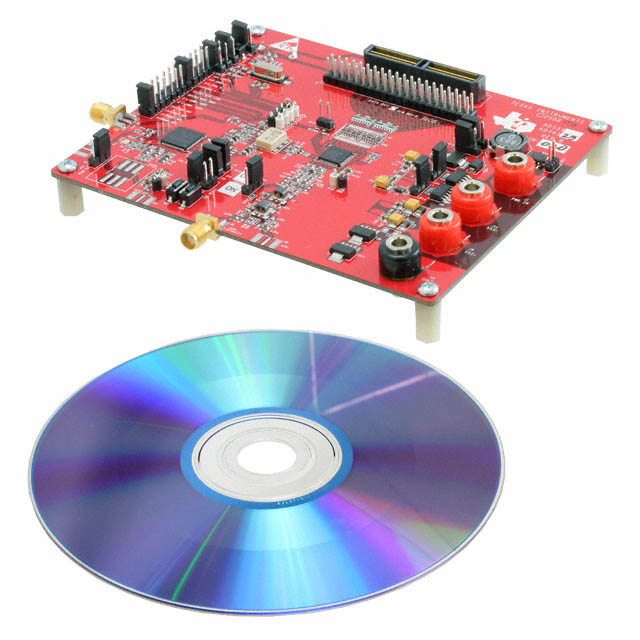

Texas Instruments ADS6129EVM																250 MHz				12 bits	1 count	Parallel Serial	Board(s)	561 mW	2 Vpp	Board	ADS6129
Texas Instruments ADS6129IRGZR	Differential	7 mm	48-VQFN	7 mm	1.7 V	1.9 V	Pipelined	48-VFQFN Exposed Pad	1	-40 °C	85 °C	External Internal	1	1	Surface Mount	250 MHz	S/H-ADC	3.6 V	3 V	12 bits	1 count	LVDS - Parallel Parallel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
