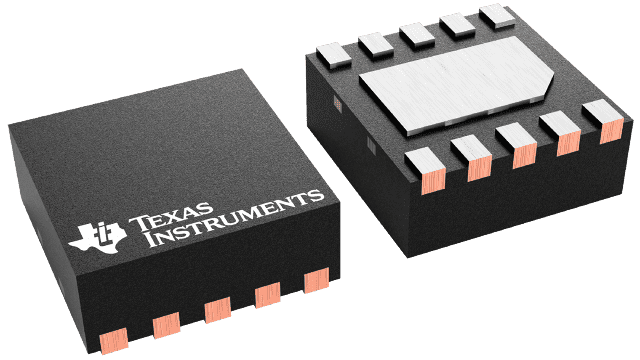

BQ24050DSQT
Active1-CELL, 1-A, LI-ION LINEAR BATTERY CHARGER WITH AUTOMATIC AC/USB DETECTION 10-WSON 0 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
BQ24050DSQT
Active1-CELL, 1-A, LI-ION LINEAR BATTERY CHARGER WITH AUTOMATIC AC/USB DETECTION 10-WSON 0 TO 125
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24050DSQT | BQ24050 Series |
|---|---|---|
| Battery Chemistry | Lithium Ion/Polymer | Lithium Ion/Polymer |
| Battery Pack Voltage | 4.2 V | 4.2 V |
| Charge Current - Max [Max] | 800 mA | 800 mA |
| Contents | - | Board(s) |
| Current - Charging | Constant - Programmable | Constant - Programmable |
| Embedded | - | False |
| Fault Protection | Short Circuit, Over Temperature, Over Voltage | Short Circuit, Over Temperature, Over Voltage |
| Function | - | Battery Charger |
| Interface | USB | USB |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Cells | 1 | 1 |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
| Primary Attributes | - | Li-Ion (1 Cell) |
| Programmable Features | Current | Current |
| Supplier Device Package | 10-WSON (2x2) | 10-WSON (2x2) |
| Type | - | Power Management |
| Utilized IC / Part | - | BQ24050 |
| Voltage - Supply (Max) [Max] | 28 V | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow Electronics | N/A | 250 | $ 0.81 | |
| 500 | $ 0.79 | |||
| 750 | $ 0.78 | |||
| 1250 | $ 0.77 | |||
| 1750 | $ 0.77 | |||
| 2500 | $ 0.75 | |||
| DigiKey | Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | 1 | $ 1.79 | |
| 10 | $ 1.32 | |||
| 25 | $ 1.20 | |||
| 100 | $ 1.07 | |||
| 250 | $ 1.00 | |||
| 500 | $ 0.97 | |||
| 750 | $ 0.95 | |||
| 1250 | $ 0.93 | |||
| 1750 | $ 0.91 | |||
| 2500 | $ 0.90 | |||
| 6250 | $ 0.88 | |||
| Digikey | Cut Tape (CT) | 1 | $ 1.93 | |
| 10 | $ 1.74 | |||
| 25 | $ 1.64 | |||
| 100 | $ 1.40 | |||
| Digi-Reel® | 1 | $ 1.93 | ||
| 10 | $ 1.74 | |||
| 25 | $ 1.64 | |||
| 100 | $ 1.40 | |||
| Tape & Reel (TR) | 250 | $ 1.31 | ||
| 500 | $ 1.15 | |||
| 1250 | $ 0.95 | |||
| 2500 | $ 0.88 | |||
| 6250 | $ 0.85 | |||
| Farnell | Cut Tape | 1 | $ 2.16 | |
| 10 | $ 1.65 | |||
| 50 | $ 1.52 | |||
| 100 | $ 1.37 | |||
| 250 | $ 1.29 | |||
| 500 | $ 1.13 | |||
| 1000 | $ 1.11 | |||
| 2500 | $ 1.09 | |||
| Reel | 100 | $ 1.37 | ||
| 250 | $ 1.29 | |||
| 500 | $ 1.13 | |||
| 1000 | $ 1.11 | |||
| 2500 | $ 1.09 | |||
| LCSC | N/A | 1 | $ 1.84 | |
| 10 | $ 1.69 | |||
| 30 | $ 1.59 | |||
| 250 | $ 1.46 | |||
| 500 | $ 1.42 | |||
| 1000 | $ 1.40 | |||
| Mouser Electronics | N/A | 1 | $ 1.79 | |
| 10 | $ 1.20 | |||
| 100 | $ 1.07 | |||
| 250 | $ 1.00 | |||
| 500 | $ 0.95 | |||
| 1000 | $ 0.93 | |||
| 2500 | $ 0.88 | |||
| 5000 | $ 0.85 | |||
| TME | N/A | 1 | $ 1.82 | |
| 10 | $ 1.62 | |||
| 50 | $ 1.41 | |||
| 100 | $ 1.31 | |||
| 250 | $ 1.19 | |||
| 500 | $ 1.10 | |||
| 1000 | $ 1.06 | |||
| Texas Instruments | SMALL T&R | 1 | $ 1.45 | |
| 100 | $ 1.20 | |||
| 250 | $ 0.86 | |||
| 1000 | $ 0.65 | |||
| Win Source Electronics | N/A | 40 | $ 1.36 | |
| 90 | $ 1.11 | |||
| 140 | $ 1.08 | |||
| 195 | $ 1.04 | |||
| 250 | $ 1.01 | |||
| 335 | $ 0.90 | |||
BQ24050 Series
1-cell, 1-A, Li-ion linear battery charger with automatic AC/USB detection
| Part | Interface | Number of Cells | Battery Chemistry | Mounting Type | Fault Protection | Voltage - Supply (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Battery Pack Voltage | Programmable Features | Current - Charging | Supplier Device Package | Charge Current - Max [Max] | Package / Case | Primary Attributes | Function | Embedded | Utilized IC / Part | Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24050DSQT | USB | 1 | Lithium Ion/Polymer | Surface Mount | Over Temperature, Over Voltage, Short Circuit | 28 V | 0 °C | 125 ¯C | 4.2 V | Current | Constant - Programmable | 10-WSON (2x2) | 800 mA | 10-WFDFN Exposed Pad | ||||||
Texas Instruments BQ24050EVM | Li-Ion (1 Cell) | Battery Charger | BQ24050 | Board(s) | Power Management | |||||||||||||||
Texas Instruments BQ24050DSQR | USB | 1 | Lithium Ion/Polymer | Surface Mount | Over Temperature, Over Voltage, Short Circuit | 28 V | 0 °C | 125 ¯C | 4.2 V | Current | Constant - Programmable | 10-WSON (2x2) | 800 mA | 10-WFDFN Exposed Pad |
Description
General part information
BQ24050 Series
The BQ2405x series of devices are highly integrated Li-Ion and Li-Pol linear chargers devices targeted at space-limited portable applications. The devices operate from either a USB port or AC adapter. The high-input voltage range with input overvoltage protection supports low-cost unregulated adapters.
The BQ2405x has a single power output that charges the battery. A system load can be placed in parallel with the battery as long as the average system load does not keep the battery from charging fully during the 10-hour safety timer.
The battery is charged in three phases: conditioning, constant current, and constant voltage. In all charge phases, an internal control loop monitors the IC junction temperature and reduces the charge current if an internal temperature threshold is exceeded.
