123-83-420-41-001101

Active

Preci-Dip

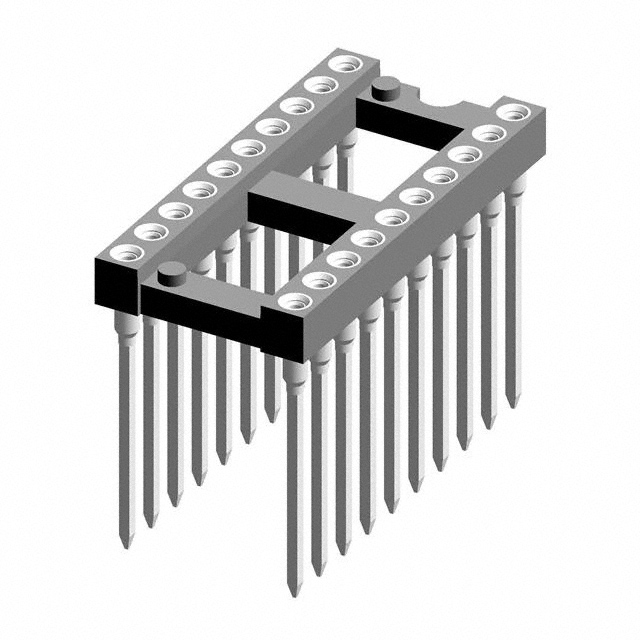

CONN IC DIP SOCKET 20POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

123-83-420-41-001101

Active

Preci-Dip

CONN IC DIP SOCKET 20POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	882	$ 2.35

Description

General part information

123-83 Series

20 (2 x 10) Pos DIP, 0.4" (10.16mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	123-83-420-41-001101	123-83 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	29.5 Áin	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám	0.75 Ám
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Features	Open Frame	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	20	8 - 28
Number of Positions or Pins (Grid)	-	2
Number of Positions or Pins (Grid)	-	6 - 50
Number of Positions or Pins (Grid)	-	3
Number of Positions or Pins (Grid)	-	2 x 5
Number of Positions or Pins (Grid)	-	10
Number of Positions or Pins (Grid)	-	25
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Wire Wrap	Wire Wrap
Termination Post Length [x]	0.51 in	0.51 in
Termination Post Length [x]	12.95 mm	12.95 mm
Type	0.4 in	0.3 - 0.6 "
Type	10.16 mm	7.62 - 15.24 mm
Type	DIP	DIP

123-83 Series

CONN IC DIP SOCKET 6POS GOLD

Part	Pitch - Mating	Pitch - Mating	Mounting Type	Pitch - Post	Pitch - Post	Contact Resistance	Contact Finish - Mating	Contact Material - Post [custom]	Material Flammability Rating	Type	Type	Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Housing Material	Features	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Termination Post Length [x]	Termination Post Length [x]	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Mating	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Preci-Dip 123-83-306-41-001101	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	10 mOhm	Gold	Brass	UL94 V-0	0.3 "	7.62 mm	DIP	Wire Wrap	-55 °C	125 °C	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Open Frame	2	6	3	0.51 in	12.95 mm	1 A	29.5 Áin	0.75 Ám	Beryllium Copper
Preci-Dip 123-83-422-41-001101	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	10 mOhm	Gold	Brass	UL94 V-0	0.4 in	10.16 mm	DIP	Wire Wrap	-55 °C	125 °C	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Open Frame				0.51 in	12.95 mm	1 A	29.5 Áin	0.75 Ám	Beryllium Copper	22
Preci-Dip 123-83-318-41-001101	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	10 mOhm	Gold	Brass	UL94 V-0	0.3 "	7.62 mm	DIP	Wire Wrap	-55 °C	125 °C	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Open Frame				0.51 in	12.95 mm	1 A	29.5 Áin	0.75 Ám	Beryllium Copper	18
Preci-Dip 123-83-624-41-001101	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	10 mOhm	Gold	Brass	UL94 V-0	0.6 in	15.24 mm	DIP	Wire Wrap	-55 °C	125 °C	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Open Frame				0.51 in	12.95 mm	1 A	29.5 Áin	0.75 Ám	Beryllium Copper	24
Preci-Dip 123-83-420-41-001101	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	10 mOhm	Gold	Brass	UL94 V-0	0.4 in	10.16 mm	DIP	Wire Wrap	-55 °C	125 °C	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Open Frame				0.51 in	12.95 mm	1 A	29.5 Áin	0.75 Ám	Beryllium Copper	20
Preci-Dip 123-83-310-41-001101	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	10 mOhm	Gold	Brass	UL94 V-0	0.3 "	7.62 mm	DIP	Wire Wrap	-55 °C	125 °C	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Open Frame				0.51 in	12.95 mm	1 A	29.5 Áin	0.75 Ám	Beryllium Copper		2 x 5	10
Preci-Dip 123-83-650-41-001101	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	10 mOhm	Gold	Brass	UL94 V-0	0.6 in	15.24 mm	DIP	Wire Wrap	-55 °C	125 °C	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Open Frame	2	50		0.51 in	12.95 mm	1 A	29.5 Áin	0.75 Ám	Beryllium Copper				25
Preci-Dip 123-83-328-41-001101	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	10 mOhm	Gold	Brass	UL94 V-0	0.3 "	7.62 mm	DIP	Wire Wrap	-55 °C	125 °C	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Open Frame				0.51 in	12.95 mm	1 A	29.5 Áin	0.75 Ám	Beryllium Copper	28
Preci-Dip 123-83-652-41-001101	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	10 mOhm	Gold	Brass	UL94 V-0	0.6 in	15.24 mm	DIP	Wire Wrap	-55 °C	125 °C	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Open Frame				0.51 in	12.95 mm	1 A	29.5 Áin	0.75 Ám	Beryllium Copper
Preci-Dip 123-83-314-41-001101	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	10 mOhm	Gold	Brass	UL94 V-0	0.3 "	7.62 mm	DIP	Wire Wrap	-55 °C	125 °C	Tin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Open Frame				0.51 in	12.95 mm	1 A	29.5 Áin	0.75 Ám	Beryllium Copper	14
