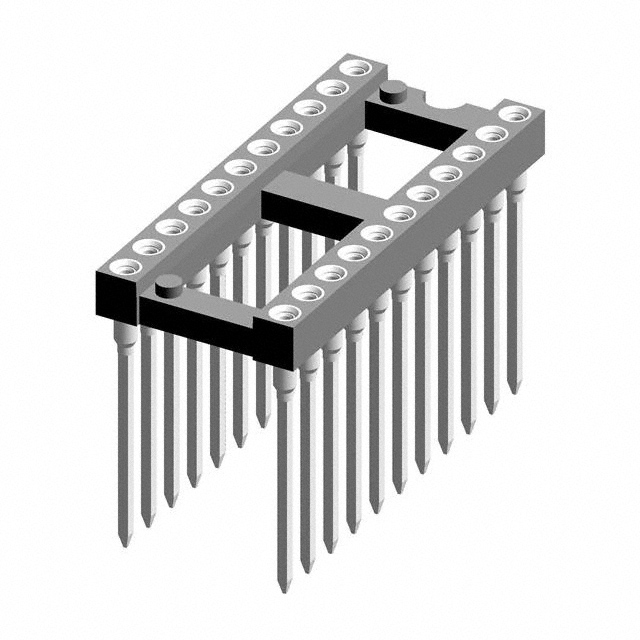

123-83-422-41-001101
ActivePRECI-DIP SA
CONN IC DIP SOCKET 22POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDIL/SIL/TO Socket Catalog
123-83-422-41-001101
ActivePRECI-DIP SA
CONN IC DIP SOCKET 22POS GOLD
Deep-Dive with AI
DocumentsDIL/SIL/TO Socket Catalog
Technical Specifications
Parameters and characteristics for this part
| Specification | 123-83-422-41-001101 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Contact Resistance | 10 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Open Frame |
| Housing Material | Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 22 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Wire Wrap |
| Termination Post Length [x] | 0.51 in |
| Termination Post Length [x] | 12.95 mm |
| Type | 0.4 in |
| Type | 10.16 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 798 | $ 2.67 | |
Description
General part information
123-83-422-41-001101
22 (2 x 11) Pos DIP, 0.4" (10.16mm) Row Spacing Socket Gold Through Hole
