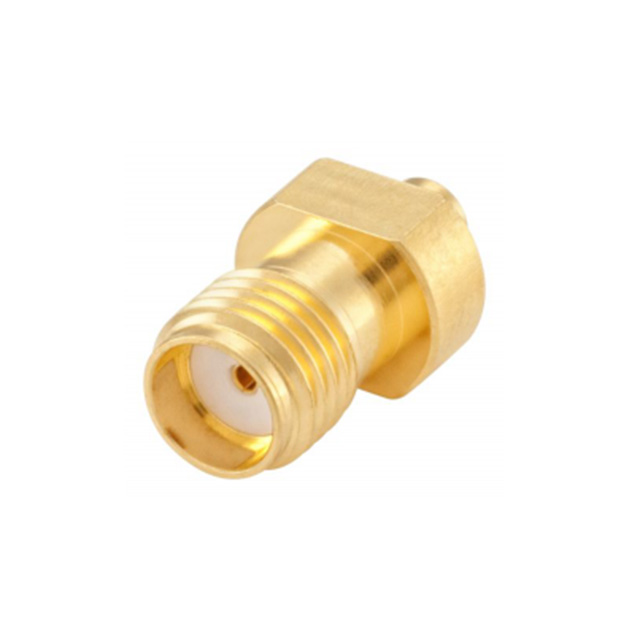

32K101-271L5

Active

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	32K101-271L5

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	Insulator, Connector, Contact
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	480 V

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Housing Color	Mounting Type	Frequency - Max [Max]	Body Finish	Includes	Connector Style	Voltage Rating	Mating Cycles	Contact Termination	Body Material	Center Contact Material	Dielectric Material	Center Contact Plating	Shield Termination	Number of Ports	Cable Group	Convert From (Adapter End)	Mounting Feature	Adapter Type	Center Gender	Adapter Series	Conversion Type	Convert To (Adapter End)	Style
Rosenberger 32K101-271L5	Female Socket Jack	155 °C	-55 °C	50 Ohms	Gold	Free Hanging (In-Line)	18 GHz	Gold	Connector Contact Insulator	SMA	480 V	500	Solder	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	Solder	1	RG-405 (.085" Semi Rigid)
Rosenberger 32K101-272L5	Female Socket Jack	155 °C	-55 °C	50 Ohms	Gold	Free Hanging (In-Line)	18 GHz	Gold	Connector Contact Insulator	SMA	480 V	500	Solder	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	Solder	1
Rosenberger 32K101-KH0L5		125 °C	-55 °C	50 Ohms			18 GHz	Gold	1 Connector 1 Lockwasher 1 Nut			500		Beryllium Copper Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold				Female Socket SMA Jack	Bulkhead	Jack to Jack	Female to Female	SMA to SMA	Same Series	Female Socket SMA Jack	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
