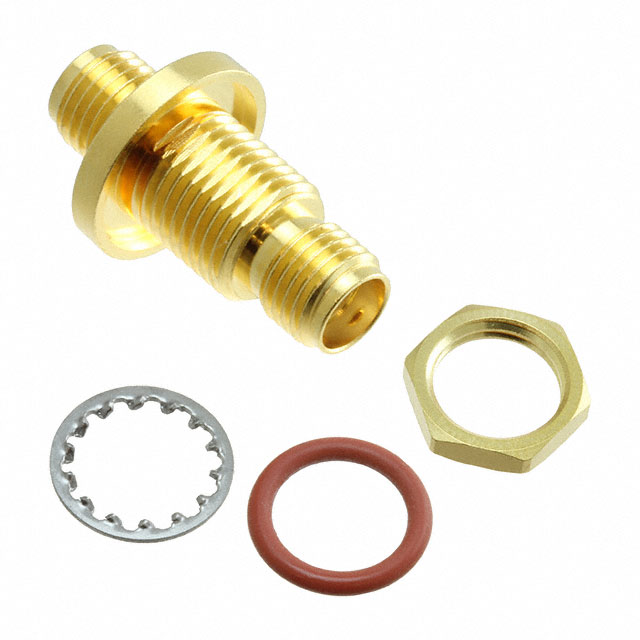

32K101-KH0L5

Active

Rosenberger

ADAPT SMA JACK - SMA JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT SMA JACK - SMA JACK

Technical Specifications

Parameters and characteristics for this part

Specification	32K101-KH0L5

Adapter Series	SMA to SMA
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Housing Color	Mounting Type	Frequency - Max [Max]	Body Finish	Includes	Connector Style	Voltage Rating	Mating Cycles	Contact Termination	Body Material	Center Contact Material	Dielectric Material	Center Contact Plating	Shield Termination	Number of Ports	Cable Group	Convert From (Adapter End)	Mounting Feature	Adapter Type	Center Gender	Adapter Series	Conversion Type	Convert To (Adapter End)	Style
Rosenberger 32K101-271L5	Female Socket Jack	155 °C	-55 °C	50 Ohms	Gold	Free Hanging (In-Line)	18 GHz	Gold	Connector Contact Insulator	SMA	480 V	500	Solder	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	Solder	1	RG-405 (.085" Semi Rigid)
Rosenberger 32K101-272L5	Female Socket Jack	155 °C	-55 °C	50 Ohms	Gold	Free Hanging (In-Line)	18 GHz	Gold	Connector Contact Insulator	SMA	480 V	500	Solder	Beryllium Copper	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	Solder	1
Rosenberger 32K101-KH0L5		125 °C	-55 °C	50 Ohms			18 GHz	Gold	1 Connector 1 Lockwasher 1 Nut			500		Beryllium Copper Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold				Female Socket SMA Jack	Bulkhead	Jack to Jack	Female to Female	SMA to SMA	Same Series	Female Socket SMA Jack	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
