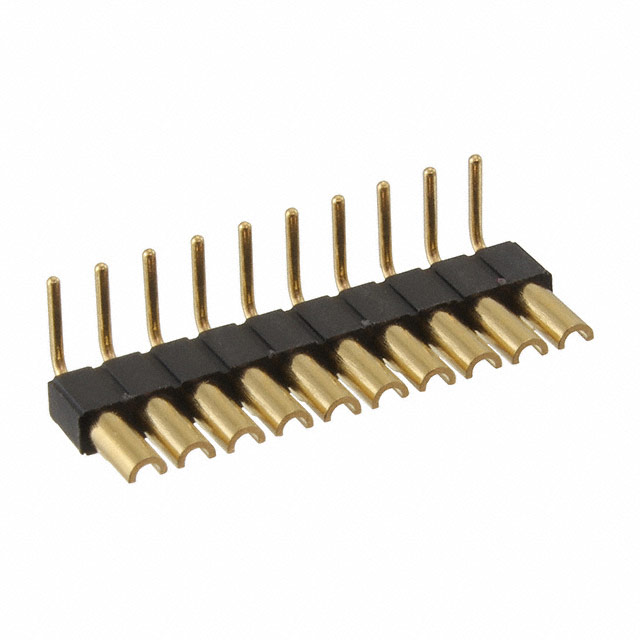

830-10-010-20-005000

Active

Mill-Max Manufacturing Corp.

CONN HDR STRIP SOLDER 10POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

830-10-010-20-005000

Active

Mill-Max Manufacturing Corp.

CONN HDR STRIP SOLDER 10POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	830-10-010-20-005000

Color	Black
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Type	Solder Cup
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Rows	1
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

830-10 Series

...

Part	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Overall Contact Length	Overall Contact Length	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Number of Positions	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Fastening Type	Contact Length - Post	Contact Length - Post	Insulation Material	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Shrouding	Contact Finish - Post	Contact Shape	Number of Rows	Contact Finish - Mating	Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Contacts	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Color
Mill-Max Manufacturing Corp. 830-10-018-10-001000	Header	0.154 in	3.91 mm	Brass Alloy	12.07 mm	0.475 in	0.079 in	2 mm	Male Pin	18	Black	10 çin	0.25 çm	Solder	Push-Pull	0.164 in	4.17 mm	Polyamide (PA46) Nylon 4/6	All	10 çin	0.25 çm	Through Hole	Unshrouded	Gold	Circular	1	Gold
Mill-Max Manufacturing Corp. 830-10-021-10-001000	Header	0.154 in	3.91 mm	Brass Alloy	12.07 mm	0.475 in	0.079 in	2 mm	Male Pin	21	Black	10 çin	0.25 çm	Solder	Push-Pull	0.164 in	4.17 mm	Polyamide (PA46) Nylon 4/6	All	10 çin	0.25 çm	Through Hole	Unshrouded	Gold	Circular	1	Gold
Mill-Max Manufacturing Corp. 830-10-010-30-004000	Mating Target																					Through Hole				1		Brass Alloy	Gold	10 Áin	0.25 Ám	0.079 in	2 mm	10
Mill-Max Manufacturing Corp. 830-10-010-40-028000	Header	0.14 in	3.56 mm						Male Pin	10	Black	10 çin	0.25 çm	Solder	Push-Pull			Polyamide (PA46) Nylon 4/6	All	10 çin	0.25 çm	Surface Mount Right Angle	Unshrouded	Gold	Circular	1	Gold								0.1 in	2.54 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 830-10-024-20-001000	Header	0.142 in	3.61 mm	Brass Alloy			0.079 in	2 mm	Male Pin	24	Black	10 çin	0.25 çm	Solder	Push-Pull			Polyamide (PA46) Nylon 4/6	All	10 çin	0.25 çm	Through Hole Right Angle	Unshrouded	Gold	Circular	1	Gold										0.079 in	2 mm	0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 830-10-020-10-004000	Mating Target																					Through Hole				1		Brass Alloy	Gold	10 Áin	0.25 Ám	0.079 in	2 mm
Mill-Max Manufacturing Corp. 830-10-043-10-005000	Header								Solder Cup	43				Solder								Through Hole				1			Gold	10 Áin	0.25 Ám	0.079 in	2 mm								Black
Mill-Max Manufacturing Corp. 830-10-010-20-005000	Header								Solder Cup	10				Solder								Through Hole Right Angle				1			Gold	10 Áin	0.25 Ám	0.079 in	2 mm								Black
Mill-Max Manufacturing Corp. 830-10-003-40-028000	Header	0.14 in	3.56 mm						Male Pin		Black	10 çin	0.25 çm	Solder	Push-Pull			Polyamide (PA46) Nylon 4/6	All	10 çin	0.25 çm	Surface Mount Right Angle	Unshrouded	Gold	Circular	1	Gold								0.1 in	2.54 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 830-10-048-10-001000	Header	0.154 in	3.91 mm	Brass Alloy	12.07 mm	0.475 in	0.079 in	2 mm	Male Pin	48	Black	10 çin	0.25 çm	Solder	Push-Pull	0.164 in	4.17 mm	Polyamide (PA46) Nylon 4/6	All	10 çin	0.25 çm	Through Hole	Unshrouded	Gold	Circular	1	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.31
		25	$ 5.42
		100	$ 5.05
		500	$ 4.29
		1000	$ 3.66

Description

General part information

830-10 Series

10 Position Header Connector Solder Cup Gold
