830-10-010-40-028000

Active

Mill-Max Manufacturing Corp.

CONN HEADER SMD R/A 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

830-10-010-40-028000

Active

Mill-Max Manufacturing Corp.

CONN HEADER SMD R/A 10POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	830-10-010-40-028000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.14 in
Contact Length - Mating	3.56 mm
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyamide (PA46), Nylon 4/6
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

830-10 Series

...

Part	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Overall Contact Length	Overall Contact Length	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Number of Positions	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Fastening Type	Contact Length - Post	Contact Length - Post	Insulation Material	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Shrouding	Contact Finish - Post	Contact Shape	Number of Rows	Contact Finish - Mating	Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Contacts	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Color
Mill-Max Manufacturing Corp. 830-10-018-10-001000	Header	0.154 in	3.91 mm	Brass Alloy	12.07 mm	0.475 in	0.079 in	2 mm	Male Pin	18	Black	10 çin	0.25 çm	Solder	Push-Pull	0.164 in	4.17 mm	Polyamide (PA46) Nylon 4/6	All	10 çin	0.25 çm	Through Hole	Unshrouded	Gold	Circular	1	Gold
Mill-Max Manufacturing Corp. 830-10-021-10-001000	Header	0.154 in	3.91 mm	Brass Alloy	12.07 mm	0.475 in	0.079 in	2 mm	Male Pin	21	Black	10 çin	0.25 çm	Solder	Push-Pull	0.164 in	4.17 mm	Polyamide (PA46) Nylon 4/6	All	10 çin	0.25 çm	Through Hole	Unshrouded	Gold	Circular	1	Gold
Mill-Max Manufacturing Corp. 830-10-010-30-004000	Mating Target																					Through Hole				1		Brass Alloy	Gold	10 Áin	0.25 Ám	0.079 in	2 mm	10
Mill-Max Manufacturing Corp. 830-10-010-40-028000	Header	0.14 in	3.56 mm						Male Pin	10	Black	10 çin	0.25 çm	Solder	Push-Pull			Polyamide (PA46) Nylon 4/6	All	10 çin	0.25 çm	Surface Mount Right Angle	Unshrouded	Gold	Circular	1	Gold								0.1 in	2.54 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 830-10-024-20-001000	Header	0.142 in	3.61 mm	Brass Alloy			0.079 in	2 mm	Male Pin	24	Black	10 çin	0.25 çm	Solder	Push-Pull			Polyamide (PA46) Nylon 4/6	All	10 çin	0.25 çm	Through Hole Right Angle	Unshrouded	Gold	Circular	1	Gold										0.079 in	2 mm	0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 830-10-020-10-004000	Mating Target																					Through Hole				1		Brass Alloy	Gold	10 Áin	0.25 Ám	0.079 in	2 mm
Mill-Max Manufacturing Corp. 830-10-043-10-005000	Header								Solder Cup	43				Solder								Through Hole				1			Gold	10 Áin	0.25 Ám	0.079 in	2 mm								Black
Mill-Max Manufacturing Corp. 830-10-010-20-005000	Header								Solder Cup	10				Solder								Through Hole Right Angle				1			Gold	10 Áin	0.25 Ám	0.079 in	2 mm								Black
Mill-Max Manufacturing Corp. 830-10-003-40-028000	Header	0.14 in	3.56 mm						Male Pin		Black	10 çin	0.25 çm	Solder	Push-Pull			Polyamide (PA46) Nylon 4/6	All	10 çin	0.25 çm	Surface Mount Right Angle	Unshrouded	Gold	Circular	1	Gold								0.1 in	2.54 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 830-10-048-10-001000	Header	0.154 in	3.91 mm	Brass Alloy	12.07 mm	0.475 in	0.079 in	2 mm	Male Pin	48	Black	10 çin	0.25 çm	Solder	Push-Pull	0.164 in	4.17 mm	Polyamide (PA46) Nylon 4/6	All	10 çin	0.25 çm	Through Hole	Unshrouded	Gold	Circular	1	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.78
		20	$ 4.32
		100	$ 3.79
		500	$ 3.51

Description

General part information

830-10 Series

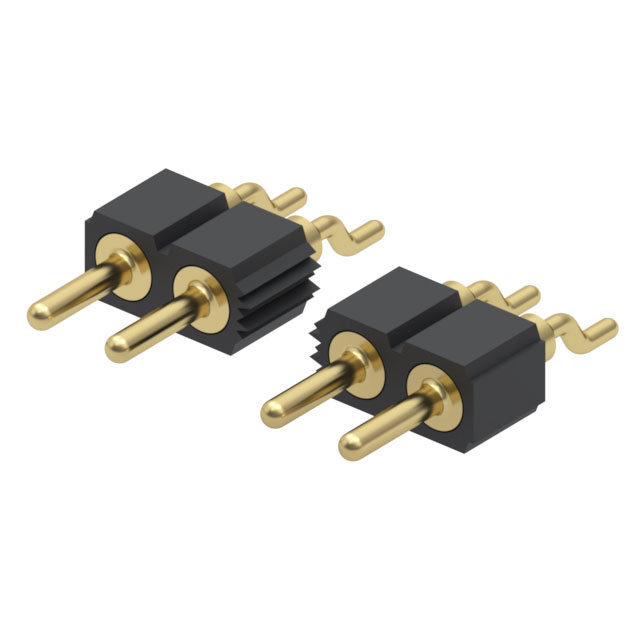

Connector Header Surface Mount, Right Angle 10 position 0.100" (2.54mm)
