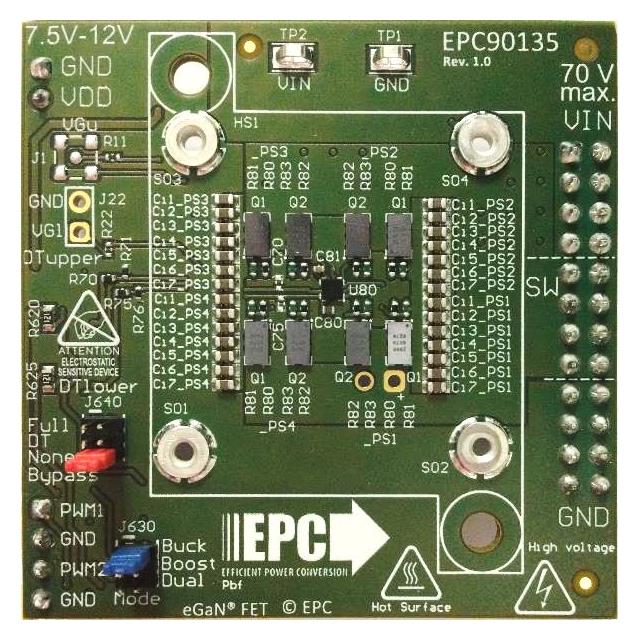

EPC90135

Active

DEV BD 1/2BRIDGE PARALEL EPC2218

Active

DEV BD 1/2BRIDGE PARALEL EPC2218

Description

General part information

EPC2218 Power Management Evaluation Board

Parameters and characteristics for this part

Part	Supplied Contents	Type	Utilized IC / Part	Contents	FET Type	Grade	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max)	Package / Case	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max)	Vgs (Max) Positive	Gate Charge (Max)	Current - Continuous Drain (Id) (Ta)	Qualification	Vgs(th) (Max)	Mounting Type	Technology	Package Name	Operating Temperature (Min)	Operating Temperature (Max)
EPC EPC90135	Board(s)	Power Management	EPC2218	Board
EPC EPC2218A					N-Channel	Automotive	80 V	1570 pF	Die	5 V	3.2 mOhm	6 V	13.6 nC	60 A	AEC-Q101	2.5 V	Surface Mount	GaNFET (Gallium Nitride)	Die	-40 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
