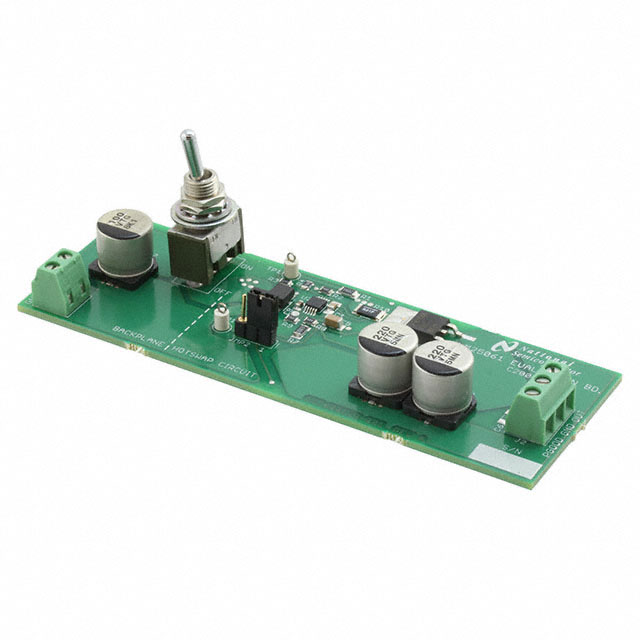

Specification	LM25061MM-2EVAL/NOPB

Contents	Board
Embedded	No
Function	Hot Swap Controller
Primary Attributes	Inrush Current Limiting, High Side MOSFET Driver
Secondary Attributes	Auto Restart, 2.9V ~ 17V Supply
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	LM25061-2

LM2506 Series

Part	Supplied Contents	Primary Attributes	Function	Embedded	Utilized IC / Part	Contents	Type	Secondary Attributes	Operating Temperature (Max)	Operating Temperature (Min)	Data Rate	Number of Outputs (Min)	Number of Outputs (Max)	Input Type	Package Width	Package Name	Package Length	Mounting Type	Package / Case	Number of Inputs (Max)	Number of Inputs (Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output Type
Texas Instruments LM25061MM-2EVAL/NOPB	Board(s)	High Side MOSFET Driver Inrush Current Limiting	Hot Swap Controller	No	LM25061-2	Board	Power Management	2.9V ~ 17V Supply Auto Restart
Texas Instruments LM25069MM-2EVAL	Board(s)	High Side MOSFET Driver Inrush Current Limiting	Hot Swap Controller	No	LM25069-2	Board	Power Management	2.9V ~ 17V Supply Auto Restart
Texas Instruments LM2506SQ/NOPB			Deserializer Serializer						85 °C	-30 °C	320 Mbps	3	22	LVCMOS	5 mm	40-WQFN	5 mm	Surface Mount	40-WFQFN Exposed Pad	3	22	3 V	1.74 V	MPL
Texas Instruments LM2506GR/NOPB			Deserializer Serializer						85 °C	-30 °C	320 Mbps	3	22	LVCMOS	4 mm	49-CSBGA	4 mm	Surface Mount	49-TFBGA CSPBGA	3	22	3 V	1.74 V	MPL
Texas Instruments LM25061MM-2EVAL	Board(s)	High Side MOSFET Driver Inrush Current Limiting	Hot Swap Controller	No	LM25061-2	Board	Power Management	2.9V ~ 17V Supply Auto Restart
Texas Instruments LM2506SQX/NOPB			Deserializer Serializer						85 °C	-30 °C	320 Mbps	3	22	LVCMOS	5 mm	40-WQFN	5 mm	Surface Mount	40-WFQFN Exposed Pad	3	22	3 V	1.74 V	MPL
Texas Instruments LM2506SQ/NOPB			Deserializer Serializer						85 °C	-30 °C	320 Mbps	3	22	LVCMOS	5 mm	40-WQFN	5 mm	Surface Mount	40-WFQFN Exposed Pad	3	22	3 V	1.74 V	MPL
