NP0115AG03LCF-JCF14

Obsolete

NKK Switches

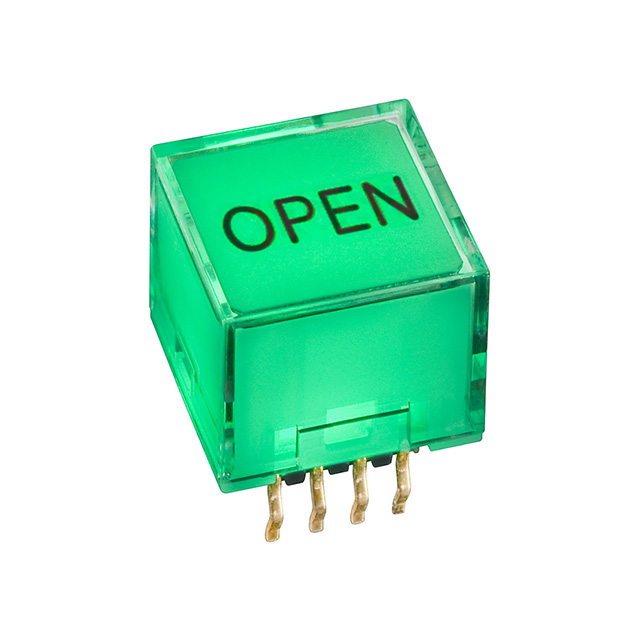

SWITCH PUSH SPST-NO 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NP0115AG03LCF-JCF14

Obsolete

NKK Switches

SWITCH PUSH SPST-NO 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NP0115AG03LCF-JCF14

Actuator Marking	OPEN/CLOSE (Alternating)
Actuator Type	Button, Alternating Legend, Square
Circuit	SPST-NO
Color - Actuator/Cap	Green, Red
Current Rating (Amps)	0.4 VA
Electrical Life	500000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	3.5 VDC, 2 VDC
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

NP0115A Series

Part	Voltage Rating - AC	Circuit	Actuator Type	Termination Style	Illumination Type, Color	Mounting Type	Color - Actuator/Cap	Electrical Life	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Illumination Voltage (Nominal)	Switch Function	Voltage Rating - DC	Mechanical Life	Type
NKK Switches NP0115AG03LCF-JCF14	28 V	SPST-NO	Alternating Legend Button Square	PC Pin	Green/Red LED	Through Hole	Green Red	500000 Cycles	0.4 VA	50 °C	-25 °C	OPEN/CLOSE (Alternating)	2 VDC 3.5 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard
NKK Switches NP0115AG03LDG-JDG14	28 V	SPST-NO	Alternating Legend Button Square	PC Pin		Through Hole	Amber Blue	500000 Cycles	0.4 VA	50 °C	-25 °C	OPEN/CLOSE (Alternating)	2 VDC 3.2 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard
NKK Switches NP0115AG03LCF-JB	28 V	SPST-NO	Button Square	PC Pin	Green/Red LED	Through Hole	Clear	500000 Cycles	0.4 VA	50 °C	-25 °C	No Marking	2 VDC 3.5 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard
NKK Switches NP0115AG03LCF	28 V	SPST-NO	Square Button (Not Included)	PC Pin	Green/Red LED	Through Hole		500000 Cycles	0.4 VA	50 °C	-25 °C	No Marking	2 VDC 3.5 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard
NKK Switches NP0115AG03NN-A	28 V	SPST-NO	Button Square	PC Pin		Through Hole	Black	500000 Cycles	0.4 VA	70 °C	-25 °C	No Marking		Off-Mom	28 V	500000 Cycles	Standard
NKK Switches NP0115AG03LF	28 V	SPST-NO	Square Button (Not Included)	PC Pin	Green LED	Through Hole		500000 Cycles	0.4 VA	50 °C	-25 °C	No Marking	3.5 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard
NKK Switches NP0115AG03LDG-JDG13	28 V	SPST-NO	Alternating Legend Button Square	PC Pin		Through Hole	Amber Blue	500000 Cycles	0.4 VA	50 °C	-25 °C	START/STOP (Alternating)	2 VDC 3.2 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard
NKK Switches NP0115AG03NN	28 V	SPST-NO	Square Button (Not Included)	PC Pin		Through Hole		500000 Cycles	0.4 VA	70 °C	-25 °C	No Marking		Off-Mom	28 V	500000 Cycles	Standard
NKK Switches NP0115AG03LDG-JDG11	28 V	SPST-NO	Alternating Legend Button Square	PC Pin		Through Hole	Amber Blue	500000 Cycles	0.4 VA	50 °C	-25 °C	ON/OFF	2 VDC 3.2 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard
