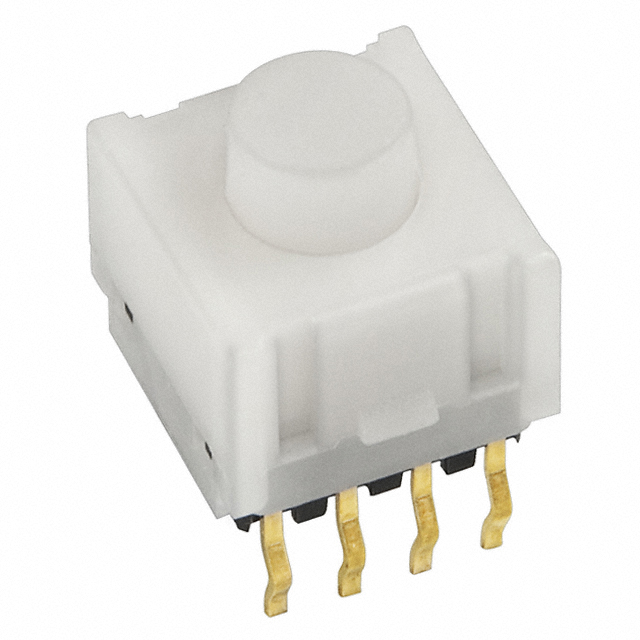

NP0115AG03NN

Obsolete

NKK Switches

SWITCH PUSH SPST-NO 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NP0115AG03NN

Obsolete

NKK Switches

SWITCH PUSH SPST-NO 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NP0115AG03NN

Actuator Marking	No Marking
Actuator Type	Square, Button (Not Included)
Circuit	SPST-NO
Current Rating (Amps)	0.4 VA
Electrical Life	500000 Cycles
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

NP0115A Series

Part	Voltage Rating - AC	Circuit	Actuator Type	Termination Style	Illumination Type, Color	Mounting Type	Color - Actuator/Cap	Electrical Life	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Illumination Voltage (Nominal)	Switch Function	Voltage Rating - DC	Mechanical Life	Type
NKK Switches NP0115AG03LCF-JCF14	28 V	SPST-NO	Alternating Legend Button Square	PC Pin	Green/Red LED	Through Hole	Green Red	500000 Cycles	0.4 VA	50 °C	-25 °C	OPEN/CLOSE (Alternating)	2 VDC 3.5 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard
NKK Switches NP0115AG03LDG-JDG14	28 V	SPST-NO	Alternating Legend Button Square	PC Pin		Through Hole	Amber Blue	500000 Cycles	0.4 VA	50 °C	-25 °C	OPEN/CLOSE (Alternating)	2 VDC 3.2 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard
NKK Switches NP0115AG03LCF-JB	28 V	SPST-NO	Button Square	PC Pin	Green/Red LED	Through Hole	Clear	500000 Cycles	0.4 VA	50 °C	-25 °C	No Marking	2 VDC 3.5 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard
NKK Switches NP0115AG03LCF	28 V	SPST-NO	Square Button (Not Included)	PC Pin	Green/Red LED	Through Hole		500000 Cycles	0.4 VA	50 °C	-25 °C	No Marking	2 VDC 3.5 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard
NKK Switches NP0115AG03NN-A	28 V	SPST-NO	Button Square	PC Pin		Through Hole	Black	500000 Cycles	0.4 VA	70 °C	-25 °C	No Marking		Off-Mom	28 V	500000 Cycles	Standard
NKK Switches NP0115AG03LF	28 V	SPST-NO	Square Button (Not Included)	PC Pin	Green LED	Through Hole		500000 Cycles	0.4 VA	50 °C	-25 °C	No Marking	3.5 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard
NKK Switches NP0115AG03LDG-JDG13	28 V	SPST-NO	Alternating Legend Button Square	PC Pin		Through Hole	Amber Blue	500000 Cycles	0.4 VA	50 °C	-25 °C	START/STOP (Alternating)	2 VDC 3.2 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard
NKK Switches NP0115AG03NN	28 V	SPST-NO	Square Button (Not Included)	PC Pin		Through Hole		500000 Cycles	0.4 VA	70 °C	-25 °C	No Marking		Off-Mom	28 V	500000 Cycles	Standard
NKK Switches NP0115AG03LDG-JDG11	28 V	SPST-NO	Alternating Legend Button Square	PC Pin		Through Hole	Amber Blue	500000 Cycles	0.4 VA	50 °C	-25 °C	ON/OFF	2 VDC 3.2 VDC	Off-Mom	28 V	500000 Cycles	Illuminated Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.99

Description

General part information

NP0115A Series

Pushbutton Switch SPST-NO Standard Through Hole
