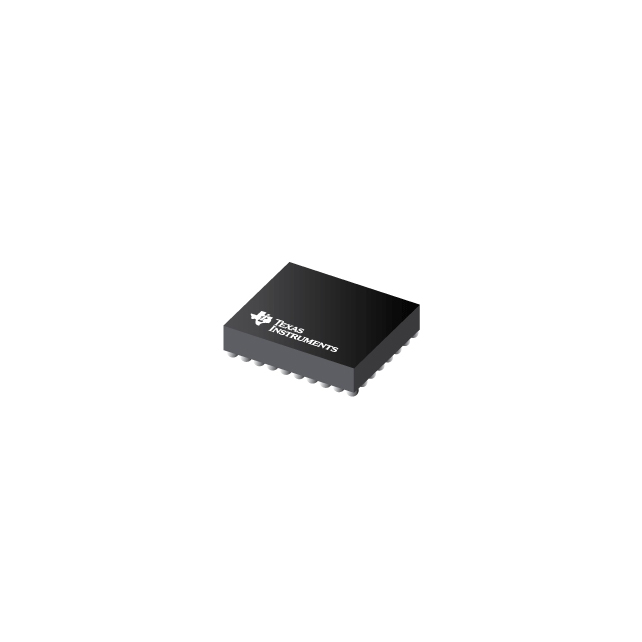

BQ25980YFFR
ActiveI2C CONTROLLED, 2-CELL, 8-A SWITCHED CAP PARALLEL BATTERY CHARGER WITH INTEGRATED PROTECTION
Deep-Dive with AI
Search across all available documentation for this part.
BQ25980YFFR
ActiveI2C CONTROLLED, 2-CELL, 8-A SWITCHED CAP PARALLEL BATTERY CHARGER WITH INTEGRATED PROTECTION
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BQ25980YFFR |
|---|---|
| Battery Chemistry | Lithium Ion/Polymer |
| Charge Current - Max [Max] | 4.75 A |
| Current - Charging | Constant - Programmable |
| Interface | I2C |
| Mounting Type | Surface Mount |
| Number of Cells | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | DSBGA, 80-UFBGA |
| Programmable Features | Current |
| Supplier Device Package | 80-DSBGA (3.2x4.1) |
| Voltage - Supply (Max) [Max] | 9.54 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.41 | |
| 10 | $ 7.60 | |||
| 25 | $ 7.25 | |||
| 100 | $ 6.29 | |||
| 250 | $ 6.01 | |||
| 500 | $ 5.48 | |||
| 1000 | $ 4.77 | |||
| Digi-Reel® | 1 | $ 8.41 | ||
| 10 | $ 7.60 | |||
| 25 | $ 7.25 | |||
| 100 | $ 6.29 | |||
| 250 | $ 6.01 | |||
| 500 | $ 5.48 | |||
| 1000 | $ 4.77 | |||
| Tape & Reel (TR) | 3000 | $ 4.38 | ||
| Texas Instruments | LARGE T&R | 1 | $ 6.44 | |
| 100 | $ 5.25 | |||
| 250 | $ 4.13 | |||
| 1000 | $ 3.50 | |||
BQ25980 Series
I2C controlled, 2-cell, 8-A switched cap parallel battery charger with integrated protection
| Part | Mounting Type | Supplier Device Package | Number of Cells | Battery Chemistry | Interface | Operating Temperature [Min] | Operating Temperature [Max] | Charge Current - Max [Max] | Voltage - Supply (Max) [Max] | Programmable Features | Package / Case | Current - Charging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25980YFFR | Surface Mount | 80-DSBGA (3.2x4.1) | 2 | Lithium Ion/Polymer | I2C | -40 °C | 85 °C | 4.75 A | 9.54 V | Current | 80-UFBGA, DSBGA | Constant - Programmable |
Description
General part information
BQ25980 Series
The BQ25980 is a 98.6% peak efficiency, 8-A battery charging solution using dual-phase switched cap architecture for 2-cell Li-ion battery. The switched cap architecture allows the cable current to be half the charging current, reducing the cable power loss and limiting temperature rise. The dual-phase architecture increases charging efficiency and reduces the input and output cap requirements. When used with a main charger such as BQ25790, the system enables the fast charging at the very low power loss from pre-charge through constant current (CC), constant voltage (CV), and termination.
The BQ25980 also supports 7-A bypass mode charge (previously called battery switch charge) through internal MOSFETs. The Rdsonin bypass mode charging path is less than 13mΩ for high current operation. The integrated bypass mode allows backward compatibility of 10-V fast charging adapter to charge 2-cell battery.
The device supports dual input configuration through integrated mux control and driver for external N-FETs. It also allows single input with no external N-FET or single N-FET.
