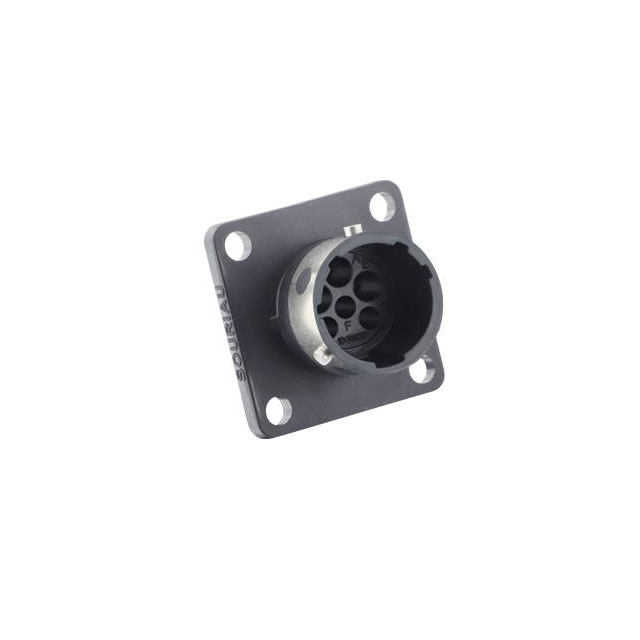

UTGX0103W3P
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSG MALE 6POS PNL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UTGX0103W3P |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 20 (3), 16 (3) |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant |
| Housing Color | Black |
| Ingress Protection | IP68, IP69K |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert | 10-3W3 |
| Shielding | Unshielded |
| Type | For Male Pins |
UTGX0 Series
...
| Part | Fastening Type | Orientation | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Features | Ingress Protection | Color | Shielding | Applications | Contact Material | Number of Positions | Material Flammability Rating | Termination | Mounting Type | Current Rating (Amps) | Insert Material | Mounting Feature | Voltage Rating | Shell Size - Insert | Contact Size | Housing Color | Contact Type | Contact Shape | Includes | Note | Type | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | Bayonet Lock | N | Male Pins Receptacle | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | 19 | UL94 V-0 | Solder | Panel Mount Through Hole | 4 A | Polychloroprene | Flange | 250 VDC | ||||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Receptacle Female Sockets | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | 2 | UL94 V-0 | Solder | Panel Mount Through Hole | 13 A | Polychloroprene | Flange | 600 V | 12-2 | |||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Male Pins Receptacle | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | 2 | UL94 V-0 | Solder | Panel Mount Through Hole | 13 A | Polychloroprene | Flange | 600 V | 12-2 | |||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Receptacle Housing | -40 °C | 105 ░C | Backshell UV Resistant | IP68 IP69K | Unshielded | 4 | UL94 V-0 | Free Hanging (In-Line) Panel Mount | Nylon Polyamide (PA) | Flange | 10-2W2 | 12 (2) 20 (2) | Black | Crimp | Circular | 1 Backshell 1 Connector | Contacts Not Included | For Male Pins | |||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Male Pins Receptacle | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | 4 | UL94 V-0 | 13 A | Polychloroprene | Flange | 600 V | 12-4 | |||||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Receptacle Female Sockets | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | UL94 V-0 | Solder | Panel Mount Through Hole | 13 A | Polychloroprene | Flange | 600 V | 12-3 | ||||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Receptacle Female Sockets | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | 15 | UL94 V-0 | 5 A 12 A | Polychloroprene | Flange | 250 VDC 600 V | 14 | 15 | ||||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Receptacle Housing | -40 °C | 105 ░C | UV Resistant | IP68 IP69K | Unshielded | 6 | UL94 V-0 | Nylon Polyamide (PA) | Flange | 10-3W3 | 16 (3) 20 (3) | Black | Crimp | Circular | Contacts Not Included | For Male Pins | |||||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Male Pins Receptacle | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | UL94 V-0 | Solder | Panel Mount Through Hole | 12 A | Polychloroprene | Flange | 600 V | 14-5 | ||||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Male Pins Receptacle | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | 15 | UL94 V-0 | 5 A 12 A | Polychloroprene | Flange | 250 VDC 600 V | 14 | 15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 25 | $ 13.36 | |
Description
General part information
UTGX0 Series
6 Position Circular Connector Receptacle Housing Panel Mount UV Resistant
