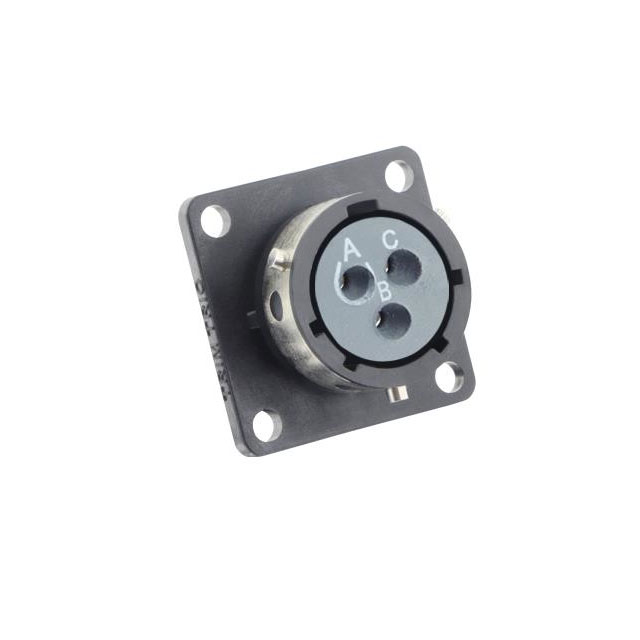

UTGX012D3S
ActiveSouriau-Sunbank by Eaton
CONN RCPT FMALE 3POS SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
UTGX012D3S
ActiveSouriau-Sunbank by Eaton
CONN RCPT FMALE 3POS SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UTGX012D3S |
|---|---|
| Applications | Testing Equipment, Industrial, Automation, Instrumentation |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Material | Brass |
| Current Rating (Amps) | 13 A |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polychloroprene |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Mounting Type | Through Hole, Panel Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shell Size - Insert | 12-3 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 600 V |
UTGX0 Series
...
| Part | Fastening Type | Orientation | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Features | Ingress Protection | Color | Shielding | Applications | Contact Material | Number of Positions | Material Flammability Rating | Termination | Mounting Type | Current Rating (Amps) | Insert Material | Mounting Feature | Voltage Rating | Shell Size - Insert | Contact Size | Housing Color | Contact Type | Contact Shape | Includes | Note | Type | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | Bayonet Lock | N | Male Pins Receptacle | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | 19 | UL94 V-0 | Solder | Panel Mount Through Hole | 4 A | Polychloroprene | Flange | 250 VDC | ||||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Receptacle Female Sockets | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | 2 | UL94 V-0 | Solder | Panel Mount Through Hole | 13 A | Polychloroprene | Flange | 600 V | 12-2 | |||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Male Pins Receptacle | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | 2 | UL94 V-0 | Solder | Panel Mount Through Hole | 13 A | Polychloroprene | Flange | 600 V | 12-2 | |||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Receptacle Housing | -40 °C | 105 ░C | Backshell UV Resistant | IP68 IP69K | Unshielded | 4 | UL94 V-0 | Free Hanging (In-Line) Panel Mount | Nylon Polyamide (PA) | Flange | 10-2W2 | 12 (2) 20 (2) | Black | Crimp | Circular | 1 Backshell 1 Connector | Contacts Not Included | For Male Pins | |||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Male Pins Receptacle | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | 4 | UL94 V-0 | 13 A | Polychloroprene | Flange | 600 V | 12-4 | |||||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Receptacle Female Sockets | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | UL94 V-0 | Solder | Panel Mount Through Hole | 13 A | Polychloroprene | Flange | 600 V | 12-3 | ||||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Receptacle Female Sockets | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | 15 | UL94 V-0 | 5 A 12 A | Polychloroprene | Flange | 250 VDC 600 V | 14 | 15 | ||||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Receptacle Housing | -40 °C | 105 ░C | UV Resistant | IP68 IP69K | Unshielded | 6 | UL94 V-0 | Nylon Polyamide (PA) | Flange | 10-3W3 | 16 (3) 20 (3) | Black | Crimp | Circular | Contacts Not Included | For Male Pins | |||||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Male Pins Receptacle | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | UL94 V-0 | Solder | Panel Mount Through Hole | 12 A | Polychloroprene | Flange | 600 V | 14-5 | ||||||||||
Souriau-Sunbank by Eaton | Bayonet Lock | N | Male Pins Receptacle | -40 °C | 105 ░C | Plastic | UV Resistant | IP68 IP69K | Black | Unshielded | Automation Industrial Instrumentation Testing Equipment | Brass | 15 | UL94 V-0 | 5 A 12 A | Polychloroprene | Flange | 250 VDC 600 V | 14 | 15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 25 | $ 30.82 | |
Description
General part information
UTGX0 Series
3 Position Circular Connector Receptacle, Female Sockets Solder
