Q-1T0110003108i
ActiveAmphenol Custom Cable

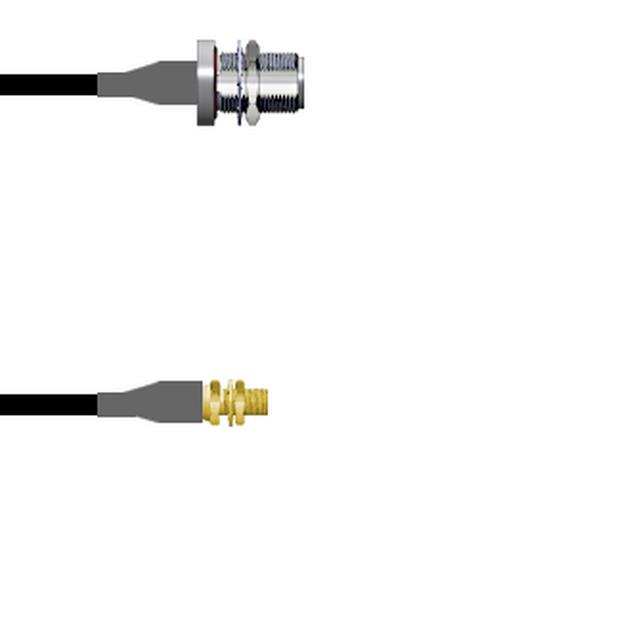

CBL ASSY MCX-NTYPE JACK-JACK 9'
Deep-Dive with AI
Search across all available documentation for this part.
Q-1T0110003108i
ActiveAmphenol Custom Cable
CBL ASSY MCX-NTYPE JACK-JACK 9'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1T0110003108i |
|---|---|
| 1st Connector | MCX Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 2.7 m |
| Length | 9 ft |
| Length | 108 in |
| Overall Impedance | 50 Ohms |
| Style | MCX to N-Type |
Q-1T0110 Series
| Part | 2nd Contact Gender | Color | Features | 2nd Connector | Style | 1st Connector Mounting Type | 2nd Connector Mounting Feature | Overall Impedance | 2nd Connector Mounting Type | 1st Connector | 1st Connector Mounting Feature | 1st Contact Gender | Length | Length | Frequency - Max [Max] | Cable Type | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Female | Black | Shielded | N-Type Jack | MCX to N-Type | Panel Mount | Bulkhead - Front Side Nut | 50 Ohms | Panel Mount | MCX Jack | Bulkhead - Front Side Nut | Female | 29.53 " | 750 mm | 6000 MHz | RG-174 | |
Amphenol Custom Cable | Female | Copper | Shielded | N-Type Jack | MCX to N-Type | Panel Mount | Bulkhead - Front Side Nut | 50 Ohms | Panel Mount | MCX Jack | Bulkhead - Front Side Nut | Female | 78.7 in | 2 m | 6000 MHz | RG-316 | 6.6 ft |
Amphenol Custom Cable | Female | Black | Shielded | N-Type Jack | MCX to N-Type | Panel Mount | Bulkhead - Front Side Nut | 50 Ohms | Panel Mount | MCX Jack | Bulkhead - Front Side Nut | Female | 108 in | 2.7 m | 6000 MHz | RG-174 | 9 ft |
Amphenol Custom Cable | Female | Black | Shielded | N-Type Jack | MCX to N-Type | Panel Mount | Bulkhead - Front Side Nut | 50 Ohms | Panel Mount | MCX Jack | Bulkhead - Front Side Nut | Female | 19.69 " | 50 cm | 6000 MHz | RG-174 | |
Amphenol Custom Cable | Female | Black | Shielded | N-Type Jack | MCX to N-Type | Panel Mount | Bulkhead - Front Side Nut | 50 Ohms | Panel Mount | MCX Jack | Bulkhead - Front Side Nut | Female | 24 " | 609.6 mm | 6000 MHz | RG-174 | |
Amphenol Custom Cable | Female | Copper | Shielded | N-Type Jack | MCX to N-Type | Panel Mount | Bulkhead - Front Side Nut | 50 Ohms | Panel Mount | MCX Jack | Bulkhead - Front Side Nut | Female | 5 ' | 1.5 m | 6000 MHz | RG-316 | 5 ft |
Amphenol Custom Cable | Female | Copper | Shielded | N-Type Jack | MCX to N-Type | Panel Mount | Bulkhead - Front Side Nut | 50 Ohms | Panel Mount | MCX Jack | Bulkhead - Front Side Nut | Female | 118.1 in | 3 m | 6000 MHz | RG-316 | 9.8 ' |
Amphenol Custom Cable | Female | Copper | Shielded | N-Type Jack | MCX to N-Type | Panel Mount | Bulkhead - Front Side Nut | 50 Ohms | Panel Mount | MCX Jack | Bulkhead - Front Side Nut | Female | 12 " | 304.8 mm | 6000 MHz | RG-316 | |
Amphenol Custom Cable | Female | Copper | Shielded | N-Type Jack | MCX to N-Type | Panel Mount | Bulkhead - Front Side Nut | 50 Ohms | Panel Mount | MCX Jack | Bulkhead - Front Side Nut | Female | 39.4 in | 1 m | 6000 MHz | RG-316 | 3.3 ft |
Amphenol Custom Cable | Female | Black | Shielded | N-Type Jack | MCX to N-Type | Panel Mount | Bulkhead - Front Side Nut | 50 Ohms | Panel Mount | MCX Jack | Bulkhead - Front Side Nut | Female | 78.7 in | 2 m | 6000 MHz | RG-174 | 6.6 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 88.53 | |
| 25 | $ 86.83 | |||
| 50 | $ 85.12 | |||
| 100 | $ 83.41 | |||
| 250 | $ 81.70 | |||
Description
General part information
Q-1T0110 Series
Cable Assembly Coaxial MCX to N-Type RG-174 108.0" (2.7m) 9.0'
Documents
Technical documentation and resources
No documents available
