Q-1T0110005002M

Active

Amphenol Custom Cable

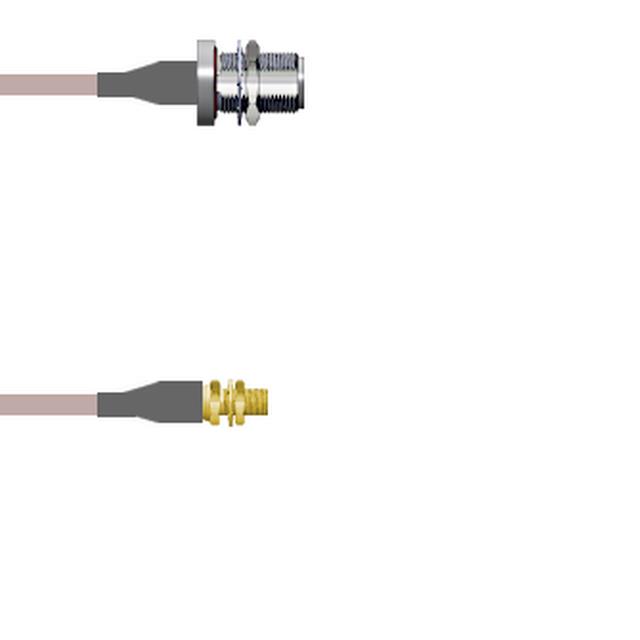

CBL ASSY MCX-NTYPE JCK-JCK 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T0110005002M

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE JCK-JCK 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T0110005002M

1st Connector	MCX Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1T0110 Series

Part	2nd Contact Gender	Color	Features	2nd Connector	Style	1st Connector Mounting Type	2nd Connector Mounting Feature	Overall Impedance	2nd Connector Mounting Type	1st Connector	1st Connector Mounting Feature	1st Contact Gender	Length	Length	Frequency - Max [Max]	Cable Type	Length
Amphenol Custom Cable Q-1T0110003.75M	Female	Black	Shielded	N-Type Jack	MCX to N-Type	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	MCX Jack	Bulkhead - Front Side Nut	Female	29.53 "	750 mm	6000 MHz	RG-174
Amphenol Custom Cable Q-1T0110005002M	Female	Copper	Shielded	N-Type Jack	MCX to N-Type	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	MCX Jack	Bulkhead - Front Side Nut	Female	78.7 in	2 m	6000 MHz	RG-316	6.6 ft
Amphenol Custom Cable Q-1T0110003108i	Female	Black	Shielded	N-Type Jack	MCX to N-Type	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	MCX Jack	Bulkhead - Front Side Nut	Female	108 in	2.7 m	6000 MHz	RG-174	9 ft
Amphenol Custom Cable Q-1T01100030.5M	Female	Black	Shielded	N-Type Jack	MCX to N-Type	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	MCX Jack	Bulkhead - Front Side Nut	Female	19.69 "	50 cm	6000 MHz	RG-174
Amphenol Custom Cable Q-1T0110003024i	Female	Black	Shielded	N-Type Jack	MCX to N-Type	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	MCX Jack	Bulkhead - Front Side Nut	Female	24 "	609.6 mm	6000 MHz	RG-174
Amphenol Custom Cable Q-1T0110005060i	Female	Copper	Shielded	N-Type Jack	MCX to N-Type	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	MCX Jack	Bulkhead - Front Side Nut	Female	5 '	1.5 m	6000 MHz	RG-316	5 ft
Amphenol Custom Cable Q-1T0110005003M	Female	Copper	Shielded	N-Type Jack	MCX to N-Type	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	MCX Jack	Bulkhead - Front Side Nut	Female	118.1 in	3 m	6000 MHz	RG-316	9.8 '
Amphenol Custom Cable Q-1T0110005012i	Female	Copper	Shielded	N-Type Jack	MCX to N-Type	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	MCX Jack	Bulkhead - Front Side Nut	Female	12 "	304.8 mm	6000 MHz	RG-316
Amphenol Custom Cable Q-1T0110005001M	Female	Copper	Shielded	N-Type Jack	MCX to N-Type	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	MCX Jack	Bulkhead - Front Side Nut	Female	39.4 in	1 m	6000 MHz	RG-316	3.3 ft
Amphenol Custom Cable Q-1T0110003002M	Female	Black	Shielded	N-Type Jack	MCX to N-Type	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	Panel Mount	MCX Jack	Bulkhead - Front Side Nut	Female	78.7 in	2 m	6000 MHz	RG-174	6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 96.75
		25	$ 90.18
		50	$ 83.60
		100	$ 77.97
		250	$ 73.28

Description

General part information

Q-1T0110 Series

Cable Assembly Coaxial MCX to N-Type RG-316 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
