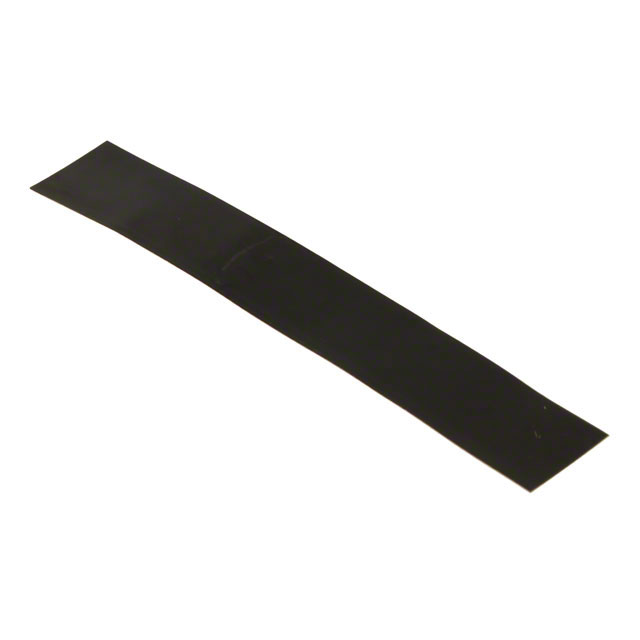

Specification	PH3N-76.2-12.7-0.07-1A

Attachment Method	Adhesive
Fin Height	0.003 in
Length	3 "
Material	Copper
Material Finish	Polyester
Package Cooled	ASIC...), BGA, ASIC, LGA, CPU, Assorted (BGA
Shape	Rectangular
Shelf Life	12 Months
Type	Heat Spreader
Width	12.7 mm

PH3N-76 Series

Part	Shelf Life	Type	Fin Height	Shape	Material Finish	Attachment Method	Length	Package Cooled	Width	Material
t-Global Technology PH3N-76.2-25.4-0.062-1A	12 Months	Heat Spreader	0.002 in	Rectangular	Polyester	Adhesive	3 "	ASIC ASIC...) Assorted (BGA BGA CPU LGA	1 in	Copper
t-Global Technology PH3N-76.2-12.7-0.07-1A	12 Months	Heat Spreader	0.003 in	Rectangular	Polyester	Adhesive	3 "	ASIC ASIC...) Assorted (BGA BGA CPU LGA	12.7 mm	Copper
t-Global Technology PH3N-76.2-19.1-0.07-1A	12 Months	Heat Spreader	0.003 in	Rectangular	Polyester	Adhesive	3 "	ASIC ASIC...) Assorted (BGA BGA CPU LGA	0.75 in	Copper
t-Global Technology PH3N-76.2-19.1-0.062-1A	12 Months	Heat Spreader	0.002 in	Rectangular	Polyester	Adhesive	3 "	ASIC ASIC...) Assorted (BGA BGA CPU LGA	0.75 in	Copper
t-Global Technology PH3N-76.2-25.4-0.07-1A	12 Months	Heat Spreader	0.003 in	Rectangular	Polyester	Adhesive	3 "	ASIC ASIC...) Assorted (BGA BGA CPU LGA	1 in	Copper
